Lens gear recommendation for the follow focus.

The place for questions about shooting with Blackmagic Cameras.
  • Author
  • Message
Offline

Dmitry Kitsov

  • Posts: 339
  • Joined: Fri Jan 25, 2013 8:47 pm
  • Location: Walnut Creek, Ca

Lens gear recommendation for the follow focus.

PostSat Mar 23, 2013 1:08 am

I have a set of old (60s - 70th) nikon lenses. I now got a redrockmicro micro follow focus. I am having a problem with lens gears that adapt the focusing ring for those with the follow focus system. They are having hard time staying put in place on the focusing ring of the lens as the ring is not a smooth one but an old fashioned one that looks somewhat scalloped (see picture). The lens gear tend to slip off.

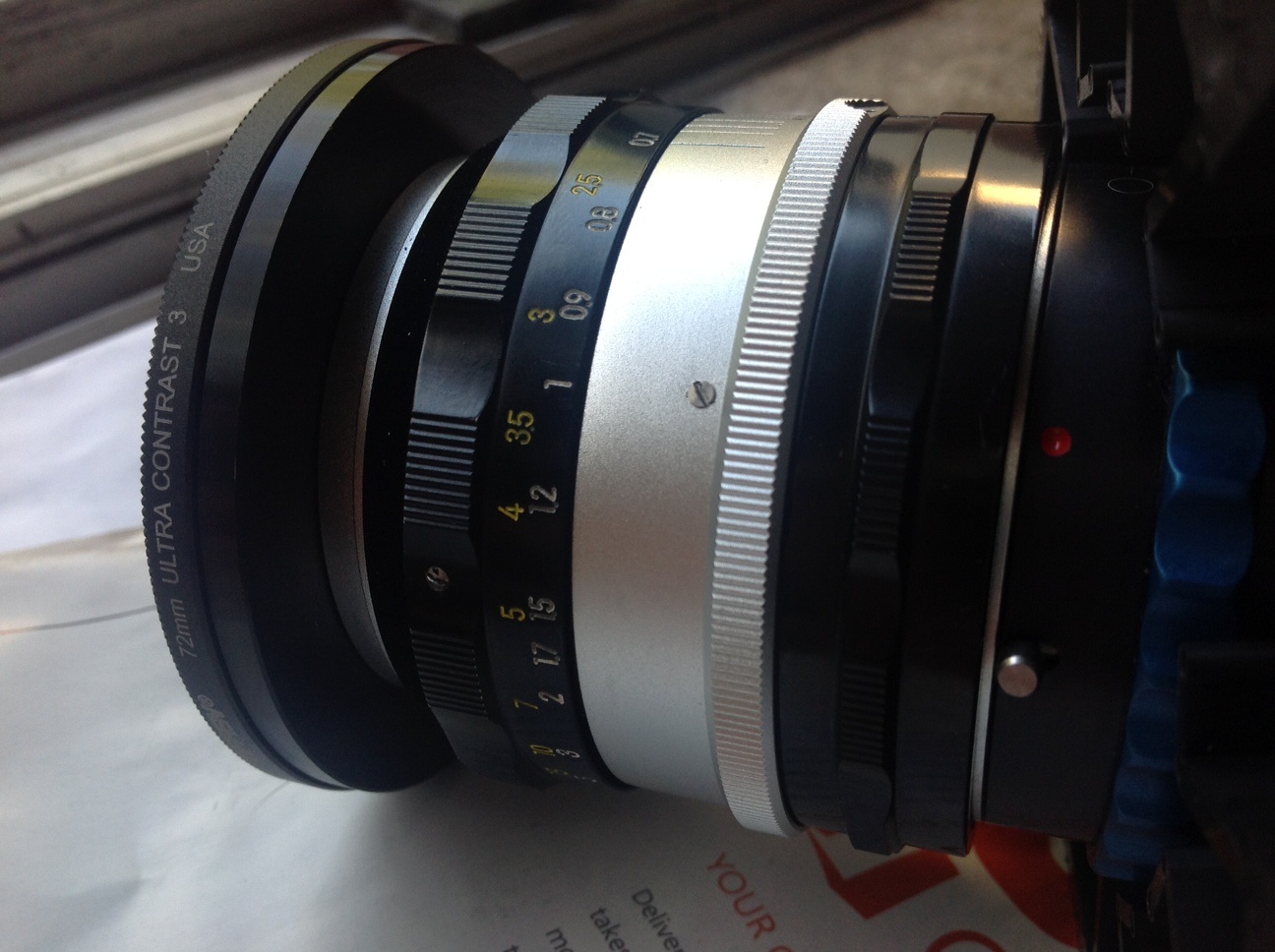

Detail of the focusing ring.




Has anyone worked with such old nikon lenses in a follow focus setup and how would one avoid such an issue?
Thank you.
Dmitry Kitsov
Offline

Darryl Gregory

  • Posts: 939
  • Joined: Sun Dec 16, 2012 2:49 am
  • Location: LA

Re: Lens gear recommendation for the follow focus.

PostSat Mar 23, 2013 2:20 am

Do those lenses have hard stop?
I have several brands of lens gears, For my zeiss 50mm makro lens I use a Cinevate gear,
I have zacuto gears also, half a dozen redrock gears and some zip gears.

http://store.zacuto.com/zipgear-univers ... -gear.html
Zacuto gears may work or cinevate

See if you can find a local supplier and check out the zacuto and Cinevate gears.
http://www.cinevate.com/catalog/product ... cts_id=156
Offline
User avatar

Benton Collins

  • Posts: 631
  • Joined: Wed Oct 24, 2012 3:03 am
  • Location: Brooklyn, New York

Re: Lens gear recommendation for the follow focus.

PostSat Mar 23, 2013 2:43 am

I have started using this type of lens gear belt and I really like them: http://www.ebay.com/itm/180721734710?ss ... 1439.l2649 They are narrow enough that it looks like you could mount one around where the distance markings are and avoid the wavy part all together, but one may work right over the wavy part to. They're cheap enough to give it a try. I used to use big clunky rings and now I'm using belts for all my lenses. The belts are also much better if you also use the lens on a still camera, you can keep the gear belt on the lens without it getting in the way too much.
Offline

Dmitry Kitsov

  • Posts: 339
  • Joined: Fri Jan 25, 2013 8:47 pm
  • Location: Walnut Creek, Ca

Re: Lens gear recommendation for the follow focus.

PostSat Mar 23, 2013 8:57 am

Thank you guys. Going to try the zippy things.
Dmitry Kitsov
