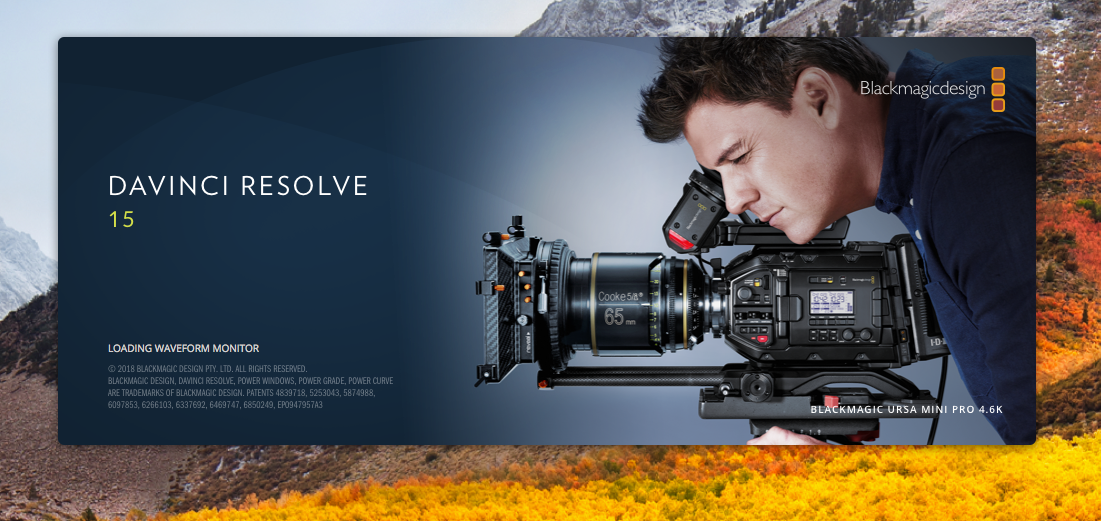

Updated.. Crashing at "Loading waveform Monitor"

PostTue May 02, 2017 6:02 pm

Hi,


After installations, uninstalled and reinstalled, registry cleaning
still can't get Resolve working on my PC,
pls anyone with solution?, it keep crashing at "loading wave form Monitor"
DR12.55 was so lovely and smooth on my system


My specs are Win10, 64 bit Pro,
GPU R9 295 x 2 8gb Amd,
Mother board asus x58 motherboard, rampage 111,
24 gig ram,SSD 480 sandisk 11
3x SSD Kingston 248 gb Hyper X
2x 1tb velociraptor hdd Raid 0 configuration,
Extreme 3 d BM video card, Samsung monitor P2770H
processor intel x990 3.47,
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue May 02, 2017 9:47 pm

In an Explorer window, run C:\Program Files\Blackmagic Design\DaVinci Resolve\CaptureLogs.bat and provide a link to the generated .zip logs file.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

Fred Larochelle

  • Posts: 6
  • Joined: Sun Oct 30, 2016 1:49 am

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue May 02, 2017 10:29 pm

Hi!
I have the same problem! Here is the log file :

https://drive.google.com/file/d/0B9-ynu ... sp=sharing

If you have any question, I will gladly answer :)
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue May 02, 2017 10:51 pm

Fred, what model and manufacturer for your PC?
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

Junior Ikenwa

  • Posts: 84
  • Joined: Sun Sep 16, 2012 4:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 8:38 am

Junior Ikenwa wrote:Hi,


After installations, uninstalled and reinstalled, registry cleaning
still can't get Resolve working on my PC,
pls anyone with solution?, it keep crashing at "loading wave form Monitor"
DR12.55 was so lovely and smooth on my system


My specs are Win10, 64 bit Pro,
GPU R9 295 x 2 8gb Amd,
Mother board asus x58 motherboard, rampage 111,
24 gig ram,SSD 480 sandisk 11
3x SSD Kingston 248 gb Hyper X
2x 1tb velociraptor hdd Raid 0 configuration,
Extreme 3 d BM video card, Samsung monitor P2770H
processor intel x990 3.47,



here is the link
Crash log

https://drive.google.com/file/d/0BxLMwl ... sp=sharing

https://drive.google.com/file/d/0BxLMwl ... sp=sharing
Offline

Fred Larochelle

  • Posts: 6
  • Joined: Sun Oct 30, 2016 1:49 am

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 12:14 pm

It is a chinese laptop... Cube I7 Book. Running an Intel Core m3-6y30 with Intel 515 graphics and 4 gb of ram.

I know, it is a bit under powered, but with his internal ssd and an external ssd (plug in the usb c port) I was perfectly able to edit 1080p (I some heavy grading too) using proxy in Resolve 12.5.

It was even a bit smoother than my full fledge desktop (running an i7 with 16gb of ram) since my destop is still using an internal hdd.
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 5:52 pm

The issue in both cases is that Resolve sees 2 GPU's and it's crashing when it tries to initialize the second GPU.

For Junior, please remove one of the AMD GPU cards, as a test, and see if Resolve will run properly with a single GPU.

For Fred, your system has CPU integrated Intel HD graphics. I'm not sure why Resolve would be seeing 2 HD515 GPU's in that case. But it does, and it's crashing when it tries to initialize the second one. Can you run System Information, and save the .NFO file and link to that? I'm curious to see what it shows as detected GPUs. If, by chance, there really are 2 HD515's somehow, and your BIOS can disable one of them, that would be worth trying.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline
User avatar

Miltos Pilalitos

  • Posts: 294
  • Joined: Wed Nov 12, 2014 12:42 am
  • Location: Athens, Greece

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 8:13 pm

DR 14 Studio crashes at "loading wavefrom Monitor" as well but in a strange way... DR 14 (Non Studio) loads without a problem!

I am using two GPUs as well so maybe something is going on there.

I just uninstalled everything and reinstalled 12.5 Studio because i need it for work. I hope the next beta of DR 14 Studio will run like DR 14 free version does. :)
Windows 10 x64 • Threadripper 1950x • 64GB RAM
1080Ti 11GB • Latest Nvidia drivers
Fusioneer since Fu4.0
Resolver since v9
Offline

Fred Larochelle

  • Posts: 6
  • Joined: Sun Oct 30, 2016 1:49 am

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 9:34 pm

Here is the NFO file :
https://drive.google.com/file/d/0B9-ynu ... sp=sharing

I just saw, that I called the folder .INO my mistake... I should have called it .NFO!
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 9:58 pm

@Miltos: Since non-Studio Resolve would only initialize 1 GPU, that seems very likely that the 2nd GPU is causing the issue. Can you give us additional detail on your system specifics?

@Fred: the NFO only shows a single HD515 device, which makes total sense and would be expected. So I don't know why Resolve thinks it sees 2 OpenCL devices. Hopefully the development folks can work this out. In the meantime, if you'd like to install non-Studio Resolve, I'll bet it will work for you, same as it did for Miltos.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

Junior Ikenwa

  • Posts: 84
  • Joined: Sun Sep 16, 2012 4:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 10:01 pm

Dwaine Maggart wrote:The issue in both cases is that Resolve sees 2 GPU's and it's crashing when it tries to initialize the second GPU.

For Junior, please remove one of the AMD GPU cards, as a test, and see if Resolve will run properly with a single GPU.

For Fred, your system has CPU integrated Intel HD graphics. I'm not sure why Resolve would be seeing 2 HD515 GPU's in that case. But it does, and it's crashing when it tries to initialize the second one. Can you run System Information, and save the .NFO file and link to that? I'm curious to see what it shows as detected GPUs. If, by chance, there really are 2 HD515's somehow, and your BIOS can disable one of them, that would be worth trying.


Thank for your help.
The Gpu was acutally a single gpu with dual processor
I dont know if it is adviceable to disable one. That means DR 14 didnt recognise the crossfire. hope update will improve that. DR12.55 Does recognised it and ran smoothly. I reinstalled 12.5 and it was ok but my project was affected badly . Doesnt run smoothly. Thank you
Attachments
Offline
User avatar

Miltos Pilalitos

  • Posts: 294
  • Joined: Wed Nov 12, 2014 12:42 am
  • Location: Athens, Greece

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 03, 2017 10:49 pm

Dwaine Maggart wrote:@Miltos: Since non-Studio Resolve would only initialize 1 GPU, that seems very likely that the 2nd GPU is causing the issue. Can you give us additional detail on your system specifics?


Yes of course Dwaine,

My system is running Win7 x64 SP1 on an Intel Core i7 Extreme 975 and 24GB of RAM.
MoBo is a Gigabyte X58A-UD7 (Intel Chipset)
GPU 01 is: Nvidia GeForce GTX 770 (4GB)
GPU 02 is: Nvidia GeForce GTX 1070 (8GB)

Everything is updated with the latest drivers/Bios/Firmware.
Windows 10 x64 • Threadripper 1950x • 64GB RAM
1080Ti 11GB • Latest Nvidia drivers
Fusioneer since Fu4.0
Resolver since v9
Offline

Fred Larochelle

  • Posts: 6
  • Joined: Sun Oct 30, 2016 1:49 am

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu May 04, 2017 12:07 am

@ Dwayne Actually, I am trying to run the non-studio version... The 12.5.5 non-studio is working flawlessly... That means that the problem is related with Davinci Resolve 14... Hope the developers will be able to fix it!

P.S. I might be wrong, I am not sure... In 12.5, I think that in the settings I was seeing two 515 gpu... At the time I think I found it strange. But as I said, I am not sure... To be sure, I am reinstalling 12.5.5 to verify. Will keep you up to date!
Offline

Fred Larochelle

  • Posts: 6
  • Joined: Sun Oct 30, 2016 1:49 am

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu May 04, 2017 12:17 am

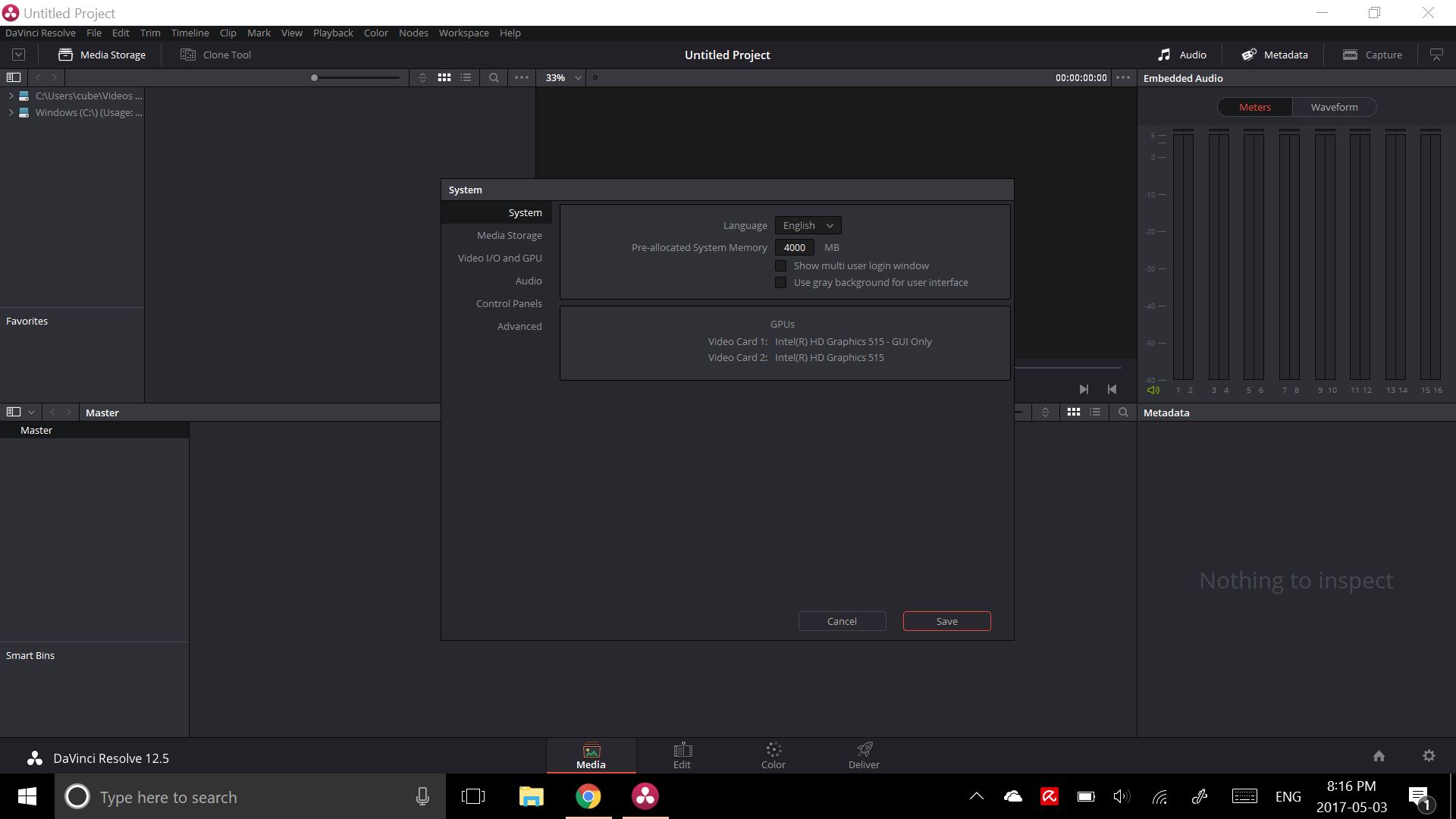

I was right! Davinci Resolve 12.5.5 detects two 515 gpu :
Offline

Junior Ikenwa

  • Posts: 84
  • Joined: Sun Sep 16, 2012 4:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 10, 2017 3:47 pm

Junior Ikenwa wrote:Hi,


After installations, uninstalled and reinstalled, registry cleaning
still can't get Resolve working on my PC,
pls anyone with solution?, it keep crashing at "loading wave form Monitor"
DR12.55 was so lovely and smooth on my system


My specs are Win10, 64 bit Pro,
GPU R9 295 x 2 8gb Amd,
Mother board asus x58 motherboard, rampage 111,
24 gig ram,SSD 480 sandisk 11
3x SSD Kingston 248 gb Hyper X
2x 1tb velociraptor hdd Raid 0 configuration,
Extreme 3 d BM video card, Samsung monitor P2770H
processor intel x990 3.47,


Hi,
After installation, DR14 Beta 2 can now open on my system, but still struggling with
smooth play back at edit page (timeline) ,But I'm still playing around with the settings to
find the solution, colour page and media page does play smoothly,



Thanks BMD Team for listening to us
Last edited by Junior Ikenwa on Wed May 10, 2017 6:34 pm, edited 1 time in total.
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed May 10, 2017 5:37 pm

@Fred Larochelle - Try the Beta 2 update that was posted on the web site today. Should take care of the issue.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

Roger Singh

  • Posts: 51
  • Joined: Thu Aug 06, 2015 4:56 am

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu May 11, 2017 2:25 am

Hi,

I am having the same issue too. DR14 beta 2 crashing during the splash screen. I didn't try Beta 1

Here's my log zip.

https://drive.google.com/a/rogersingh.c ... sp=sharing
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu May 11, 2017 2:49 am

Uninstall 14, reinstall 12.5.5.

In the Resolve Database Manager window, make a new database. Then select that database.

Don't create a project in the new database.

Now install 14b2 again and see if it will launch.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline
User avatar

Miltos Pilalitos

  • Posts: 294
  • Joined: Wed Nov 12, 2014 12:42 am
  • Location: Athens, Greece

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu May 11, 2017 3:03 am

The problem i had with the first Beta (2 GPUs) is fixed now.

DR Studio b2 is starting now. :)

Finally i can start beta testing!
Windows 10 x64 • Threadripper 1950x • 64GB RAM
1080Ti 11GB • Latest Nvidia drivers
Fusioneer since Fu4.0
Resolver since v9
Offline

Junior Ikenwa

  • Posts: 84
  • Joined: Sun Sep 16, 2012 4:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu May 11, 2017 8:12 pm

Junior Ikenwa wrote:
Junior Ikenwa wrote:Hi,


My specs are Win10, 64 bit Pro,
GPU R9 295 x 2 8gb Amd,
Mother board asus x58 motherboard, rampage 111,
24 gig ram,SSD 480 sandisk 11
3x SSD Kingston 248 gb Hyper X
2x 1tb velociraptor hdd Raid 0 configuration,
Extreme 3 d BM video card, Samsung monitor P2770H
processor intel x990 3.47,


Hi,
After installation, DR14 Beta 2 can now open on my system, but still struggling with
smooth play back at edit page (timeline) ,But I'm still playing around with the settings to
find the solution, colour page and media page does play smoothly,



Thanks BMD Team for listening to us





Hi,
Still struggling with my playback, stuttering at timeline during playback, sometime
hang, but at colour Page it play smoothly, media page sometime play smoothly sometime
hang, at delivery page it plays very smooth , please advice

Junior,
Offline

Eddie Barton

  • Posts: 31
  • Joined: Fri Aug 24, 2012 3:48 am
  • Location: Fairfield, CA, USA

Re: DR 14 Crashing at "Loading waveform Monitor"

PostFri Jun 09, 2017 4:36 pm

I had a similar problem to this. But even b3 didn't solve it. Nothing I tried worked, moving config.dat, creating new database, even nuking all of Resolve from my computer with projects and databases. In order to get it to open, I had to disable my iGPU completely and use my discrete card only. Which brings some issues of its own with the recent AMD card issues.

I can provide logs if needed.

Win 10 Pro
i7-3770K
SAPPHIRE Vapor-X R9-290X 8GB
Radeon Software 17.4.4
Offline

Michael Jacobs

  • Posts: 2
  • Joined: Wed Jun 21, 2017 7:05 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed Jun 21, 2017 7:16 pm

Is there any definitive way to fix this yet? I'm having exactly the same issue. It installs perfectly fine but it fails on started at the Loading waveform monitor. So far i have tried all the beta releases including the latest b4 version but still no luck. I also did the new database fix as suggest but to no avail. I can install and run 12.5 fine. I'm on windows7
Offline
User avatar

markdescande

  • Posts: 1
  • Joined: Tue Jun 20, 2017 1:47 pm
  • Location: South Africa

Re: DR 14 Crashing at "Loading waveform Monitor"

PostMon Aug 14, 2017 9:15 pm

Hello There Dwaine Maggart

I am brand new at the game of editing and even computers
I had a read trough this whole tread and there is just no way i can get DaVinci Resolve "14DaVinci_Resolve_14.0b6_Windows" to run on my Laptop Dell Inspiron
dell.com/en-us/shop/productdetails/inspiron-1525

I can run 12 "DaVinci_Resolve_12.5.6_Windows" without any problem..

I did make a new DB as you suggested, still no luck i in fact made 3 db just to make sure i did it correctly and still no luck 14 just dont want to start :(

Here the the file that you have asked for
https://drive.google.com/open?id=0BwmBi ... 3F5clg0Tzg

Please see if you can help out with this bug ... if you need any info just ask

Again Thank you for all the help on the forums

Mark de Scande


Dwaine Maggart wrote:Fred, what model and manufacturer for your PC?
Thank you Kindly
Mark de Scande
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Aug 15, 2017 12:53 am

@Mark: You appear to have created your new DB14 database in the same path as the original database. That likely means its still seeing your original projects.

Put 12.5 back in, make a new Disk database in a path other than C\ProgramData\Blackmagic Design\DaVinci Resolve\Support\Resolve Disk Database.

Try somewhere like your user Documents folder, or somewhere like that.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

Edgar Behar

  • Posts: 1
  • Joined: Sat Oct 14, 2017 1:23 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostSat Oct 14, 2017 2:09 pm

Hi,

I am new to Da vinci, and would like to try the free version (14) before to buy it.
I have the same issue : the program keeps crashing at launching the "waveform monitor".
I tried the software on two different computer and i have the same problem. (for computer 2 the program crash earlier at launching "looking for control surface"

Computer 1 : Antec
- Windows 10 Pro 64 bits
- Intel Hd graphics 530
- Intel core i5 6400 (quadcore) 2.7 ghz
- RAM 8 GO

Computer 2 : Gygabite
- Windows 10 Pro 64 bits
- Nvidia geforce GTX 1070
- i7-7700 HQ
- RAM 16 GO


Here is the log for computer 1 :
https://drive.google.com/open?id=0BxsSX ... UJoVlpCcms

Here is the log for computer 2 :
https://drive.google.com/open?id=0BxsSX ... mZLVFJULXM

Thank you

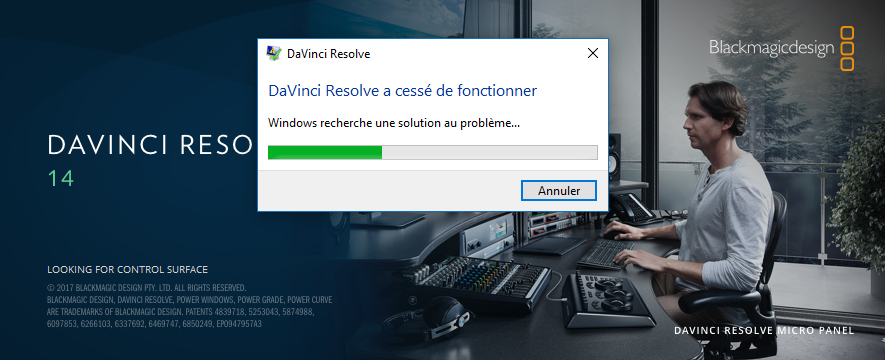

screenshot computer 2.jpg
screenshot computer 2
screenshot computer 2.jpg (204.52 KiB) Viewed 9613 times
Offline

MHW1444

  • Posts: 3
  • Joined: Tue Oct 09, 2018 2:36 pm
  • Real Name: Mark Wolfgramme

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Oct 09, 2018 2:52 pm

Hi
Also experiencing crash when opening dialog says "Loading waveform Monitor" immediate after installing. Have also rebooted after an install. Tried version 14 and 12 - same issue with 14, 12 keeps crashing when trying to load media.

Logs at this URL (until Oct 16 2018) as per ""In an Explorer window, run C:\Program Files\Blackmagic Design\DaVinci Resolve\CaptureLogs.bat and provide a link to the generated .zip logs file.:
https://we.tl/t-ThVbuNmxP5

Version: DR 15.1.1
Intel i5-3320M
Intel HD Graphics 4000
Win 7 Ultimate 64bit
16GB

Hope someone can assist.
Thanks
Mark
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Oct 09, 2018 5:21 pm

We don't support Win7. We don't support HD4000 graphics.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

MHW1444

  • Posts: 3
  • Joined: Tue Oct 09, 2018 2:36 pm
  • Real Name: Mark Wolfgramme

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Oct 09, 2018 5:44 pm

Oh!
That Windows 10 icon on the download button was too subtle for me.
Offline

MHW1444

  • Posts: 3
  • Joined: Tue Oct 09, 2018 2:36 pm
  • Real Name: Mark Wolfgramme

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Oct 09, 2018 5:49 pm

Sorry...
... and why did the the installer appear to be successful.
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Oct 09, 2018 10:30 pm

Because the installer does not care. It will happily install it. It might even work, to some degree, on some systems. But if it doesn't work, we can't help with that.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

AmBuLanCe

  • Posts: 3
  • Joined: Thu Jan 03, 2019 6:21 pm
  • Real Name: Ronny Besser

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 03, 2019 6:32 pm

i got the same problem. it just crashes on "loading waveform monitor"
i have an amd ryzen 5 1600x @ 4GHZ
2* G.Skill DIMM 8GB DDR4-2133
Asus Prime X370-PRO
AMD RX 590 FATBOY
windows 10 ver 1809
all drivers are up to date

i tried reinstalling but it didn't help if someone has some idea why it's not working let me now :)
Attachments
DaVinci-Resolve-logs-_191419,99.zip
the logs i forgot :)
(520.49 KiB) Downloaded 31 times
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 03, 2019 11:16 pm

Please run Windows System Information, do a File - Save and provide a link to the .NFO file it generates.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

Ben Carson

  • Posts: 5
  • Joined: Sat Jan 05, 2019 11:38 pm
  • Real Name: Ben Carson

Re: DR 14 Crashing at "Loading waveform Monitor"

PostSat Jan 05, 2019 11:43 pm

Hey guys, I too have the same problem, but with DR 15. It worked fine for a few days, but then it's starting to crash at 0Loading Waveform Monitor". Before this happens, I updated my AMD and Intel drivers.

Here is a link to the log file: https://drive.google.com/open?id=1ijKVb ... N_QxSK5Q2Z

Here is my Windows System Information: https://drive.google.com/open?id=195Hgl ... 8OTPCwwvWL
Last edited by Ben Carson on Thu Jan 10, 2019 12:59 pm, edited 1 time in total.
Offline

Ben Carson

  • Posts: 5
  • Joined: Sat Jan 05, 2019 11:38 pm
  • Real Name: Ben Carson

Re: DR 14 Crashing at "Loading waveform Monitor"

PostSat Jan 05, 2019 11:53 pm

Here is my Windows System Information: https://drive.google.com/open?id=195Hgl ... 8OTPCwwvWL
Offline

AmBuLanCe

  • Posts: 3
  • Joined: Thu Jan 03, 2019 6:21 pm
  • Real Name: Ronny Besser

Re: DR 14 Crashing at "Loading waveform Monitor"

PostSun Jan 06, 2019 2:15 pm

sorry for my late answering here is the file you asked for: https://drive.google.com/file/d/1137fJO ... sp=sharing
Offline

Ru Cook

  • Posts: 44
  • Joined: Sun Mar 23, 2014 2:01 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostMon Jan 07, 2019 9:48 pm

DR15 (latest version) is freezing at 'Loading waveform monitor' on my Mac now...

Any ideas?
Attachments
Screen Shot 2019-01-07 at 21.43.39.png
Screen Shot 2019-01-07 at 21.43.39.png (905.91 KiB) Viewed 5927 times
Offline

j2mugs

  • Posts: 2
  • Joined: Tue Jan 08, 2019 9:58 am
  • Real Name: Jeremy Doublestein

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Jan 08, 2019 10:02 am

I too am having the same problem on Windows 10 with DR 15. I actually formatted my hard drive and did a clean install and it did not fix the problem. I've tried disabling the Intel HD 3000 and that did not have any effect either.

System Info: https://drive.google.com/file/d/1OchRwc ... sp=sharing
Crash Logs: https://drive.google.com/file/d/1IdqcVT ... sp=sharing

Thanks so much!
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 17, 2019 1:26 am

@ Ben & Ronny & ANYONE else having issues with AMD Radeon series GPUs in Resolve after installing Adrenaline (or any version) drivers, I would recommend the following:

Install the current version of Display Driver Uninstaller, AKA DDU, from here:

https://www.wagnardsoft.com/

Uninstall the current AMD driver, whatever it is, and install the Crimson 17.11.4 driver here:

https://www.amd.com/en/support/kb/relea ... in-17-11-4

Please let us know your results.
Last edited by Dwaine Maggart on Thu Jan 17, 2019 1:53 am, edited 1 time in total.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 17, 2019 1:32 am

@Jeremy: Google is not allowing access to your files.

@Ru: We need more info about your system, including Resolve logs, OS version and hardware, in particular the GPU info. And are you using Apple App Store version, or a version downloaded from the BMD Resolve Support area?
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

AmBuLanCe

  • Posts: 3
  • Joined: Thu Jan 03, 2019 6:21 pm
  • Real Name: Ronny Besser

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 17, 2019 2:01 pm

downgrading to the version "Adrenalin 2019 Edition 18.12.2" fix it for me (luckily) because it's the first driver version compatible to the rx 590.
thanks for the help :)
Offline

j2mugs

  • Posts: 2
  • Joined: Tue Jan 08, 2019 9:58 am
  • Real Name: Jeremy Doublestein

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 17, 2019 3:18 pm

@Dwaine - Thanks so much for looking into this and the tips above - I'll give it a shot. I updated the sharing settings for my links. Sorry about that.

https://drive.google.com/file/d/1OchRwc ... sp=sharing
https://drive.google.com/file/d/1IdqcVT ... sp=sharing
Offline

HerrStadt

  • Posts: 1
  • Joined: Thu Jan 17, 2019 8:05 pm
  • Real Name: Tamas Varosi

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 17, 2019 8:17 pm

AmBuLanCe wrote:downgrading to the version "Adrenalin 2019 Edition 18.12.2" fix it for me (luckily) because it's the first driver version compatible to the rx 590.
thanks for the help :)

I had the same problem ("Loading waveform Monitor") with DR15.2.2. on win10 with RX590 card.
After downgrading Adrenalin, problem disappeared so seems the problem is with new driver (19.1.1).
Offline

Ben Carson

  • Posts: 5
  • Joined: Sat Jan 05, 2019 11:38 pm
  • Real Name: Ben Carson

Re: DR 14 Crashing at "Loading waveform Monitor"

PostSun Jan 27, 2019 1:56 am

Dwaine Maggart wrote:@ Ben & Ronny & ANYONE else having issues with AMD Radeon series GPUs in Resolve after installing Adrenaline (or any version) drivers, I would recommend the following:

Install the current version of Display Driver Uninstaller, AKA DDU, from here:

Uninstall the current AMD driver, whatever it is, and install the Crimson 17.11.4 driver here:

Please let us know your results.


Installed the driver you suggested, the problem is solved. Thank you so much for the great service. Blackmagicdesign is lucky to have you.
Offline

Ben Carson

  • Posts: 5
  • Joined: Sat Jan 05, 2019 11:38 pm
  • Real Name: Ben Carson

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Jan 29, 2019 1:09 pm

Davinci 15 works fine now with AMD Crimson Relive 17.11.4, but AMD suggested me to upgrade to 19.1. Does it still work after the upgrade?
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed Jan 30, 2019 7:46 pm

Let us know.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline

nbamax

  • Posts: 2
  • Joined: Thu Jan 31, 2019 7:01 pm
  • Real Name: Max Weigang

Re: DR 14 Crashing at "Loading waveform Monitor"

PostThu Jan 31, 2019 7:07 pm

Hello Mr Maggart,

just to let you know.
Im Stuck on Startup under "Loading Waveform Monitor".

Resolve 15.2.2.7
AMD RX 590 - Driver Version 19.1.1 (recommended Version today)
Offline
User avatar

Jerry Suppan

  • Posts: 27
  • Joined: Sun Mar 06, 2016 12:52 am
  • Location: Tokyo, Japan

Re: DR 14 Crashing at "Loading waveform Monitor"

PostTue Feb 05, 2019 10:15 pm

I also have AMD RX590 driver version 19.2.1 (latest 2019-02-04 I think) and having the same problem. Actually I have it as an eGPU in a Akitio Node case. But that aside, as described below, I experience the same situation Intel's Hades Canyon which also contains a discrete graphics processor.

I already brought this issue of hanging at 'loading waveform monitor' to the attention of Peter Chamberlain in another related post on forums here, but it might be worthwhile repeating here since it is a related issue and also to bring to the attentijon of Dwaine Maggart as well.

QUOTE

Well, frankly, I am having that exact same problem, disappointingly and sorry to say, as I want to standardize on Davinci Resolve. But with a reliability that it may work one day and then subsequent to a new upgrade, or graphics driver, or whatever, it won't work is a reliability I can not contend with when in the middle of the project. If you recall, on more then one occasion I suggested making a basic, intermediate, and advance level of Resolve for new users. That might very well carry over to the level of complexity and system demands too so that if an advanced level of Resolve is too demanding, at least a user can backtrack to intermediate or basic level of system demands to still be able to be productive. But I don't see that becoming a reality any time soon if it ever happens.

So with the 'loading waveform monitor' issue, I spend more time trying to figure out a resolution to the problem rather then being truly productive. Troubleshooting, the auto mechanic so to speak. I've uninstalled and reinstalled more then once for sure. Oh, and BTW, I DO have a more modern machine. Intel's Hades Canyon Core i7 released around mid 2018 with the AMD discrete graphics chip. My drivers are all up-to-date too through Intel's Driver & Support Assistant.
https://www.intel.com/content/www/us/en ... stant.html
It sniffs out my entire system online and if there are components that need updating, Intel allows me to download and automatically update as necessary.

So, although Brantley's situation might be needing a more modern computer that surely is not my case. I reckon then, until the problem eventually goes away, if it goes away, I need to carry on with another tool, i.e., Shotcut, etc., which, BTW, loads with no problem and quite quickly too.
FYI, am running, (frustratingly trying to) Resolve 15.2.3, the latest.
END QUOTE
Jerry S.
Tokyo, Japan
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed Feb 06, 2019 4:37 am

Assuming you have a Windows system:

In a File Explorer window, go to:

C:\Program Files\Blackmagic Design\DaVinci Resolve

and run CaptureLogs

Then open Windows System Information and do a File - Save (Not a File Export), which will generate a .NFO file.

Place both those files on a file sharing site and provide links to the files here.
Dwaine Maggart
Blackmagic Design DaVinci Support
Offline
User avatar

Jerry Suppan

  • Posts: 27
  • Joined: Sun Mar 06, 2016 12:52 am
  • Location: Tokyo, Japan

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed Feb 06, 2019 5:36 am

Hi Dwaine,

I have done as you instructed. The file saved as a .zip. (>500K) Here is a link to the file on Google Drive.

https://drive.google.com/open?id=1BC23j ... vH8o3LK7iG

Thanks.
Jerry
Jerry S.
Tokyo, Japan
Offline
User avatar

Dwaine Maggart

Blackmagic Design

  • Posts: 5500
  • Joined: Wed Aug 22, 2012 2:53 pm

Re: DR 14 Crashing at "Loading waveform Monitor"

PostWed Feb 06, 2019 5:45 am

Can we get the Windows System Information .NFO file?
Dwaine Maggart
Blackmagic Design DaVinci Support
Next

Return to DaVinci Resolve

Who is online

Users browsing this forum: No registered users and 69 guests
