Need to be Able Increase/Decrease the Audio Waveform Height

PostMon Sep 25, 2017 5:43 pm

We need to be able adjust the display size of audio waveforms. Avid Media Composer has an option to increase/decrease the display height of audio waveforms (this does not adjust the gain). This is a needed feature in Resolve.

In the example below I'm trying to cut in the close up in the source monitor, but I only want video because I want to continue to use the audio in track "A1 Both". This means I need to match the audio in the source viewer exactly to the audio in the timeline. It is neigh impossible to do so with such small waveforms on the timeline.

Thank you for your help.
Attachments
Audio Waveform Display Height Need to be Adjustable
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline
User avatar

rick.lang

  • Posts: 17156
  • Joined: Wed Aug 22, 2012 5:41 pm
  • Location: Victoria BC Canada

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostMon Sep 25, 2017 6:41 pm

May not help, but the Fairlight page allows you to easily increase and decrease the height of all audio tracks with the slider.


Sent from my iPhone using Tapatalk
Rick Lang
Offline

Reynaud Venter

  • Posts: 4893
  • Joined: Sun May 28, 2017 9:34 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostMon Sep 25, 2017 6:54 pm

An equivalent to the Fairlight page's “Show Full Waveforms” option is perhaps necessary on the Edit page.
⟦ Mac Pro 7,1 Rack ⊕ 16-core 3.2GHz ⊕ 32GB RAM ⊕ Radeon 580X • Resolve Studio 18.6.5 • macOS 14.3.1 ⟧
⟦ Fairlight Studio Console ⊕ Fairlight Audio Accelerator ⊕ Merging Hapi • Anubis • Ravenna CoreAudio VAD ⟧
Offline
User avatar

Jack Swart

  • Posts: 769
  • Joined: Fri Aug 15, 2014 8:09 pm
  • Location: Sydney, Australia

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostMon Sep 25, 2017 7:40 pm

Agreed. The meters show the levels of the track well enough without the waveform changing height as well. it is like the timeline thumbnails disappearing if your drop the opacity of the clip.
Last edited by Jack Swart on Mon Sep 25, 2017 11:24 pm, edited 1 time in total.
DR Studio 18.6.3 b19, OS 13.2.1
2023 Mac Studio M1 Ultra, 20 core CPU, 48 core GPU, 128 GB ram
BM 3G ultra studio, 12TB SSDs in raid 0, 16TB HDD backup, 56TB archive server.
Tangent Elements panel, TV logic XVW-245W
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostMon Sep 25, 2017 10:15 pm

What we need is the ability to resize the waveforms independently of resizing the track height.
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline

Michael Tiemann

  • Posts: 683
  • Joined: Fri Jul 05, 2013 11:22 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostMon Sep 25, 2017 10:20 pm

PeterMoretti wrote:What we need is the ability to resize the waveforms independently of resizing the track height.


+1
MacOS Catalina Version 10.15.7
iMac Pro (2017)
3 GHz Intel Xeon W
64GB 2666 MHz DDR4
Radeon Pro Vega 64 16 GB
RED Rocket-X
Decklink 8K Pro card feeding FSI XM310K Monitor
Offline

Reynaud Venter

  • Posts: 4893
  • Joined: Sun May 28, 2017 9:34 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 5:45 am

PeterMoretti wrote:What we need is the ability to resize the waveforms independently of resizing the track height.
Which is what the Fairlight page's “Show Full Waveforms” option provides.
⟦ Mac Pro 7,1 Rack ⊕ 16-core 3.2GHz ⊕ 32GB RAM ⊕ Radeon 580X • Resolve Studio 18.6.5 • macOS 14.3.1 ⟧
⟦ Fairlight Studio Console ⊕ Fairlight Audio Accelerator ⊕ Merging Hapi • Anubis • Ravenna CoreAudio VAD ⟧
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 7:14 am

Reynaud,

I do appreciate your help. But even if Show Full Waveforms provided the functionality I feel is sorely needed, it's most sorely needed on the Edit Page, where I'm trying to cut picture to audio.

That said, I don't see how Show Full Waveforms allows one to independently resize the waveforms on the Fairlight Page. What it does seem to do is expand the area available for waveform display to include the bottom area where the clip names are.

If there is a way for me to choose how big or small I want the waveforms to be on the Fairlight Page by enabling Show Full Waveforms, I'm all ears, so to speak.
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline

Peter Chamberlain

Blackmagic Design

  • Posts: 13852
  • Joined: Wed Aug 22, 2012 7:08 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 7:18 am

I'm familiar with the requirement and its in our consideration list..long list I'm afraid.
DaVinci Resolve Product Manager
Offline
User avatar

Jack Swart

  • Posts: 769
  • Joined: Fri Aug 15, 2014 8:09 pm
  • Location: Sydney, Australia

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 7:23 am

Thank you Peter. DR14 studio rocks.

Colleague is off-lining a feature on his DR14 with 2K ProRes proxies(generated by my DR14 with logs) and we will assemble and grade on my machine in the original 4K XAVC 480. Tests show we will be fine on my hardware.

Thanks again for great code.
DR Studio 18.6.3 b19, OS 13.2.1
2023 Mac Studio M1 Ultra, 20 core CPU, 48 core GPU, 128 GB ram
BM 3G ultra studio, 12TB SSDs in raid 0, 16TB HDD backup, 56TB archive server.
Tangent Elements panel, TV logic XVW-245W
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 7:25 am

Peter Chamberlain wrote:I'm familiar with the requirement and its in our consideration list..long list I'm afraid.

I'm sure it is, lol, *followed by tears for the BMD team*
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline

Reynaud Venter

  • Posts: 4893
  • Joined: Sun May 28, 2017 9:34 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 8:01 am

PeterMoretti wrote:If there is a way for me to choose how big or small I want the waveforms to be on the Fairlight Page by enabling Show Full Waveforms
The “Show Full Waveforms” option is a global single waveform height preference, so not dynamic in the way I think you require (such as the ProTools waveform density adjustment, for example).

But, for audio clips with low signal levels, the “Show Full Waveforms” does improve the resolution of the waveform display for editing, short of having to constantly increase and decrease track height.

I do, however, prefer the soundBlade workstation implementation of dynamic waveforms over the ProTools implementation, where soundBlade provides an “Auto Scale” Preferences where the maximum peak is represented at Full Scale (i.e. amplitude scaling) globally for all audio clips on the timeline, or with the “Scale To View” preference, the waveform representation in the zoomed area of an audio clip is represented at Full Scale (i.e. “local” magnification).

Both preferences are extremely useful for editing and restoration work which allows waveform density to be adjusted dynamically according to action.
⟦ Mac Pro 7,1 Rack ⊕ 16-core 3.2GHz ⊕ 32GB RAM ⊕ Radeon 580X • Resolve Studio 18.6.5 • macOS 14.3.1 ⟧
⟦ Fairlight Studio Console ⊕ Fairlight Audio Accelerator ⊕ Merging Hapi • Anubis • Ravenna CoreAudio VAD ⟧
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 6:50 pm

PeterMoretti wrote:
Peter Chamberlain wrote:I'm familiar with the requirement and its in our consideration list..long list I'm afraid.

I'm sure it is, lol, *followed by tears for the BMD team*


I have to say that I really hope this becomes a priority. I know you guys have tons of priorities. But this is turning into a nightmare. What would have taken me about twenty minutes in Media Composer is taking me all morning. There are many times when we need to be able to see the waveforms to edit effectively.
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Sep 26, 2017 8:35 pm

Reynaud Venter wrote:...
I do, however, prefer the soundBlade workstation implementation of dynamic waveforms over the ProTools implementation, where soundBlade provides an “Auto Scale” Preferences where the maximum peak is represented at Full Scale (i.e. amplitude scaling) globally for all audio clips on the timeline, or with the “Scale To View” preference, the waveform representation in the zoomed area of an audio clip is represented at Full Scale (i.e. “local” magnification).

Both preferences are extremely useful for editing and restoration work which allows waveform density to be adjusted dynamically according to action.

Thanks, those sound like a great way to handle waveforms.

I also have to say that waveform display in the source viewer is going to need the same ability to scale the waveforms.
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline
User avatar

Marc Wielage

  • Posts: 10852
  • Joined: Fri Oct 18, 2013 2:46 am
  • Location: Hollywood, USA

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostWed Sep 27, 2017 2:26 am

This is an artist's rendition of Peter with the "Resolve Feature List":

marc wielage, csi • VP/color & workflow • chroma | hollywood
Offline

Peter Chamberlain

Blackmagic Design

  • Posts: 13852
  • Joined: Wed Aug 22, 2012 7:08 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostWed Sep 27, 2017 2:31 am

Looks a bit short Marc.
DaVinci Resolve Product Manager
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostWed Sep 27, 2017 2:47 am

LOL!! Good fun at my expense is always welcome. :D

And of course you both are very much appreciated by me :P
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline
User avatar

Jack Swart

  • Posts: 769
  • Joined: Fri Aug 15, 2014 8:09 pm
  • Location: Sydney, Australia

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostWed Sep 27, 2017 3:59 am

And Marc's list is double sided......
DR Studio 18.6.3 b19, OS 13.2.1
2023 Mac Studio M1 Ultra, 20 core CPU, 48 core GPU, 128 GB ram
BM 3G ultra studio, 12TB SSDs in raid 0, 16TB HDD backup, 56TB archive server.
Tangent Elements panel, TV logic XVW-245W
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSat Sep 30, 2017 7:17 am

Jack Swart wrote:Agreed. The meters show the levels of the track well enough without the waveform changing height as well. it is like the timeline thumbnails disappearing if your drop the opacity of the clip.


Thanks for the input Jack. I do want to be clear however. I DO LIKE the automatic resizing of the waveforms when clip gain is added. And even think it would be nice the *option* to resize them for if timeline gain is added. (Currently changing timeline gain does not change waveform height.)

I find the automatic resizing makes it MUCH easier to set clip gain by eye, just by looking at the waveforms.

But what I want/pretty much need is the ability to increase/decrease the height of the waveforms w/o changing the track height. But there should be an option to reset this resizing back to "normal size". Sort of like how the zoom control on apps also have a 100% setting that brings you back to what's "normal size."

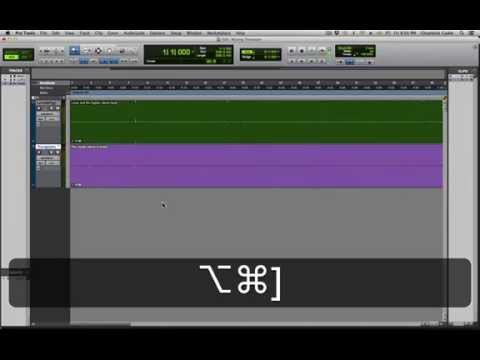

Here's link to how what I'm talking about is implemented in Pro Tools:



But it also exists in Media Composer, b/c seeing waveforms is so important for some types of editing. So this needs to be available on the Edit Page (not just Fairlight). Here's a link to how it works in Media Composer:



I hope that's clear/clearer.
Last edited by PeterMoretti on Sat Sep 30, 2017 9:21 am, edited 1 time in total.
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline
User avatar

Marc Wielage

  • Posts: 10852
  • Joined: Fri Oct 18, 2013 2:46 am
  • Location: Hollywood, USA

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSat Sep 30, 2017 8:41 am

Jack Swart wrote:And Marc's list is double sided......

This is only Part 1 of Peter's list...
marc wielage, csi • VP/color & workflow • chroma | hollywood
Offline

PeterMoretti

  • Posts: 928
  • Joined: Sat Aug 03, 2013 12:12 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSat Sep 30, 2017 9:26 pm

Hahahaha! True, if you wipe lemon juice across the paper you can see it! :D
Resolve 14.3 Studio. GTX 970 with GeForce 390.77 driver. Desktop Video 10.9.10. Intensity Shuttle USB 3.0. Windows 10 Pro.
Offline

George Tsikos

  • Posts: 91
  • Joined: Wed Jan 11, 2017 1:32 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostThu Aug 22, 2019 11:39 am

"What we need is the ability to resize the waveforms independently of resizing the track height."

This really needs to be a priority! Just like on Avid Media Composer ...you hit the square brackets keys to increase the size/density of the waveform for better visibility, which helps tremendously when editing.

BMD Team, I appreciate the To Do list is ginooormous :D but I'm surprised this has not been near the top. It's a basic editing display that helps a lot.

Thanks
G
Offline
User avatar

Gary Hango

  • Posts: 883
  • Joined: Mon Apr 09, 2018 10:35 pm
  • Location: Left Coast
  • Real Name: Gary Hango

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostThu Aug 22, 2019 12:25 pm

How about a pop up window, kind of like scopes, that displays a magnified area of the waveform around the playhead of the selected audio track?
Microsoft Windows 10 Pro x64
Intel(R) Core(TM) i7-6700, 3.40GHz, 32.0 GB
MB: MSI, BIOS: American Megatrends Inc. A.60, 12/17/2015
NVIDIA GeForce GTX 960, 2Gb
Resolve 18.1.1.0007(Free)
Offline
User avatar

Charles Bennett

  • Posts: 6134
  • Joined: Sat Nov 05, 2016 11:55 am
  • Location: United Kingdom

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostThu Aug 22, 2019 5:10 pm

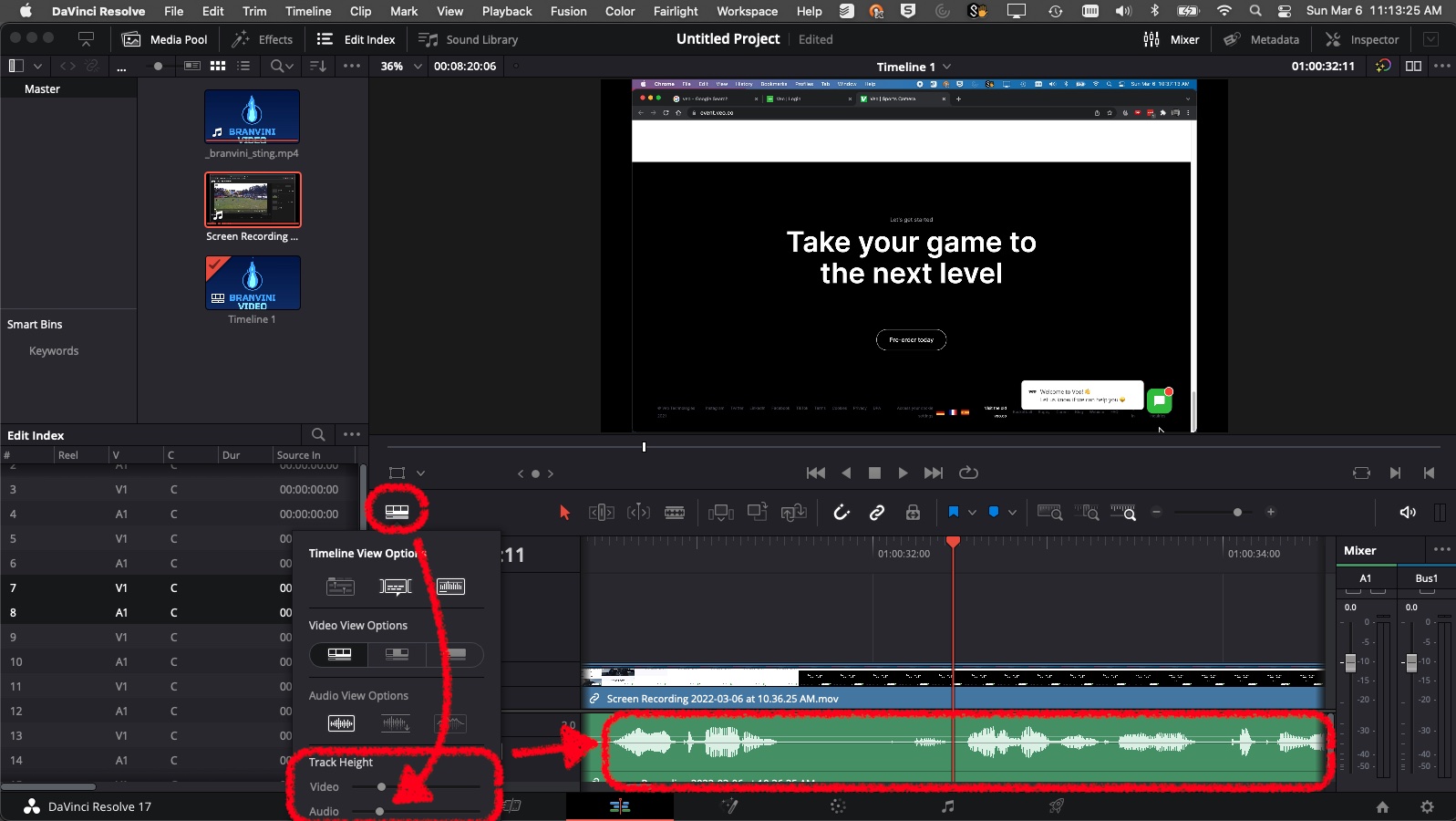

You can increase the waveform size a bit by increasing the track height and selecting these. Not ideal but it may help somebody.
Attachments
Audio waveform height.jpg
Audio waveform height.jpg (260.58 KiB) Viewed 11332 times
Resolve Studio 18.6.5 build 7
Dell XPS 8700 i7-4790, 24GB RAM, 2 x Evo 860 SSDs, GTX1060/6GB (546.01 Studio Driver), Win10 Home (22H2), Speed Editor, Faderport mk1, Eizo ColorEdge CS230 + BenQ GW2270 + Samsung SA200, Canon C100mk2, Zoom H2n.
Offline

curtixman

  • Posts: 2
  • Joined: Fri Nov 01, 2019 5:57 pm
  • Real Name: Curtis Quinn

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostFri Nov 08, 2019 6:24 pm

Jack Swart wrote:Agreed. The meters show the levels of the track well enough without the waveform changing height as well. it is like the timeline thumbnails disappearing if your drop the opacity of the clip.


+1
Offline

George Tsikos

  • Posts: 91
  • Joined: Wed Jan 11, 2017 1:32 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostWed Nov 27, 2019 12:00 pm

Just to add to this...

Today was a perfect example. I was needing to sync a single finger tap sound on a keyboard to an image. Nowhere to be seen on the waveform, with sound tracks at full size in both the Edit and Fairlight pages :(

G
Offline

George Tsikos

  • Posts: 91
  • Joined: Wed Jan 11, 2017 1:32 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSat Mar 14, 2020 7:10 pm

Has Resolve 16 resolved this issue?
Offline

Reynaud Venter

  • Posts: 4893
  • Joined: Sun May 28, 2017 9:34 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSun Mar 15, 2020 1:21 pm

George Tsikos wrote:Has Resolve 16 resolved this issue?
Resolve 16.2

Option 1:
Right click an Audio Clip > Track Waveform Zoom

Option 2:
View menu > Track Waveform Zoom

Keybindings may be assigned to all commands via the Keyboard Customisation window.
Offline

Will Howard

  • Posts: 293
  • Joined: Wed Apr 17, 2019 8:25 pm
  • Real Name: Will Howard

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSun Mar 15, 2020 2:23 pm

Reynaud Venter wrote:
George Tsikos wrote:Has Resolve 16 resolved this issue?
Resolve 16.2

Option 1:
Right click an Audio Clip > Track Waveform Zoom

Option 2:
View menu > Track Waveform Zoom

Keybindings may be assigned to all commands via the Keyboard Customisation window.


I didn't notice that. So is it set per track?
Offline

Reynaud Venter

  • Posts: 4893
  • Joined: Sun May 28, 2017 9:34 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSun Mar 15, 2020 2:24 pm

Will Howard wrote:So is it set per track?
Per Selected Track and All Tracks.
Offline

George Tsikos

  • Posts: 91
  • Joined: Wed Jan 11, 2017 1:32 am

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostTue Mar 17, 2020 11:54 am

Interesting. I'll check it out when I upgrade. Thanks for the reply
Offline

brianjester

  • Posts: 1
  • Joined: Sun Mar 06, 2022 7:10 pm
  • Real Name: Brian Jester

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSun Mar 06, 2022 7:18 pm

Edit view > Timeline View Options > Track Height > Audio

Offline

lulumastering

  • Posts: 27
  • Joined: Tue Mar 07, 2023 2:23 pm
  • Real Name: Lulu Fee

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostFri Sep 22, 2023 8:38 pm

PeterMoretti wrote:What we need is the ability to resize the waveforms independently of resizing the track height.

+1

.
Davinci Resolve Studio 18.5
Apple Mac Pro Rack 2019, Mac OS Monterey 12.7
2.7GHz 24 Core, 192GB RAM, AMD Radeon Pro Vega II Duo 32GB, SSD
Offline

tunobueno

  • Posts: 1
  • Joined: Sat Oct 07, 2023 8:25 am
  • Real Name: Xabier Handia

Re: Need to be Able Increase/Decrease the Audio Waveform Hei

PostSat Oct 07, 2023 8:33 am

Hi everybody. I've achieved it by chance just after reading this conversation, by scrolling with the mouse wheel over the audio track while clicking Ctrl+Alt (Windows machine with Resolve 18.5).

Return to DaVinci Resolve

Who is online

Users browsing this forum: greenfun2, michaelh99, panos_mts, ThomasHansen, Uli Plank and 131 guests
