Sun May 25, 2025 2:59 pm
Testing environment:
Apple iPhone 15 Pro iOS 18.5
Camera App: Blackmagic Cam 2.3.000047
Apple Camera App
All recordings to external Lexar 2TB SSD for 3x seconds
Use take two and three as reference takes (I botched the start by inadvertently moving the mouse by my elbow;-)
Material used below is ALWAYS the first 30 seconds of a 25 fps UHD HLG recording (as specified below).
The cuts are imported into Final Cut Pro 11.1.1
First take (first 30 seconds on 25fps HDR (HLG) timeline):
Second take (first 30 seconds on 25fps HDR (HLG) timeline):
Last take (first 30 seconds on 25fps HDR (HLG) timeline):
The takes were part of a larger set, but these three takes clearly illustrate the problem exhibited by the Blackmagic Camera App, where the lead-in to each file (Blackmagic only) clearly shows a wobbly start in the color information, as displayed in the Parade.
Roughly the first 4-9 seconds of each BMC take (ProRES 422 or h265 54 mbit/sec) have a very “flakey behaviour” probably the main cause of instability in the frame rate.
The last take - Apple Camera App (ProRES 422HQ) does NOT exhibit the problem at all. Parade is as solid as could be expected from the get go.
Screenrecording was made to a HDMI connected Atomos Ninja V connected via HDMI (60 fps) as duplicated screen of my MacBook Pro 14 M1 Pro (screen: Apple XDR Display (P3-1600 nits) and cut somewhat to size in Quicktime (resulting in 1 min 35 sec 2.76 GByte recording saved as HEVC 60 fps nominal 230 megabit/sec BT.2020 HLG 4:2:2 10-bit UHD).
Link: “https://www.icloud.com/iclouddrive/011TLi8LyBBngCyT6F9nvd-AA#Atomos_Ninja_V_HDMI_second_monitor_recording”
NOTE: The Link is showing a screen recording of the behaviour during playback in Final Cut Pro 11.1.1, and the effect should be easily reproduced, by other iPhone users. The scene is my “standard video torture corner”, where behaviour and environment is easily reproduced and well known over the years.
Regards
Apple iPhone 15 Pro iOS 18.5
Camera App: Blackmagic Cam 2.3.000047
Apple Camera App
All recordings to external Lexar 2TB SSD for 3x seconds

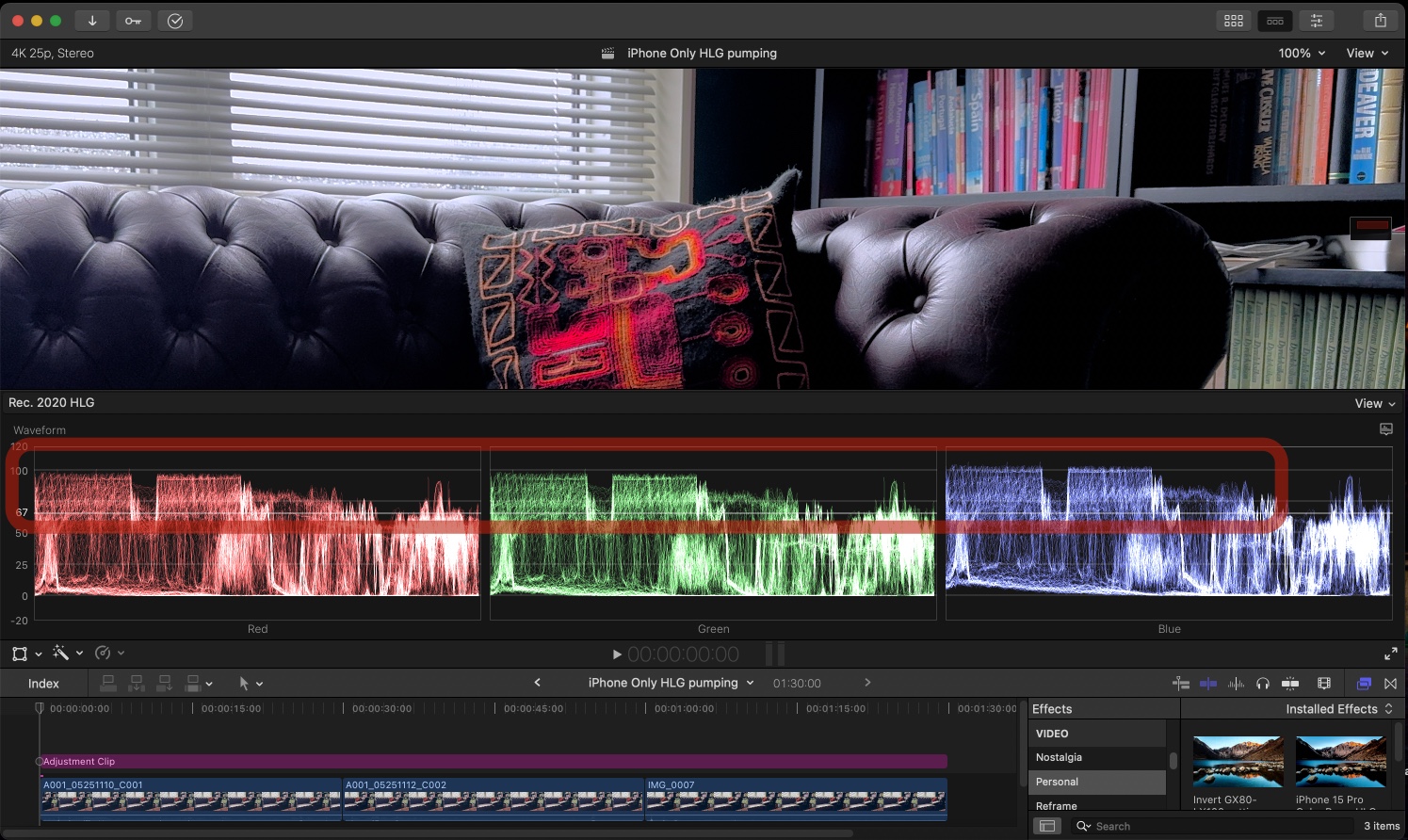

- Parade display highly inconsistent the first 9 seconds or so
- Parade display highly inconsistent.jpg (484.18 KiB) Viewed 550 times
Use take two and three as reference takes (I botched the start by inadvertently moving the mouse by my elbow;-)
Material used below is ALWAYS the first 30 seconds of a 25 fps UHD HLG recording (as specified below).
The cuts are imported into Final Cut Pro 11.1.1
First take (first 30 seconds on 25fps HDR (HLG) timeline):
- Code: Select all
General
Complete name : A001_05251110_C001.mov
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt 0000.00 (qt )
File size : 1.90 GiB
Duration : 33 s 84 ms
Overall bit rate mode : Variable
Overall bit rate : 493 Mb/s
Frame rate : 25.000 FPS
Recorded date : 2025-05-25T11:10:51+xxxx
Encoded date : 2025-05-25 09:10:51 UTC
Tagged date : 2025-05-25 09:11:25 UTC
Recorded location : xxxxxxx
Writing application : Blackmagic Cam 2.3.000047
Writing library : Apple QuickTime
Writing hardware : Apple iPhone 15 Pro 24mm
com.apple.quicktime.full-frame-rate-play : 1
com.apple.proapps.manufacturer : Apple Inc.
com.apple.proapps.clipID : A001_05251110_C001
com.apple.proapps.reel : 1
com.apple.proapps.scene : 1
com.apple.proapps.shot : 1
com.apple.proapps.isGood : 0
com.blackmagic-design.camera.dayNight : Day
com.blackmagic-design.camera.environment : Interior
com.blackmagic-design.camera.dateRecorde : 2025-05-25T11:10:51+0200
com.blackmagic-design.shutterMode : Speed
com.blackmagic-design.shutterSpeed : 1/30
com.blackmagic-design.camera.iso : 78
com.blackmagic-design.camera.whiteBalanc : 6480
com.blackmagic-design.camera.whiteBalanc : 16
com.blackmagic-design.camera.aperture : f1.8
com.blackmagic-design.camera.lensType : iPhone 15 Pro 24mm
com.blackmagic-design.sensorFPS : 25
com.apple.proapps.cameraName : A
com.blackmagic-design.camera.guides.aspe : 14:9
Video
ID : 1
Format : ProRes
Format version : Version 0
Format profile : 422
Codec ID : apcn
Duration : 33 s 84 ms
Bit rate mode : Variable
Bit rate : 489 Mb/s
Width : 3 840 pixels
Height : 2 160 pixels
Display aspect ratio : 16:9
Frame rate mode : Variable
Frame rate : 25.000 FPS
Minimum frame rate : 23.810 FPS
Maximum frame rate : 25.000 FPS
Color space : YUV
Chroma subsampling : 4:2:2
Scan type : Progressive
Bits/(Pixel*Frame) : 2.357
Stream size : 1.88 GiB (99%)
Title : Core Media Video
Writing library : Apple
Encoded date : 2025-05-25 09:10:51 UTC
Tagged date : 2025-05-25 09:11:25 UTC
Color primaries : BT.2020
Transfer characteristics : HLG
Matrix coefficients : BT.2020 non-constant
Audio
ID : 2
Format : PCM
Format settings : Signed
Codec ID : lpcm
Duration : 33 s 58 ms
Source duration : 32 s 704 ms
Bit rate mode : Constant
Bit rate : 3 072 kb/s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Bit depth : 32 bits
Stream size : 12.1 MiB (1%)
Source stream size : 12.0 MiB (1%)
Title : Core Media Audio
Encoded date : 2025-05-25 09:10:51 UTC
Tagged date : 2025-05-25 09:11:25 UTC
Other
ID : 3
Type : Time code
Format : QuickTime TC
Duration : 40 ms
Frame rate : 25.000 FPS
Time code of first frame : 11:10:51:00
Time code of last frame : 11:10:51:00
Time code, stripped : Yes
Title : Core Media Time Code
Encoded date : 2025-05-25 09:10:51 UTC
Tagged date : 2025-05-25 09:11:25 UTC
Second take (first 30 seconds on 25fps HDR (HLG) timeline):
- Code: Select all
General
Complete name : A001_05251112_C002.mov
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt 0000.00 (qt )
File size : 230 MiB
Duration : 33 s 284 ms
Overall bit rate : 57.9 Mb/s
Frame rate : 25.000 FPS
Recorded date : 2025-05-25T11:12:54+xxxx
Encoded date : 2025-05-25 09:12:54 UTC
Tagged date : 2025-05-25 09:13:28 UTC
Recorded location : xxxxxxx
Writing application : Blackmagic Cam 2.3.000047
Writing library : Apple QuickTime
Writing hardware : Apple iPhone 15 Pro 24mm
com.apple.quicktime.full-frame-rate-play : 1
com.apple.proapps.manufacturer : Apple Inc.
com.apple.proapps.clipID : A001_05251112_C002
com.apple.proapps.reel : 1
com.apple.proapps.scene : 1
com.apple.proapps.shot : 1
com.apple.proapps.isGood : 0
com.blackmagic-design.camera.dayNight : Day
com.blackmagic-design.camera.environment : Interior
com.blackmagic-design.camera.dateRecorde : 2025-05-25T11:12:54+xxxx
com.blackmagic-design.shutterMode : Speed
com.blackmagic-design.shutterSpeed : 1/30
com.blackmagic-design.camera.iso : 70
com.blackmagic-design.camera.whiteBalanc : 6440
com.blackmagic-design.camera.whiteBalanc : 17
com.blackmagic-design.camera.aperture : f1.8
com.blackmagic-design.camera.lensType : iPhone 15 Pro 24mm
com.blackmagic-design.sensorFPS : 25
com.apple.proapps.cameraName : A
com.blackmagic-design.camera.guides.aspe : 14:9
Video
ID : 1
Format : HEVC
Format/Info : High Efficiency Video Coding
Format profile : Main 10@L5.2@Main
HDR format : Dolby Vision, Version 1.0, Profile 8.4, dvhe.08.10, BL+RPU, no metadata compression, HLG compatible
Codec ID : hvc1
Codec ID/Info : High Efficiency Video Coding
Duration : 33 s 284 ms
Bit rate : 54.8 Mb/s
Width : 3 840 pixels
Height : 2 160 pixels
Display aspect ratio : 16:9
Frame rate mode : Variable
Frame rate : 25.000 FPS
Minimum frame rate : 23.810 FPS
Maximum frame rate : 26.316 FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 10 bits
Bits/(Pixel*Frame) : 0.264
Stream size : 217 MiB (95%)
Title : Core Media Video
Writing library : HEVC
Encoded date : 2025-05-25 09:12:54 UTC
Tagged date : 2025-05-25 09:13:28 UTC
Color range : Limited
Color primaries : BT.2020
Transfer characteristics : HLG
Matrix coefficients : BT.2020 non-constant
Codec configuration box : hvcC+dvvC
Audio
ID : 2
Format : PCM
Format settings : Signed
Codec ID : lpcm
Duration : 33 s 250 ms
Source duration : 32 s 896 ms
Bit rate mode : Constant
Bit rate : 3 072 kb/s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Bit depth : 32 bits
Stream size : 12.2 MiB (5%)
Source stream size : 12.0 MiB (5%)
Title : Core Media Audio
Encoded date : 2025-05-25 09:12:54 UTC
Tagged date : 2025-05-25 09:13:28 UTC
Other
ID : 3
Type : Time code
Format : QuickTime TC
Duration : 40 ms
Frame rate : 25.000 FPS
Time code of first frame : 11:12:54:00
Time code of last frame : 11:12:54:00
Time code, stripped : Yes
Title : Core Media Time Code
Encoded date : 2025-05-25 09:12:54 UTC
Tagged date : 2025-05-25 09:13:28 UTC
Last take (first 30 seconds on 25fps HDR (HLG) timeline):
- Code: Select all
General
Complete name : IMG_0007.MOV
Format : MPEG-4
Format profile : QuickTime
Codec ID : qt 0000.00 (qt )
File size : 2.79 GiB
Duration : 33 s 202 ms
Overall bit rate mode : Variable
Overall bit rate : 723 Mb/s
Frame rate : 25.000 FPS
Recorded date : 2025-05-25T11:09:22+xxxx
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Recorded location : xxxxxxx
Writing library : Apple QuickTime
Writing operating system : Apple iOS 18.5
Writing hardware : Apple iPhone 15 Pro
com.apple.quicktime.location.accuracy.ho : xx.xxxx
com.apple.quicktime.full-frame-rate-play : 1
Video
ID : 1
Format : ProRes
Format version : Version 0
Format profile : 422 HQ
Codec ID : apch
Duration : 33 s 202 ms
Bit rate mode : Variable
Bit rate : 719 Mb/s
Width : 3 840 pixels
Height : 2 160 pixels
Display aspect ratio : 16:9
Frame rate mode : Variable
Frame rate : 25.000 FPS
Minimum frame rate : 24.000 FPS
Maximum frame rate : 25.000 FPS
Color space : YUV
Chroma subsampling : 4:2:2
Scan type : Progressive
Bits/(Pixel*Frame) : 3.465
Stream size : 2.78 GiB (99%)
Title : Core Media Video
Writing library : Apple
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Color primaries : BT.2020
Transfer characteristics : HLG
Matrix coefficients : BT.2020 non-constant
Metas : 3,4,5
Audio
ID : 2
Format : PCM
Format settings : Little / Signed
Codec ID : lpcm
Duration : 33 s 200 ms
Source duration : 33 s 203 ms
Bit rate mode : Constant
Bit rate : 1 536 kb/s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Bit depth : 16 bits
Stream size : 6.08 MiB (0%)
Source stream size : 6.08 MiB (0%)
Title : Core Media Audio
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Other #1
ID : 3
Type : meta
Format : mebx
Codec ID : mebx
Duration : 33 s 202 ms
Bit rate mode : Constant
Title : Core Media Metadata
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Other #2
ID : 4
Type : meta
Format : mebx
Codec ID : mebx
Duration : 33 s 202 ms
Bit rate mode : Constant
Title : Core Media Metadata
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Other #3
ID : 5
Type : meta
Format : mebx
Codec ID : mebx
Duration : 33 s 202 ms
Bit rate mode : Constant
Title : Core Media Metadata
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Other #4
ID : 6
Type : meta
Format : mebx
Codec ID : mebx
Duration : 33 s 200 ms
Source duration : 33 s 203 ms
Bit rate mode : Constant
Stream size : 9.73 KiB
Source stream size : 9.73 KiB
Title : Core Media Metadata
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
Other #5
ID : 7
Type : meta
Format : mebx
Codec ID : mebx
Duration : 33 s 202 ms
Bit rate mode : Constant
Title : Core Media Metadata
Encoded date : 2025-05-25 09:09:22 UTC
Tagged date : 2025-05-25 09:09:55 UTC
The takes were part of a larger set, but these three takes clearly illustrate the problem exhibited by the Blackmagic Camera App, where the lead-in to each file (Blackmagic only) clearly shows a wobbly start in the color information, as displayed in the Parade.
Roughly the first 4-9 seconds of each BMC take (ProRES 422 or h265 54 mbit/sec) have a very “flakey behaviour” probably the main cause of instability in the frame rate.
The last take - Apple Camera App (ProRES 422HQ) does NOT exhibit the problem at all. Parade is as solid as could be expected from the get go.
Screenrecording was made to a HDMI connected Atomos Ninja V connected via HDMI (60 fps) as duplicated screen of my MacBook Pro 14 M1 Pro (screen: Apple XDR Display (P3-1600 nits) and cut somewhat to size in Quicktime (resulting in 1 min 35 sec 2.76 GByte recording saved as HEVC 60 fps nominal 230 megabit/sec BT.2020 HLG 4:2:2 10-bit UHD).
Link: “https://www.icloud.com/iclouddrive/011TLi8LyBBngCyT6F9nvd-AA#Atomos_Ninja_V_HDMI_second_monitor_recording”
NOTE: The Link is showing a screen recording of the behaviour during playback in Final Cut Pro 11.1.1, and the effect should be easily reproduced, by other iPhone users. The scene is my “standard video torture corner”, where behaviour and environment is easily reproduced and well known over the years.
Regards
