Parallel node, dont work mask?

PostWed Mar 24, 2021 2:38 pm

Hello!
Just a doubt with node layers....
As you can see in my attachment, i made first a basic correction and then a 3 parralel node:
1 The number 1 is all the frame moving "lift" to green for tint
2 Number 2 is the hat just changed with Hue to violet color
3 Number 3 is the subject masked with "Magic Mask"

I thought parallel node works like layers in photoshop but maybe im wrong, because, as u can see in the final composition, my image is all with green tint: the mask i did for the subjetc didnt work and the violet had lost saturation

What im doing bad?
Regards!
Attachments

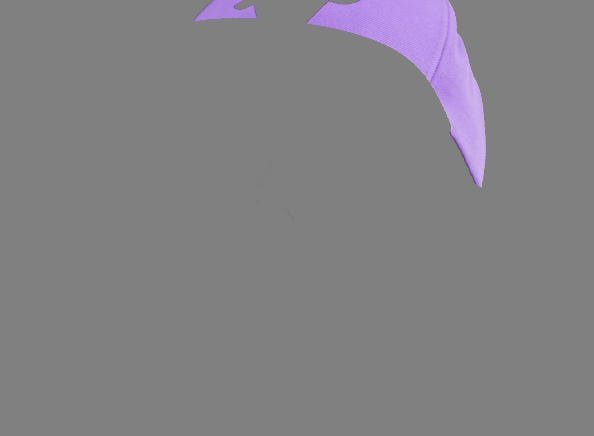

violet

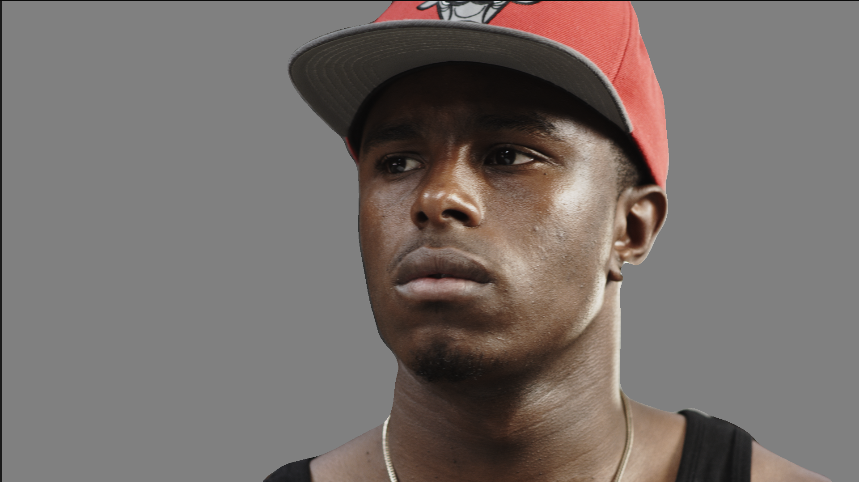

magic mask

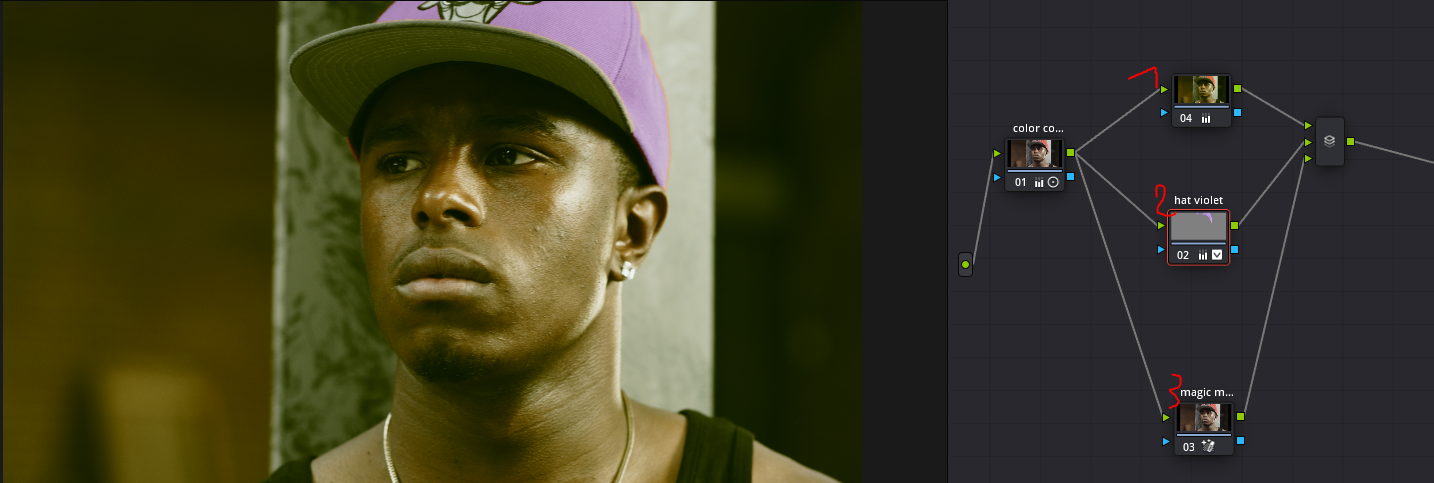

final comoposite
Offline

wfolta

  • Posts: 636
  • Joined: Fri May 15, 2020 1:12 pm
  • Real Name: Wayne Folta

Re: Parallel node, dont work mask?

PostWed Mar 24, 2021 3:54 pm

LAYER node priority is inverse from Photoshop: lower layers overwrite higher layers. ("Lower" and "Higher" referring to the ports on the left side of the Parallel node.)

[EDIT: Oops, Layer Node, Layer node. Corrected from Parallel Node. Though the order is the opposite of most programs, as noted.]
Last edited by wfolta on Wed Mar 24, 2021 6:08 pm, edited 1 time in total.
Resolve Studio 20, Fusion Studio 20, MacOS Sequoia latest, MacBook Pro M4 Max
Offline
User avatar

waltervolpatto

  • Posts: 11329
  • Joined: Thu Feb 07, 2013 5:07 pm
  • Location: Pictureshop 6040 Sunset Blvd, Hollywood, CA 90028

Re: Parallel node, dont work mask?

PostWed Mar 24, 2021 3:58 pm

I recommend to look in the manual for "parallel nodes" in the color sections.

in short, in a parallel node all the corrections are calculated for each branch, then "added" together, then applied to a pixel.

a simple way to see this is making a simple two parallel node tree, in one push the gamma to red and in the other put the sat to 0: what you get is a sepia tone.

if you put a mask in a branch, that mash only effect that branch and not the others.
W10-19043.1645- Supermicro MB C9X299-PGF - RAM 128GB CPU i9-10980XE 16c 4.3GHz (Oc) Water cooled - 12x8TB SSD RAID5 internal (80TB)
Decklink Studio 4K (12.4.1)
Resolve 19.1.3 / fusion studio 19
GPU 3090ti drivers 512.59 studio
Offline
User avatar

Glenn Sakatch

  • Posts: 750
  • Joined: Sat Apr 13, 2013 5:36 pm

Re: Parallel node, dont work mask?

PostWed Mar 24, 2021 5:03 pm

I think you want a layer node, not a parallel node.
Offline

capitansolo

  • Posts: 24
  • Joined: Mon Dec 07, 2020 11:47 pm
  • Real Name: Jose Garcia

Re: Parallel node, dont work mask?

PostWed Mar 24, 2021 7:42 pm

Thank all for your replies.
I will try Layer node and read about it.
Regards!
