Use Qualifier on clip underneath?

PostFri Jul 09, 2021 5:48 pm

Hey everyone!

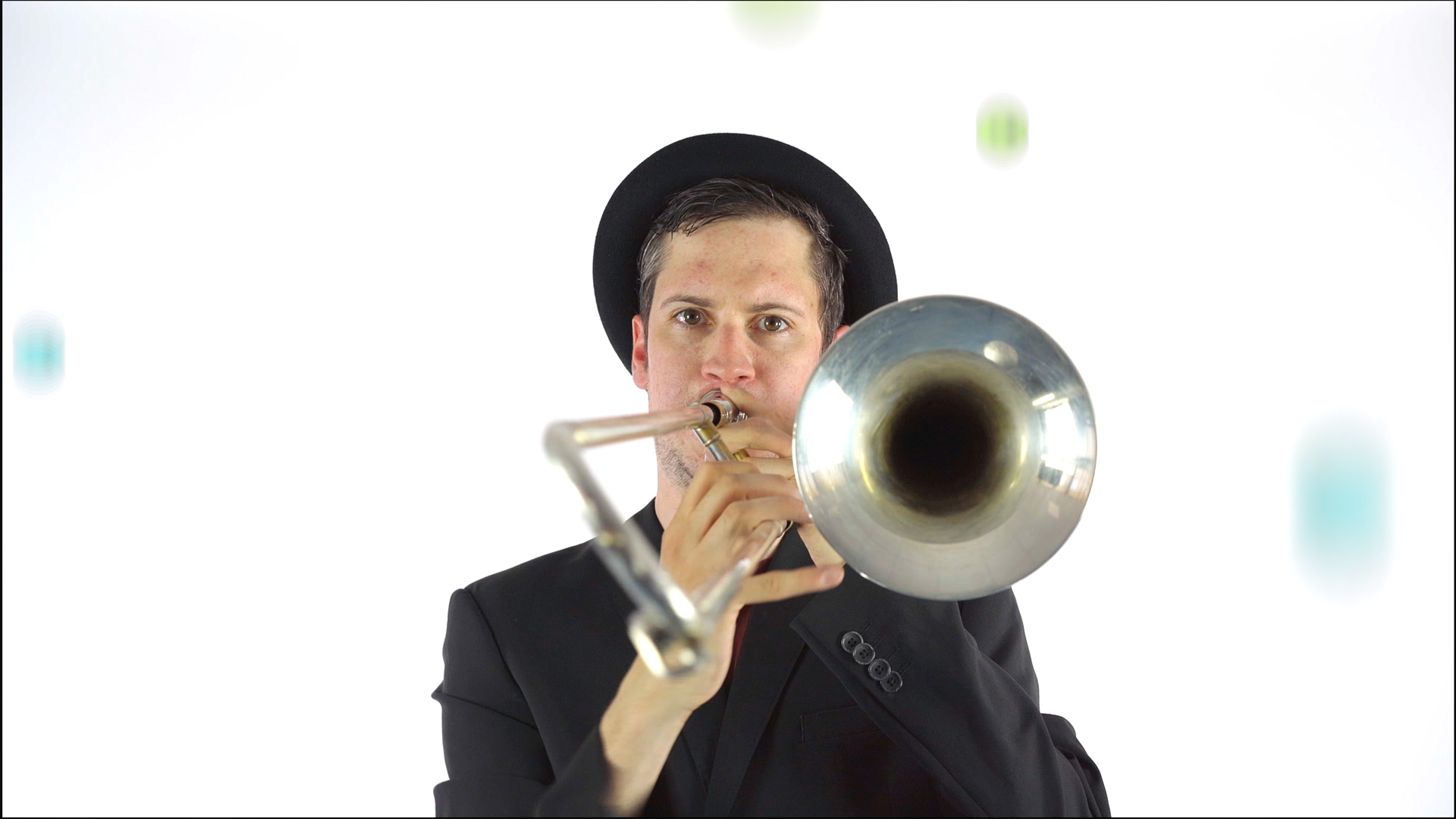

I'm producing a music video right now and I have two clips I would like to combine.

The first clip is a musician in front of a white background.
The second clip is on top of the first one. It is a rain of plastic balls in front of a black background. It is set on "exclusion", so the black background disappears.

Now I want the balls behind the musician, so the moment they "touch" him, they have to be masked out.

I wanted to use the qualifier in the clip with the balls. So that the balls only appear where the white background of the clip underneath is.
But is there a way to use the qualifier on a clip that only shines through, but isn't the actual clip I use the qualifier in? I hope I could describe that properly.

Because of the amount of work and performance issues, I don't want to make a fusion comp out of it.

Sooooooo... Any tips how to do that?

Thanks in beforehand!

Btw: The clip of the balls is a fusion composition i rendered in place. So if you have any suggestions that only work without the black background, I can remove it.
Attachments
Offline

TheCameraGuy

  • Posts: 27
  • Joined: Fri Jul 02, 2021 1:46 pm
  • Real Name: Lennart Jabben

Re: Use Qualifier on clip underneath?

PostFri Jul 09, 2021 6:56 pm

Is it at least clear what I tried to explain? I have the feeling that I failed a bit here :D
Offline
User avatar

Mike Warren

  • Posts: 497
  • Joined: Thu Nov 23, 2017 2:28 am
  • Location: Cairns, Australia

Re: Use Qualifier on clip underneath?

PostFri Jul 09, 2021 10:45 pm

The way I'd do it if Fusion wasn't an option is to create a polygon mask in the colour page and rotoscope it.
Resolve Studio 17.4.6 - Fusion Studio 17.2.2 - Windows 10
Gigabyte GTX1080ti 11GB - AMD 1950X - 64GB 2400
Gigabyte X399 AORUS Gaming 7
Intensity Pro 4k
Presonus 192 Audio Interface
Separate M.2 SSDs for OS and Resolve Cache
Offline

Jim Simon

  • Posts: 36179
  • Joined: Fri Dec 23, 2016 1:47 am

Re: Use Qualifier on clip underneath?

PostSat Jul 10, 2021 4:23 pm

Add a white Solid Color to V1, balls on V2 keying out the black, and musician on V3 keying out the white.
My Biases:

You NEED training.
You NEED a desktop.
You NEED a calibrated (non-computer) display.
Offline
User avatar

Gary Hango

  • Posts: 932
  • Joined: Mon Apr 09, 2018 10:35 pm
  • Location: Left Coast
  • Real Name: Gary Hango

Re: Use Qualifier on clip underneath?

PostSat Jul 10, 2021 4:54 pm

Jim Simon wrote:Add a white Solid Color to V1, balls on V2 keying out the black, and musician on V3 keying out the white.

There’s a lot of white on that trombone bell, so keying white may be problematic.
Microsoft Windows 10 Pro x64
Intel(R) Core(TM) i7-6700, 3.40GHz, 32.0 GB
MB: MSI, BIOS: American Megatrends Inc. A.60, 12/17/2015
NVIDIA GeForce GTX 960, 2Gb
Resolve 19.1.3(Free)
Offline

Howard Roll

  • Posts: 3128
  • Joined: Fri Jun 03, 2016 7:50 am

Re: Use Qualifier on clip underneath?

PostSat Jul 10, 2021 6:04 pm

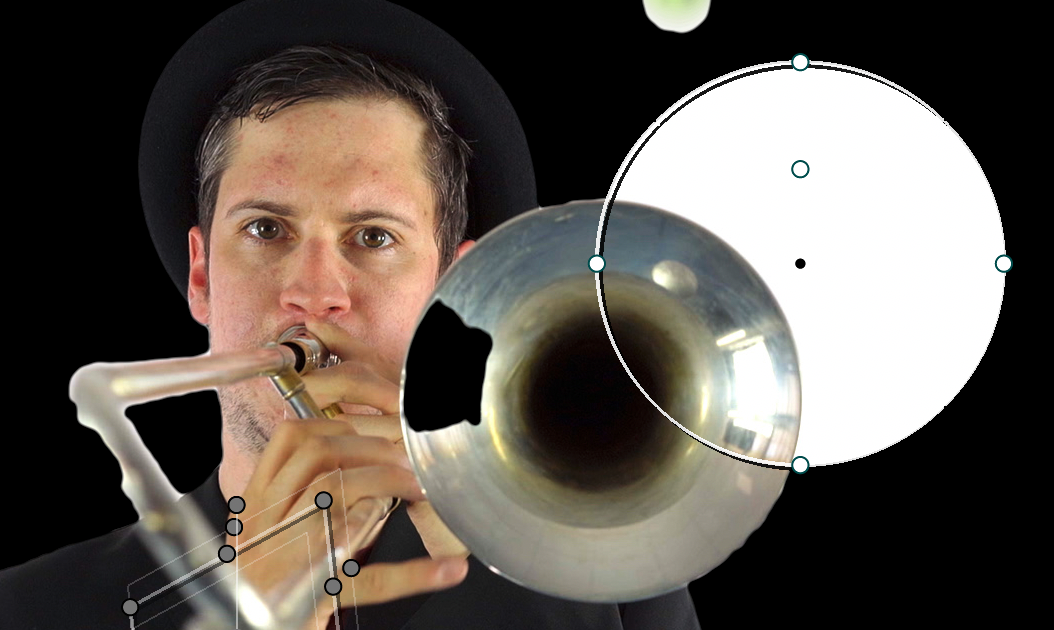

Split the difference. Change the background of the Fusion comp to white and leave it on the bottom layer. Then use 2 layers, a luma key for the player, and track a shape mask for the bell of the trombone.

Why is there a drop shadow on the mask? Did I accidentally turn on iMovie mode somewhere?

Good Luck

drop shadow.png
drop shadow.png (749.45 KiB) Viewed 667 times
Offline

Jim Simon

  • Posts: 36179
  • Joined: Fri Dec 23, 2016 1:47 am

Re: Use Qualifier on clip underneath?

PostSat Jul 10, 2021 7:20 pm

Gary Hango wrote:There’s a lot of white on that trombone bell
Mmmm...here's where a proper green screen would have helped.
My Biases:

You NEED training.
You NEED a desktop.
You NEED a calibrated (non-computer) display.
Offline

TheCameraGuy

  • Posts: 27
  • Joined: Fri Jul 02, 2021 1:46 pm
  • Real Name: Lennart Jabben

Re: Use Qualifier on clip underneath?

PostSun Jul 11, 2021 10:58 am

Jim Simon wrote:Add a white Solid Color to V1, balls on V2 keying out the black, and musician on V3 keying out the white.


YES, that worked really well! And is easy to reproduce. I have like 50 clips of different musicians I have do do this with.

Thank you all very much! I used the circular mask on the trombone to prevent the mask from keying it out. Next time I will definitely work with green screen...

Cheers!
