Problems with title "lower 3rd corporate corner 2 line"

PostMon Mar 09, 2020 10:32 am

Hi there,

I want to use the title "lower 3rd corporate corner 2 line" but it always copies the main text to the secondary text and vice versa. I don´t know if this is supposed to work like this or if this is a bug. How I would like to use this is by having two differnt text lines. Can anybody help me with this problem please?

Thank you.
Sebastian
Offline

xunile

  • Posts: 3109
  • Joined: Mon Apr 23, 2018 5:21 am
  • Real Name: Eric Eisenmann

Re: Problems with title "lower 3rd corporate corner 2 line"

PostTue Mar 10, 2020 4:58 pm

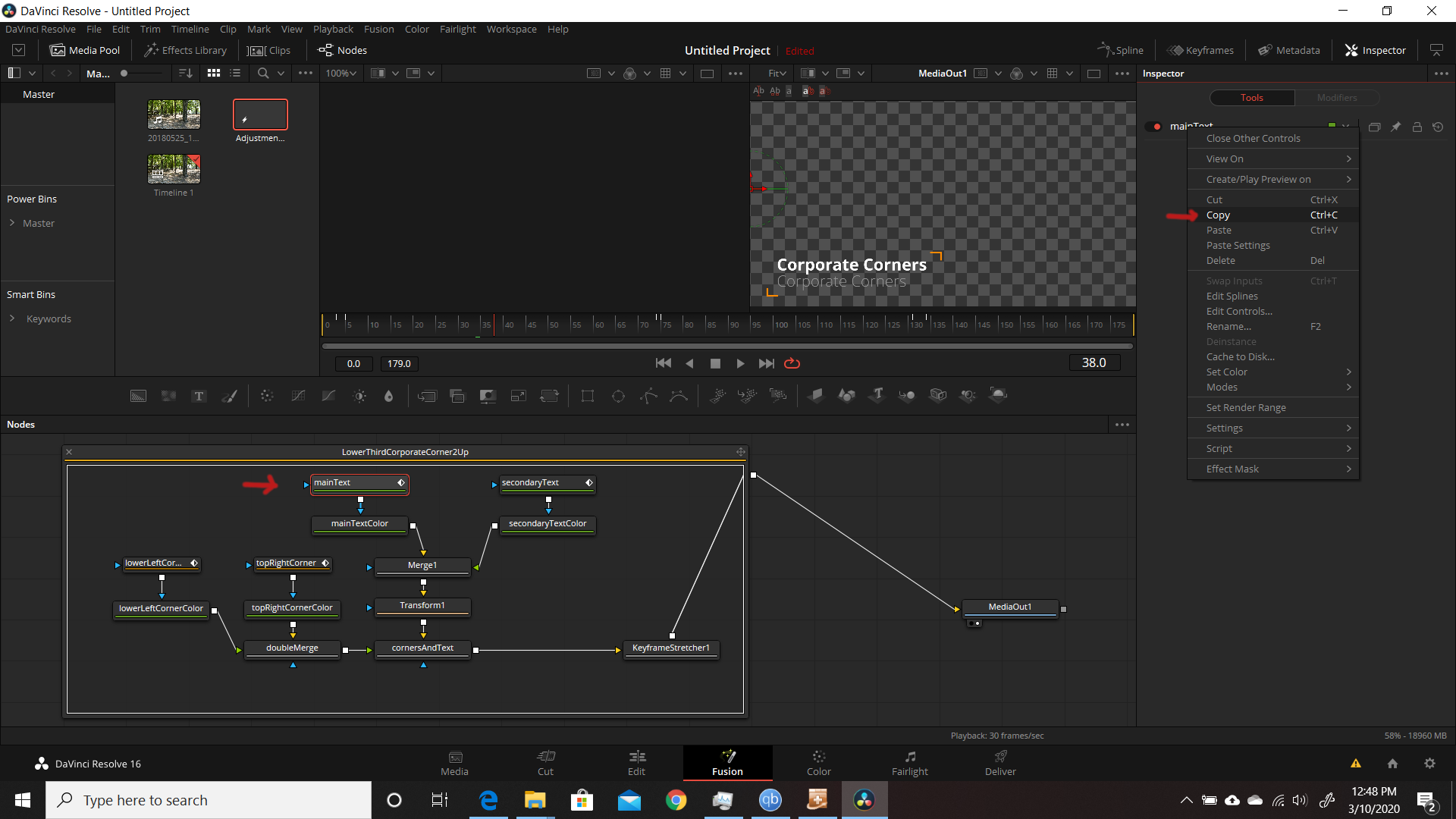

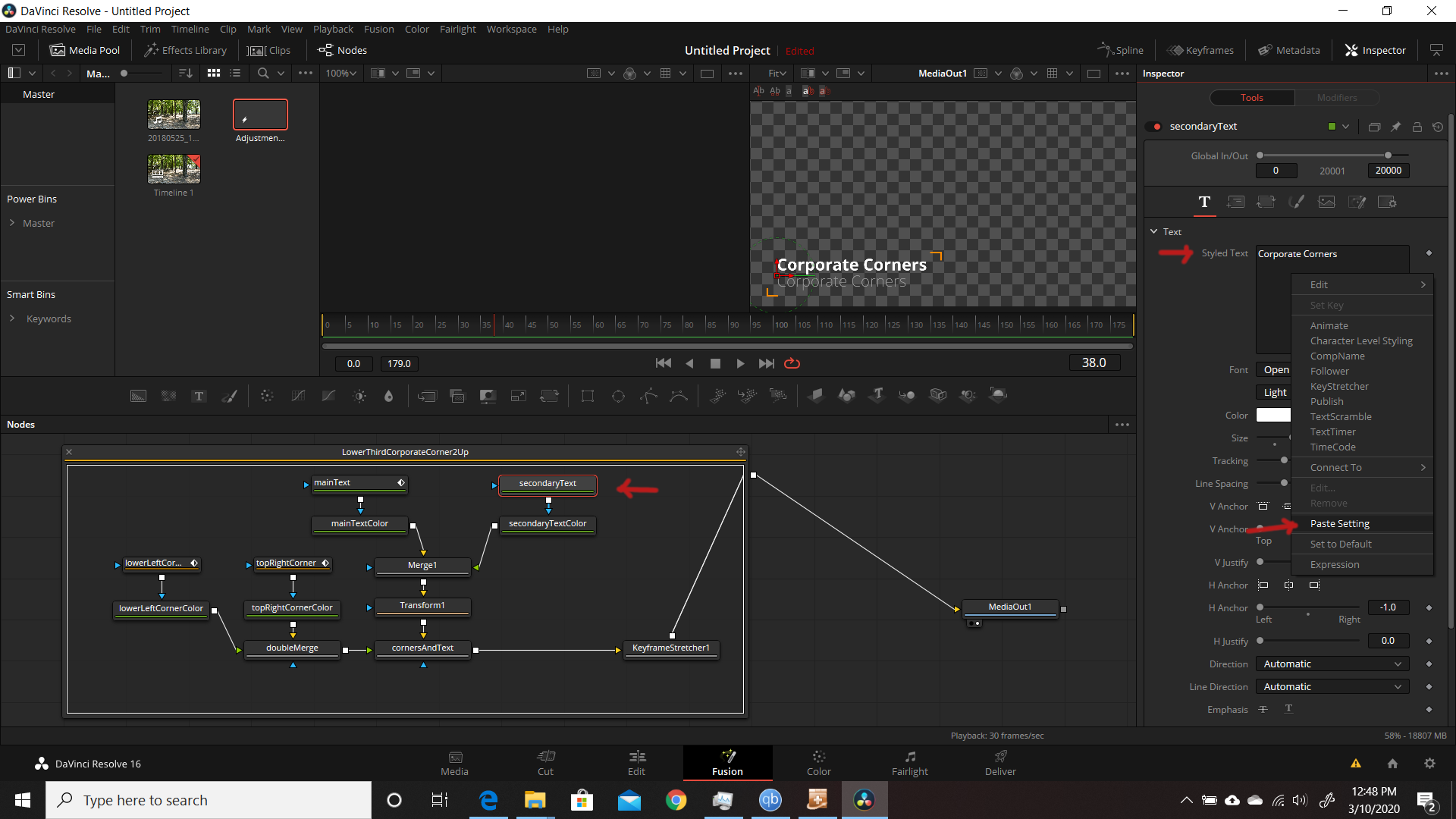

Add the Title to your timeline. Then make sure the playhead is over it and switch to the Fusion tab. Double click on the LowerThirdCorprateCorner2Up node so it's group is open. Click on the SecondaryText node and make sure it is open in the Inspector. Right-click on the Styled Text box and choose "Remove Follower". Then click on the MainText node and right-click on its title in the Inspector and choose "copy". After that, click on the secondaryText node again, right-click on the Styled Text Box and choose "Paste Setting". That should fix the issue.
Attachments
2020-03-10 (1).png
2020-03-10 (1).png (263.22 KiB) Viewed 2494 times
2020-03-10 (2).png
2020-03-10 (2).png (232.58 KiB) Viewed 2494 times
2020-03-10 (3).png
2020-03-10 (3).png (264.67 KiB) Viewed 2494 times
Win 10 Home | Intel i7 - 10700f 64 GB 1 TB GB SSD 2 TB SSD
RTX-3060 12 GB | Resolve Studio 18.6.6| Fusion Studio 18.6.6

Win 10 Home | Intel Core I7-7700HQ 32 GB 1 TB NVME SSD 1 TB SATA SSD
GTX-1060-6GB | Resolve 17.4.6
Offline

53ba5tian

  • Posts: 3
  • Joined: Mon Mar 09, 2020 10:18 am
  • Real Name: Sebastian Mueller

Re: Problems with title "lower 3rd corporate corner 2 line"

PostThu Mar 12, 2020 9:33 am

Thank you so very much for your help and time you invested xunile. it works like a charm!
Offline

James Harkness

  • Posts: 356
  • Joined: Wed Jul 13, 2016 5:04 pm

Re: Problems with title "lower 3rd corporate corner 2 line"

PostSun May 10, 2020 12:45 am

After doing this crazy work around that shouldnt have to be done, I find out that the left bottom corner doesn't show when resolution is set to UHD...
Offline

xunile

  • Posts: 3109
  • Joined: Mon Apr 23, 2018 5:21 am
  • Real Name: Eric Eisenmann

Re: Problems with title "lower 3rd corporate corner 2 line"

PostSun May 10, 2020 1:07 am

I really do help they fix this in the next update, it's been around for awhile though. You can make a few more changes in the Fusion tab and get it to work. In the maintext, maintextcolor, and the secondarytext and secondarytextcolor you have to change the Image size setting to Auto Resolution and it will work.
Attachments
2020-05-09 (1).png
2020-05-09 (1).png (281.21 KiB) Viewed 2350 times
Win 10 Home | Intel i7 - 10700f 64 GB 1 TB GB SSD 2 TB SSD
RTX-3060 12 GB | Resolve Studio 18.6.6| Fusion Studio 18.6.6

Win 10 Home | Intel Core I7-7700HQ 32 GB 1 TB NVME SSD 1 TB SATA SSD
GTX-1060-6GB | Resolve 17.4.6
Offline

Joelarvidsson

  • Posts: 201
  • Joined: Fri Oct 12, 2012 6:18 am

Re: Problems with title "lower 3rd corporate corner 2 line"

PostSun Dec 06, 2020 10:10 pm

Thanks Eric!
Resolve Studio 18.5, Studio driver 536.99
Supermicro 2 Intel Xeon E5-2687W 3.10GHz processors. 64GB ram. GTX 1080Ti GPU Samsung PM893 SSD for system, Intel ssd for cache. Windows 10 pro. Qnap gnap TS-1685 for media. 925MB/s & 1062MB/s
