Help with creating a photo wall using particles

PostWed Mar 03, 2021 5:07 am

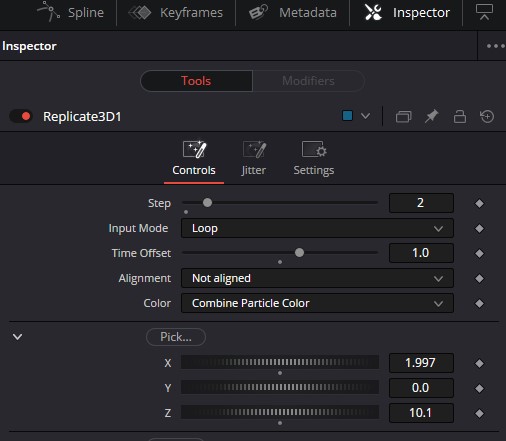

I have a photo wall setup using numbered photos 0001-0065, this comes in via the MediaIn2 Tool. I've created an 8x8 grid of particles and using the Replicate3D node placed each photo on each particle. On Frame 0 it shows all photos in an 8x8 grid perfectly.

I need some help on how to keep those photos how they are on Frame 0, frozen at this frame for the entire animation as it plays though. At the moment the images start to disappear from Frame 1 to 64. I've tried using TimeStretcher & TimeSpeed nodes with no luck. And I've tried using the Duplicate3D node but with this, I can't get the images on the particle grid as the Replicate3D node does.

Ive added the .setting file available here https://drive.google.com/file/d/17WI9D0vgrcAgTBud-1CH94YvlMBlMOXy/view?usp=sharing

Any ideas?
Last edited by niczoom on Wed Mar 03, 2021 5:27 am, edited 1 time in total.
Windows 10 20H2 19042.804 | Resolve Studio 17.1 b24 | Nvidia Studio Driver 461.40
Ryzen 7 1700 8-Core | 64GB RAM | 1070 GTX 8GB | Asus Prime B350-Plus
Offline

xunile

  • Posts: 3109
  • Joined: Mon Apr 23, 2018 5:21 am
  • Real Name: Eric Eisenmann

Re: Help with creating a photo wall using particles

PostWed Mar 03, 2021 5:25 am

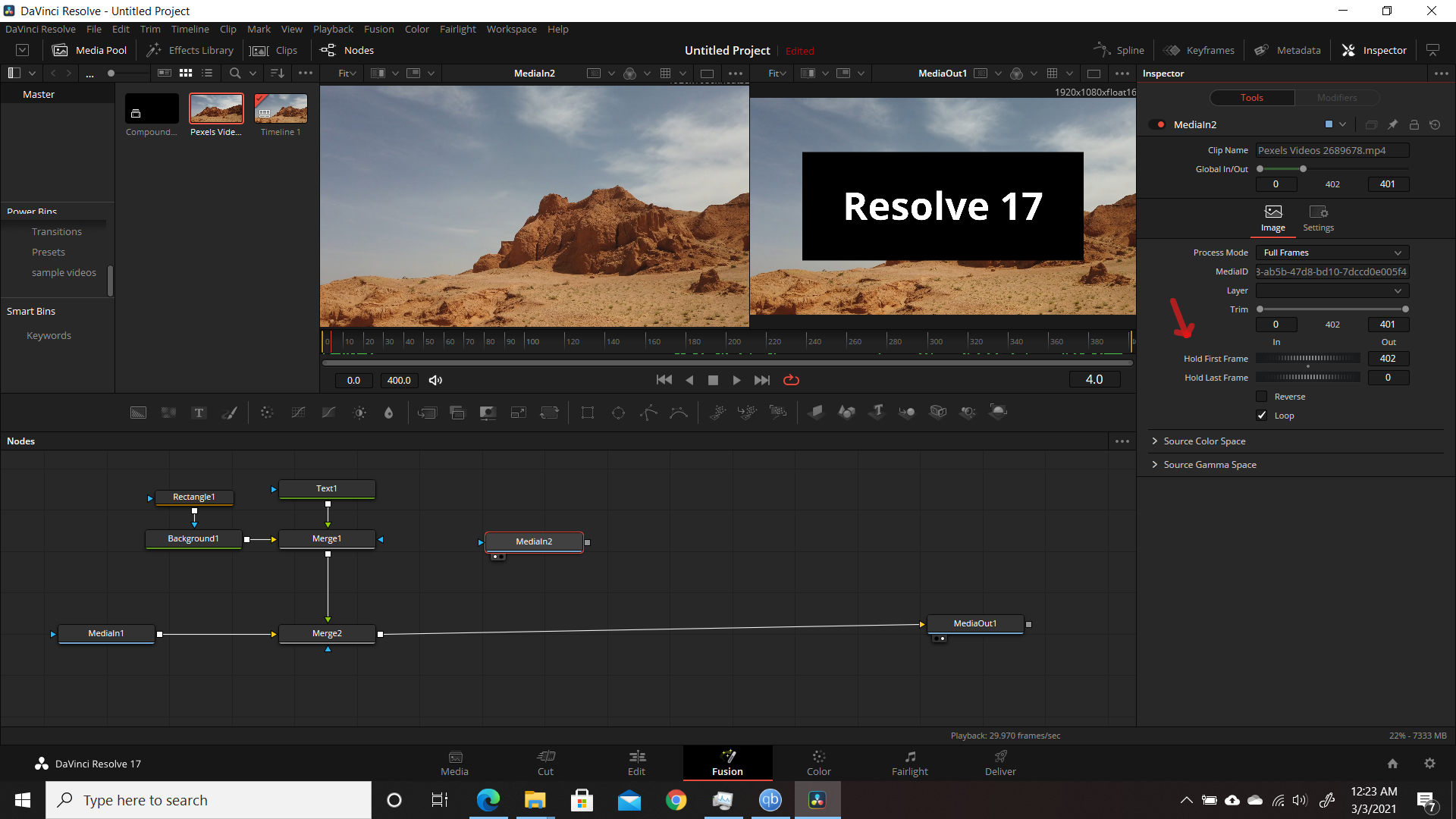

Have you tried Hold First Frame on the MediaIn node?
Attachments
2021-03-03 (3).png
2021-03-03 (3).png (642.55 KiB) Viewed 756 times
Win 10 Home | Intel i7 - 10700f 64 GB 1 TB GB SSD 2 TB SSD
RTX-3060 12 GB | Resolve Studio 18.6.6| Fusion Studio 18.6.6

Win 10 Home | Intel Core I7-7700HQ 32 GB 1 TB NVME SSD 1 TB SATA SSD
GTX-1060-6GB | Resolve 17.4.6
Offline
User avatar

niczoom

  • Posts: 27
  • Joined: Fri Aug 30, 2019 2:40 am
  • Real Name: Nicolas Harding

Re: Help with creating a photo wall using particles

PostWed Mar 03, 2021 6:23 am

Hi Xunile, Thanks for the help. When setting Hold First Frame it just displays a repeating image #1 of the sequence in the 8x8 grid for whatever value is set ie, When set to 64 (max # particle in the 8x8 grid) it shows Image#1 on all 64 grid points then as the animation is stepped through the other images are shown 1 by 1 until frame 64.


Windows 10 20H2 19042.804 | Resolve Studio 17.1 b24 | Nvidia Studio Driver 461.40
Ryzen 7 1700 8-Core | 64GB RAM | 1070 GTX 8GB | Asus Prime B350-Plus
Offline
User avatar

niczoom

  • Posts: 27
  • Joined: Fri Aug 30, 2019 2:40 am
  • Real Name: Nicolas Harding

Re: Help with creating a photo wall using particles

PostThu Mar 04, 2021 3:37 am

I have found a solution that has worked for me.

1. Just adding a TimeStretcher node set to frame 0 after the Renderer3D node worked.
2. Using a Time3D node from Reactor just before the Renderer3D node also worked.
Windows 10 20H2 19042.804 | Resolve Studio 17.1 b24 | Nvidia Studio Driver 461.40
Ryzen 7 1700 8-Core | 64GB RAM | 1070 GTX 8GB | Asus Prime B350-Plus
