V17.1b24 > Video Monitor Lookup LUT issue

When using a calibration LUT on an external monitor being fed from an intensity pro, the edit and cut page viewers will appear flat as if you are working with log footage.

To start here is how things are working with no LUT applied to Settings > Color Management > Video Monitor Lookup Table.

Default, no LUT applied, Color page and monitor

Default, no LUT applied, Color page and monitor

PXL_20210315_203032281 (Large).jpg (374.8 KiB) Viewed 773 times

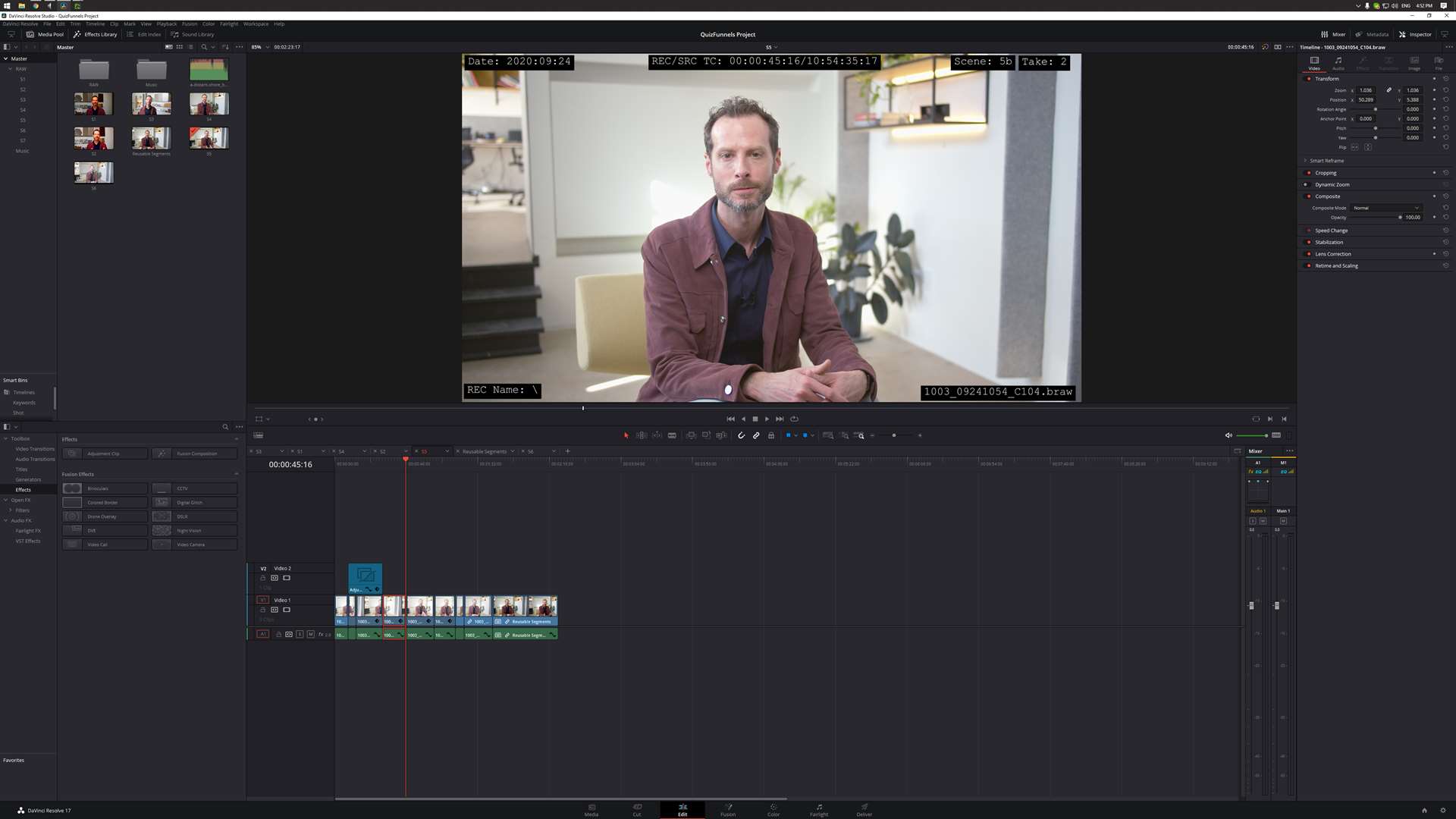

Edit page with no LUT applied to VMLUT

Edit page with no LUT applied to VMLUT

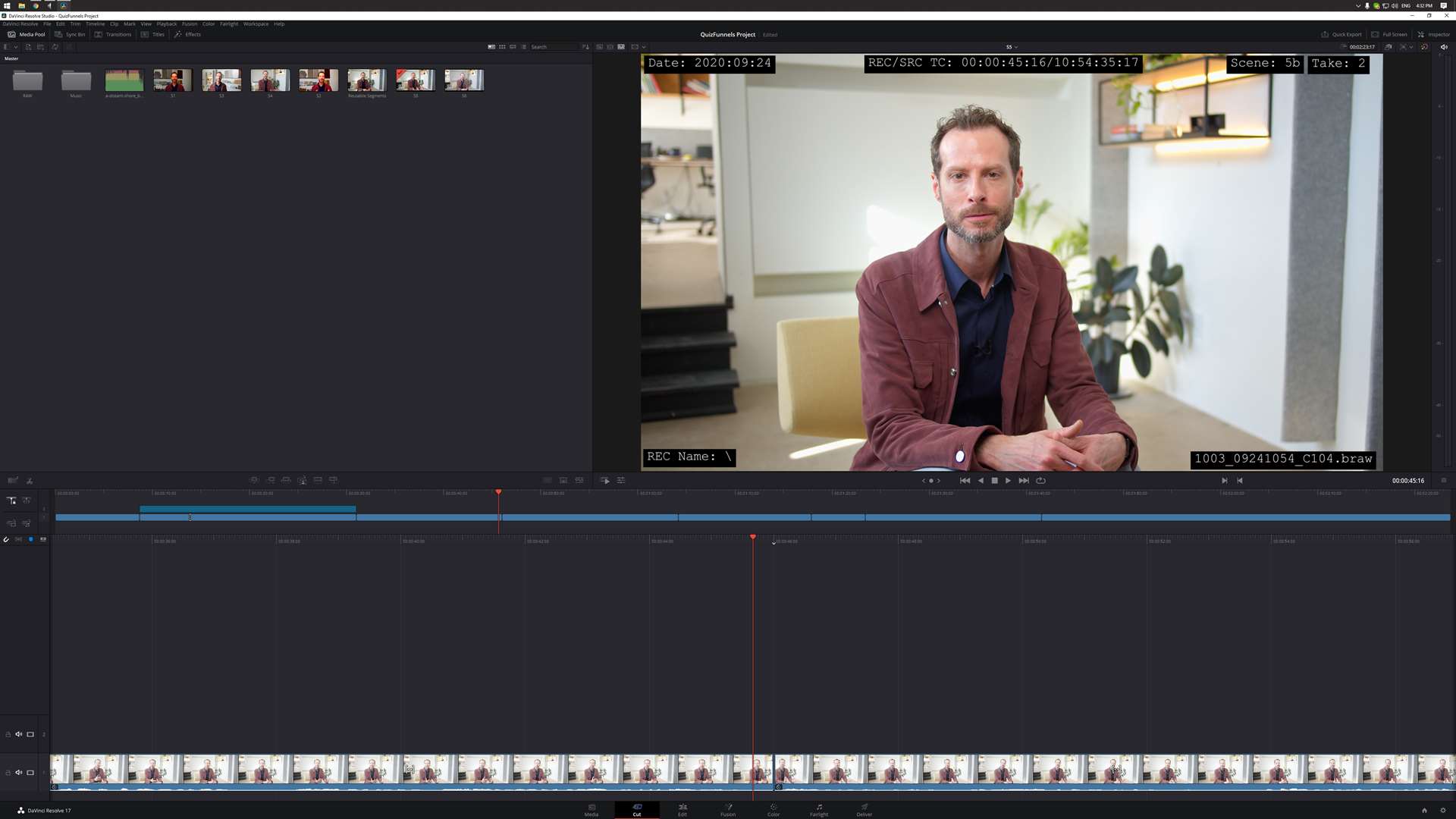

Cut page with no LUT applied to VMLUT

Cut page with no LUT applied to VMLUT

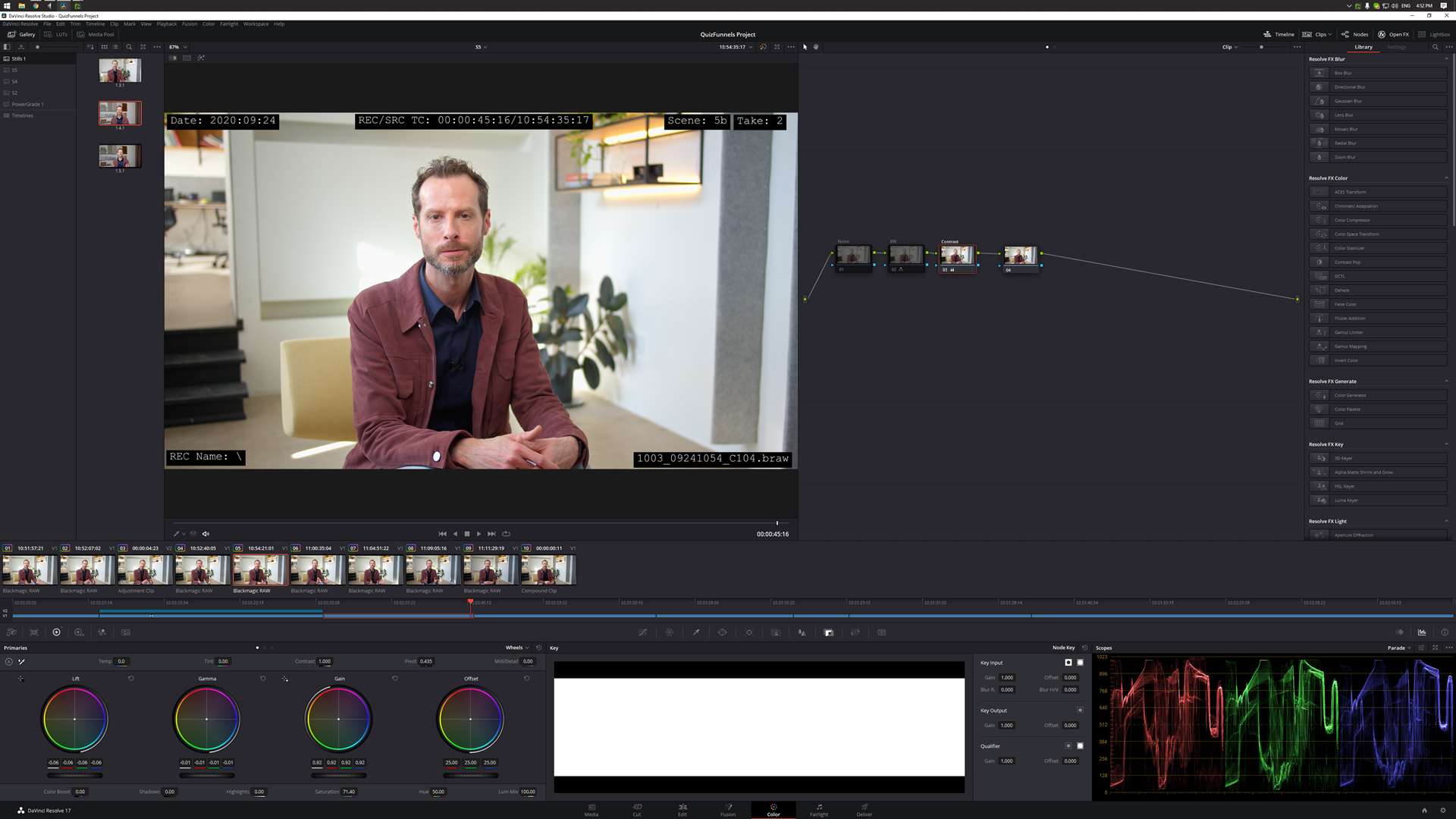

Color page with no LUT applied to VMLUT

Color page with no LUT applied to VMLUT

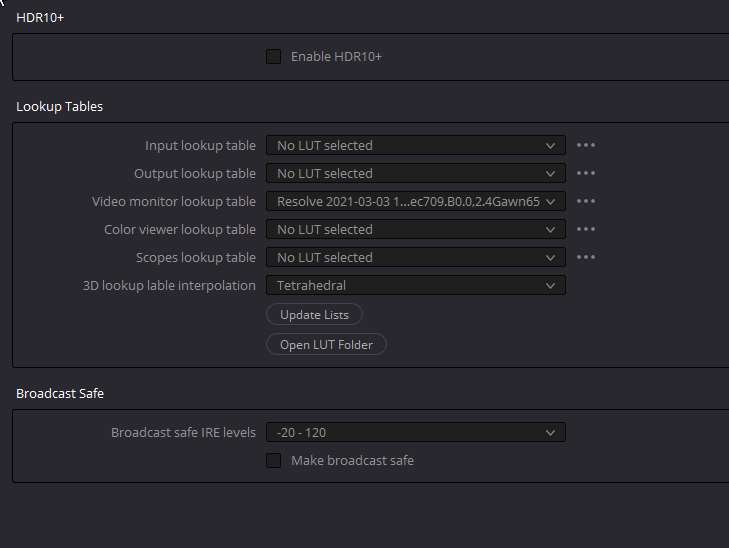

Applied LUT to VMLUT and disabled Color Viewer Lookup Table. My PC monitor is already calibrated. Leaving this at default throws the PC colour out of whack and renders do not match your grade. Why this is default I don't know. Same for Scopes Lookup Table. I need to see the source scope, not anything affected by a LUT.

Applied LUT to VMLUT

2021-03-15 16_46_20-Project Settings.jpg (26.67 KiB) Viewed 769 times

External monitor now matches viewer on color page (may not look like it in the pic but it does to my eyes. That's cell cameras for you)

External monitor now matches viewer on color page


Colour page viewer looks great

Colour page viewer looks great


Edit page looks like LOG footage

Edit page looks like LOG footage


Cut page looks like LOG footage

Cut page looks like LOG footage


I should also add that the sync between the colour page viewer and the Intensity Pro monitor is way out. Oddly enough the audio is in sync with the Intensity Pro rather than the colour page viewer.

Also need to point out that the "Color Viewer Lookup Table" and "Scopes Lookup Table" options will revert back to "Use Video Monitoring Selection" on restart regardless of whether you've saved the project with them set to "No LUT Selected".

Also need to point out that the "Color Viewer Lookup Table" and "Scopes Lookup Table" options will revert back to "Use Video Monitoring Selection" on restart regardless of whether you've saved the project with them set to "No LUT Selected".

I'm seeing this too and just logged it with Support.
