Font text looks 'jagged and pixelated' around the edges

Get answers to your questions about color grading, editing and finishing with DaVinci Resolve.
  • Author
  • Message
Offline

Tickle_ya_modem

  • Posts: 4
  • Joined: Tue Dec 06, 2022 8:48 am
  • Real Name: Alec Caird

Font text looks 'jagged' around the edges

PostTue Dec 06, 2022 8:55 am

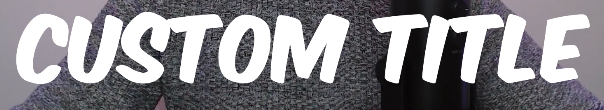

Hey all, hoping there's an easy fix for this; as you can see every text I make does not have smoothed out edges - thanks in advance! (see attached) :D

UPDATE:
Still having no luck; I'm using Text+ and have tried increasing size using 'TEXT' plus 'LAYOUT'
Attachments
Jagged edges.PNG
Jagged edges.PNG (26.25 KiB) Viewed 5403 times
Last edited by Tickle_ya_modem on Tue Dec 13, 2022 8:31 am, edited 1 time in total.
Offline

Challenger_Andy

  • Posts: 110
  • Joined: Fri Jan 29, 2021 6:22 pm
  • Real Name: Andy Brent

Re: Font text looks 'jagged' around the edges

PostTue Dec 06, 2022 5:47 pm

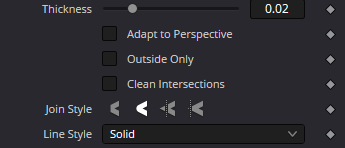

Are you using Text or Text+? Also, for the highest quality you should first increase the font size rather than the zoom in the video tab. If text+, trying toggling "Adapt to Perspective" or change the join style, or toggle options close to there.
Attachments
Join Style.png
Join Style.png (6.87 KiB) Viewed 5388 times
Contract Video Editor/Streaming/Gaming YouTuber
Resolve Studio 19 (Windows 10)
RTX 3070
Ryzen 7 5800
64GB RAM
Offline

Tickle_ya_modem

  • Posts: 4
  • Joined: Tue Dec 06, 2022 8:48 am
  • Real Name: Alec Caird

Font text looks 'jagged and pixelated' around the edges

PostTue Dec 13, 2022 9:36 am

Hey all, I'm having issues with text+ the outlines of the text look very low quality being pixelated and jagged in appearance. I've tried playing around with size of the font with no success. There's a very easy fix on after effects that's a click of a button away and hoping there's a similarly easy fix using davinci resolve. Thanks!
Offline

Jim Simon

  • Posts: 36143
  • Joined: Fri Dec 23, 2016 1:47 am

Re: Font text looks 'jagged and pixelated' around the edges

PostWed Dec 14, 2022 4:43 pm

What font? What size? What resolution timeline?
My Biases:

You NEED training.
You NEED a desktop.
You NEED a calibrated (non-computer) display.
Offline

Tickle_ya_modem

  • Posts: 4
  • Joined: Tue Dec 06, 2022 8:48 am
  • Real Name: Alec Caird

Re: Font text looks 'jagged and pixelated' around the edges

PostSat Dec 17, 2022 8:43 am

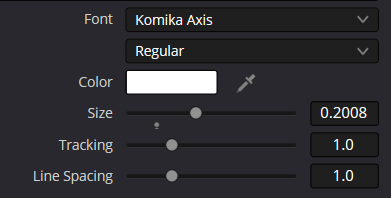

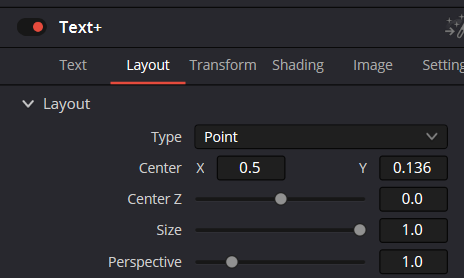

So it has a pixelated look with any text I use, but the intended text is Komika Axis (not a default text) - Played around with the text size under 'text' and 'layout' with no success! The timeline resolution is 1920x1080
Attachments
Image 2.PNG
Image 2.PNG (15.83 KiB) Viewed 5397 times
image 3.PNG
image 3.PNG (10.9 KiB) Viewed 5397 times
Offline

Peter Chamberlain

Blackmagic Design

  • Posts: 14929
  • Joined: Wed Aug 22, 2012 7:08 am

Re: Font text looks 'jagged and pixelated' around the edges

PostSat Dec 17, 2022 11:44 am

Is render res also HD?
Does the render look the same?
DaVinci Resolve Product Manager
Offline

Tickle_ya_modem

  • Posts: 4
  • Joined: Tue Dec 06, 2022 8:48 am
  • Real Name: Alec Caird

Re: Font text looks 'jagged and pixelated' around the edges

PostSun Dec 18, 2022 10:08 am

Hey, I tried rendering the video even though I haven't finished editing it; thanks for the suggestion, it actually looks like good quality after rendering it! It's a bit annoying having the jagged edges whilst editing but suppose I can work with it if it renders well hahaha
Offline

Peter Chamberlain

Blackmagic Design

  • Posts: 14929
  • Joined: Wed Aug 22, 2012 7:08 am

Re: Font text looks 'jagged and pixelated' around the edges

PostSun Dec 18, 2022 11:04 am

The default processing mode is “optimized for playback “ so u can turn that off in preferences if your system is capable, and get better but depth. Renders are always full bit depth., thus the difference
DaVinci Resolve Product Manager
Offline

Viktorab

  • Posts: 8
  • Joined: Wed Apr 03, 2024 1:49 pm
  • Real Name: Viktor Bogdanski

Re: Font text looks 'jagged and pixelated' around the edges

PostFri Apr 25, 2025 9:40 am

If anyone is still having the issue in their current project I might have a solutuion. In settings go to Image scaling - Resize filter and change those settings to "Smoother" (or try another). By default it will be "Sharper" and therefore the program might be trying to sharpening pixels that are not there (if you are zooming in on the text).

This helped me with external Alpha graphics from After Effects as well.

In the future I would suggest changing the font side instead of using zoom if you are using the text in the program.
