Duration of single frame clips

PostTue Apr 17, 2018 8:56 pm

Duration of single frame clips incorrect in Fusion.

Resolve clips based on a single frame like tiff or jpg are 1 frame long in Fusion regardless of the setting or the actual timeline length in Resolve.

It's impossible to extend the duration in Fusion by manipulating the media in the Keyframes window.
www.metafide.com - DaVinci Resolve™ Apps
Offline
User avatar

Sergey Mirontsev

  • Posts: 256
  • Joined: Sun Mar 12, 2017 9:18 am
  • Location: Moscow, Russia

Re: Duration of single frame clips

PostSat Apr 21, 2018 7:39 pm

Igor Riđanović wrote:Duration of single frame clips incorrect in Fusion.

Resolve clips based on a single frame like tiff or jpg are 1 frame long in Fusion regardless of the setting or the actual timeline length in Resolve.

It's impossible to extend the duration in Fusion by manipulating the media in the Keyframes window.


Just use Time Stretcher node next to image.
Blackmagic Design Certified Master Trainer

Blackmagic Pocket Cinema Camera (Samyang 12mm Cine, 35mm Cine)
DaVinci Resolve Studio 17.4.4.0007
Speed Editor 1.4.1
Windows 10 Pro 21H1, i7-7700, 32Gb RAM, SSD, GeForce GTX 1080 Ti 11Gb (471.68 Studio)
Offline

levisdavis

  • Posts: 170
  • Joined: Mon Apr 22, 2013 11:43 pm
  • Location: Phoenix, AZ

Re: Duration of single frame clips

PostTue Apr 24, 2018 7:49 am

That simply doesn't work.

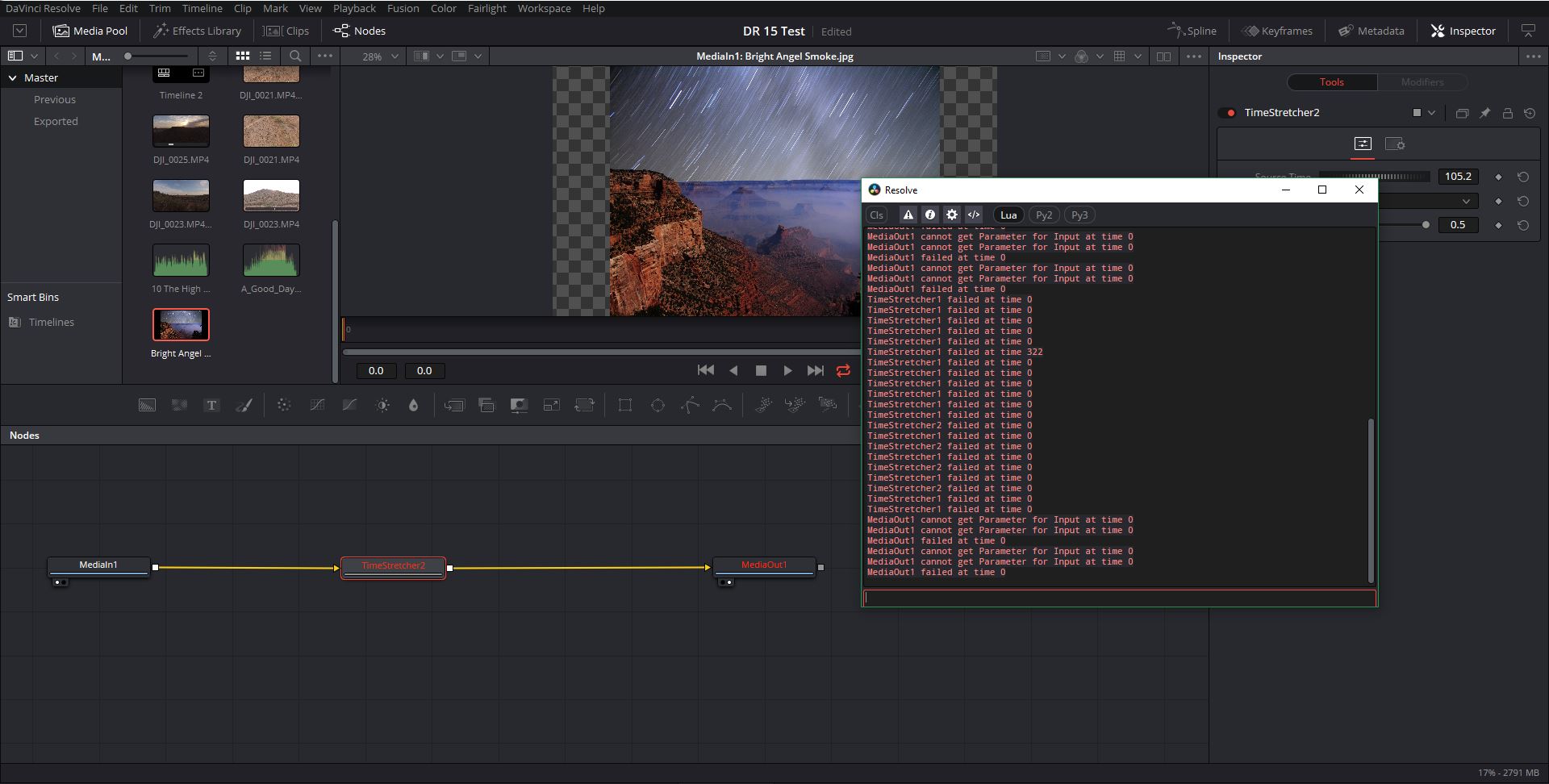

DR 15 Test.JPG
DR 15 Test.JPG (154.66 KiB) Viewed 2362 times
Levi Davis
Professional Imagery. Simple.
azcamera.biz
Offline

levisdavis

  • Posts: 170
  • Joined: Mon Apr 22, 2013 11:43 pm
  • Location: Phoenix, AZ

Re: Duration of single frame clips

PostTue Apr 24, 2018 7:55 am

As previously stated.
DR 15 Test 2.JPG
DR 15 Test 2.JPG (198.13 KiB) Viewed 2361 times


Windows 10 Pro
Latest Beta
Plenty of DDR4 Ram, SSD Disk Speed, 8GB DDR5
Levi Davis
Professional Imagery. Simple.
azcamera.biz
Offline
User avatar

Bryan Ray

  • Posts: 2618
  • Joined: Mon Nov 28, 2016 5:32 am
  • Location: Los Angeles, CA, USA

Re: Duration of single frame clips

PostTue Apr 24, 2018 2:45 pm

There was a piece missing from that suggestion. The Fusion comp will only be as long as the media from which it was created. Although the image has been held for a certain duration in the Timeline, it's still just one frame, so the comp is just one frame. Place a slug in a higher video track, then create the Fusion clip. The higher precendence of the slug will determine the comp length, and then the TimeStretcher will work to extend the still frame.

Hopefully a coming build will fix it so this kind of workaround isn't necessary.
Bryan Ray
http://www.bryanray.name
http://www.sidefx.com
Offline
User avatar

Sergey Mirontsev

  • Posts: 256
  • Joined: Sun Mar 12, 2017 9:18 am
  • Location: Moscow, Russia

Re: Duration of single frame clips

PostTue Apr 24, 2018 7:24 pm

I thought that you need to add an image to already created comp.
I use Text+ for this purpose.
Stretch to the required length, disconnect MediaIn and add the right stuffing.

PS: Bryan, thank you for notes. :)
