R15b5 : FUSION : Track Hanging

PostMon Jun 25, 2018 12:48 am

Are there any tips on how to increase the chance of a FUSION Tab CameraTrack being able to Solve the Auto Track without Hanging?

+) I've tried using lower resolution footage (eg 1080p footage from an Ipad)
+) I've tried using short clips (eg 100 frames)
+) I've tried limiting to Track points to those with a minimum track length of 15 & 300ish track points

Symptoms:

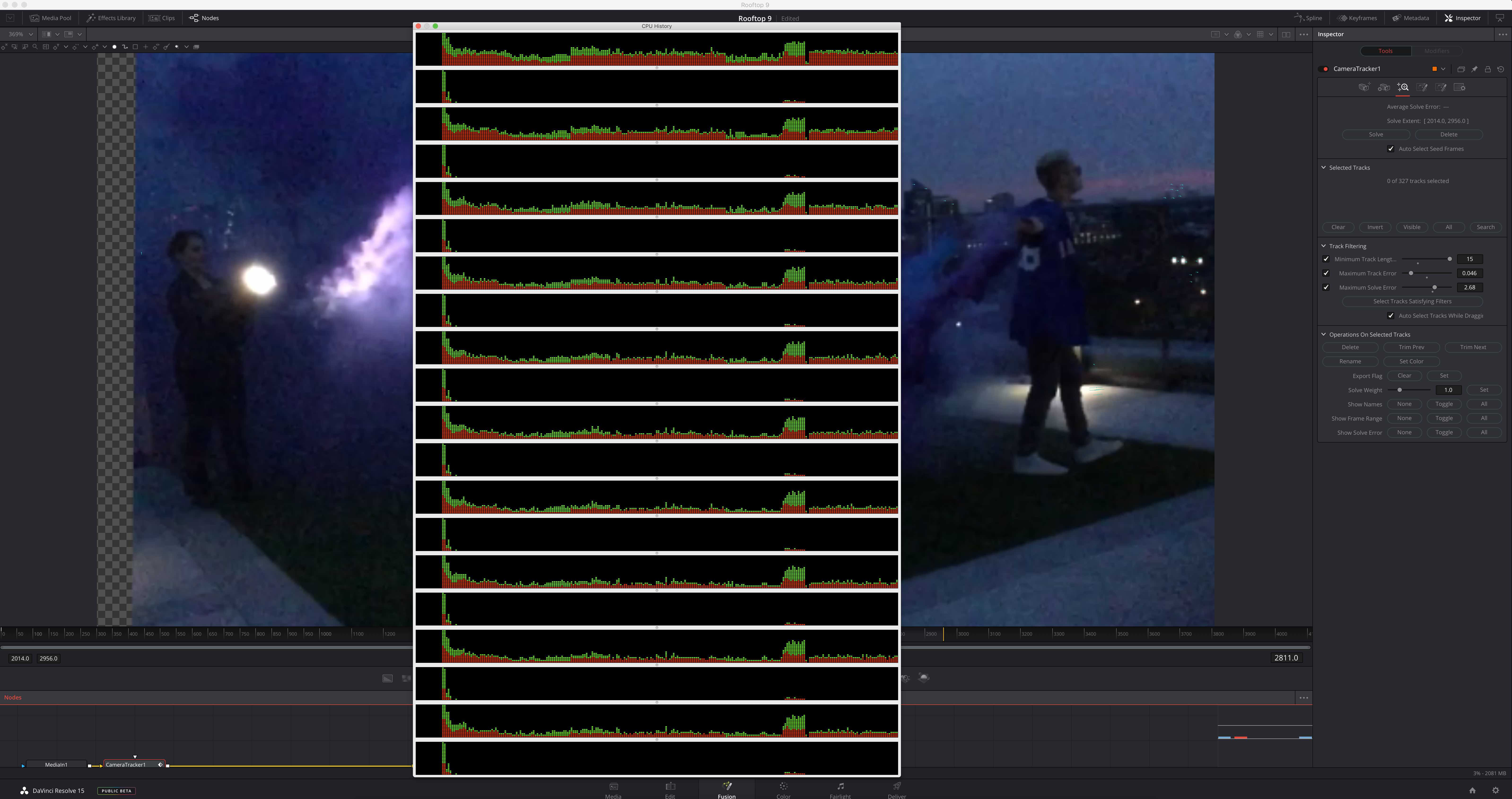

+) When Solve is clicked -> popup shows progress to 99% -> the Popup Closes
+) Resolve then hangs (ie no 'Solve Error' is calculated - and processing continues indefinitely - mostly on one core)

MISC : I note that FUSION is able to process shorter clips (say 15-30 frames).
It just struggles when the clip is more than couple of seconds.

Has anyone else had any success with FUSION Tracking inside Resolve?

AJ
Attachments
Resolve Studio : v16.1.2.026
Mac Pro (2013) : Catalina 10.15.3 : 3.0GHz 10-Core/64GB
Dual AMD FirePro D700 6GB
RRX : TB2 (Sonnet Echo Express III-D)
Camera : Monstro VV : 8K R3D : 4K UHD Timeline
Cache : Sys SSD / Clips & PJ : Areca 24TB
Offline
User avatar

Uli Plank

  • Posts: 25469
  • Joined: Fri Feb 08, 2013 2:48 am
  • Location: Germany and Indonesia

Re: R15b5 : FUSION : Track Hanging

PostMon Jun 25, 2018 6:42 am

Same here, 2017 iMac with 32 GB RAM and 8 GB VRAM.

Get's trough the tracking, but crashes after "Solve". The bug in the progress bar exists in Fusion 9 too, but there you don't get a crash after that.
My disaster protection: export a .drp file to a physically separated storage regularly.
www.digitalproduction.com

Studio 19.1.3
MacOS 13.7.4, 2017 iMac, 32 GB, Radeon Pro 580 + eGPU
MacBook M1 Pro, 16 GPU cores, 32 GB RAM, MacOS 14.7.2
SE, USM G3
Offline

Andrew Toul

  • Posts: 35
  • Joined: Wed Aug 02, 2017 7:57 pm

Re: R15b5 : FUSION : Track Hanging

PostMon Jun 25, 2018 5:26 pm

My tracker hangs as soon as I try either track FW or as soon as I try moving the tracker in a desired position to track.I used the tracker as a modifier for paint stroke and it crushes every time. The only reason I haven't report it yet (until I found similar posts) was because I tried that on a Mac Pro 3,1 AMD Radeon HD7950 10GB ram and blamed the low ram.
I will try it on my iMac 2017 and post the result too
BlackoutVFX
Offline

Antony Newman

  • Posts: 221
  • Joined: Sun Jun 14, 2015 10:00 am

Re: R15b5 : FUSION : Track Hanging

PostTue Jun 26, 2018 11:55 pm

200+ attempts at trying to get a TRACKER to SOLVE and Not Hang.

So far the only combination that I have found is:

+) Change from FUSION TRACKER to OPTICAL FLOW
+) Try and limit to under 40 Tracks
+) If you are tracking a clip more than 50 frames it will probably hang
+) It doesn't matter if you running Fusion in CPU or GPU.
+) It doesn't matter if you running Metal or Open CL
+) It doesn't matter if you are processing Monstro footage or Ipad
+) It doesn't help if you have 64GB of memory
+) Changing to Quarter Res Proxy reduces the chance of hang
+) Turning Caching off changed the point at which Hanging occurs.
+) Fastest way to see if it hanging is to press the Option key (eg Option S to save the project .. and then the pointer will be updated to a beachball if the App has hung)

SUMMARY : OPTICAL flow works (eventually!) [And actually didn't hang Twice in a row!]

AJ
Last edited by Antony Newman on Wed Jun 27, 2018 12:04 am, edited 2 times in total.
Resolve Studio : v16.1.2.026
Mac Pro (2013) : Catalina 10.15.3 : 3.0GHz 10-Core/64GB
Dual AMD FirePro D700 6GB
RRX : TB2 (Sonnet Echo Express III-D)
Camera : Monstro VV : 8K R3D : 4K UHD Timeline
Cache : Sys SSD / Clips & PJ : Areca 24TB
Offline

Antony Newman

  • Posts: 221
  • Joined: Sun Jun 14, 2015 10:00 am

Re: R15b5 : FUSION : Track Hanging

PostWed Jun 27, 2018 12:01 am

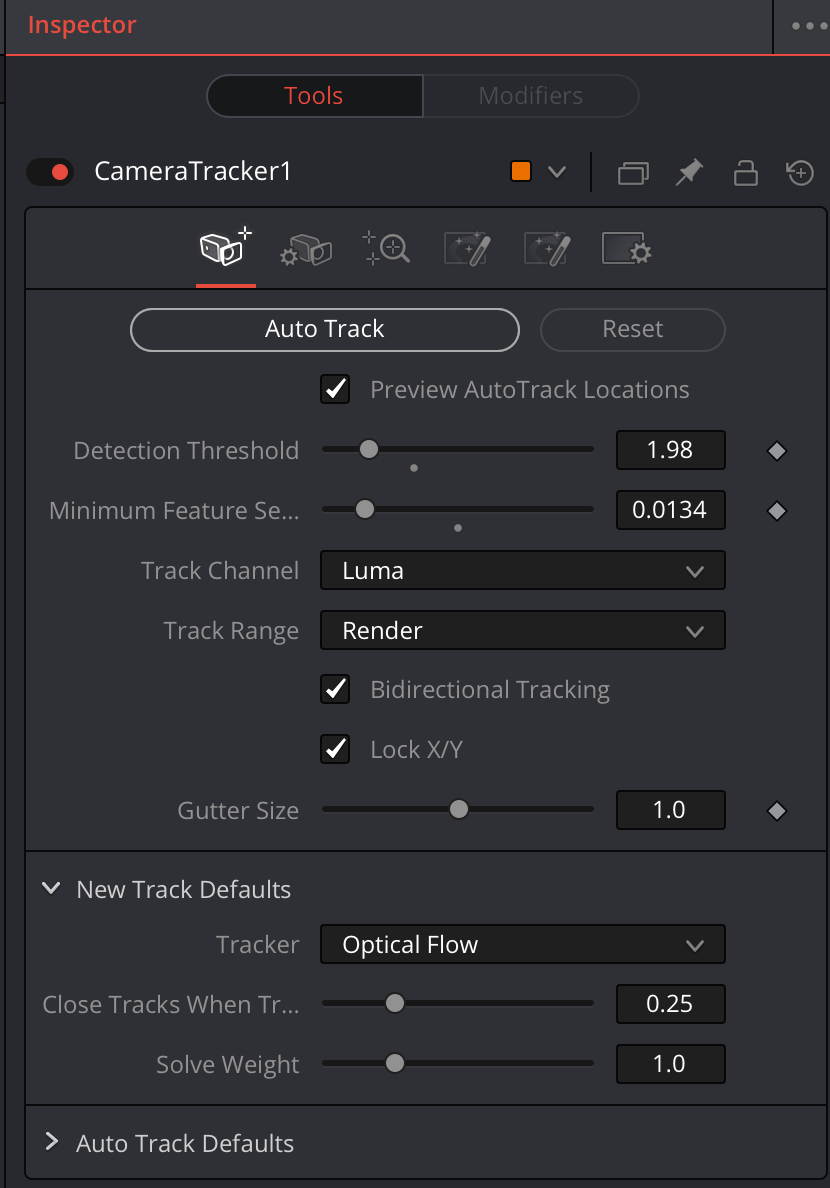

Here's the optical flow setting ...

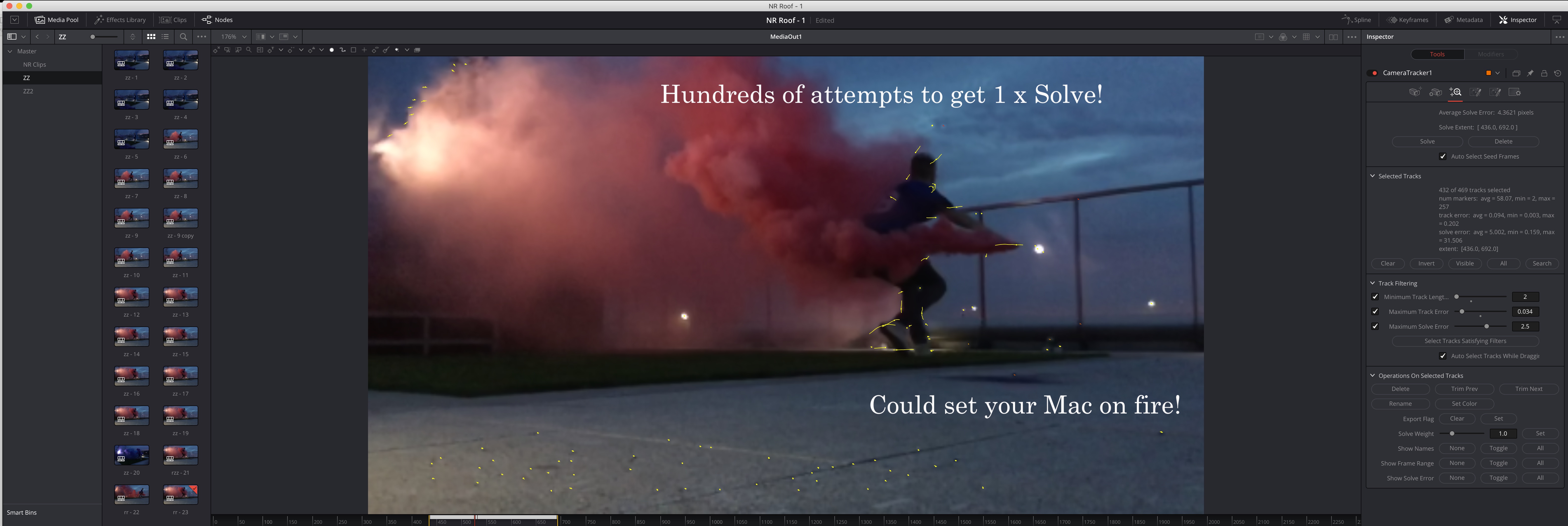

.. and proof that it actually solved!

AJ
Attachments
FUSION Guy on roof.jpg
FUSION Guy on roof.jpg (968.17 KiB) Viewed 812 times
Resolve Studio : v16.1.2.026
Mac Pro (2013) : Catalina 10.15.3 : 3.0GHz 10-Core/64GB
Dual AMD FirePro D700 6GB
RRX : TB2 (Sonnet Echo Express III-D)
Camera : Monstro VV : 8K R3D : 4K UHD Timeline
Cache : Sys SSD / Clips & PJ : Areca 24TB
