Text mask not applying to image

Learn about 3D compositing, animation, broadcast design and VFX workflows.
  • Author
  • Message
Offline

user4567

  • Posts: 5
  • Joined: Mon Mar 08, 2021 2:39 pm
  • Real Name: Giacomo Garelli

Text mask not applying to image

PostTue Apr 13, 2021 1:33 pm

Hello everyone,
I'm confused by the following behaviour:

    create a Background
    create a Text
    connect Text to mask Backgroud
    working

    Import Image
    create Text
    connect Text to mask Image
    not working

What am I doing wrong here?
Please see attached pics.

Thank you
Attachments
not working with image.PNG
Text mask not working using Image
not working with image.PNG (62.02 KiB) Viewed 134 times
working with background.PNG
Text mask is working using Background
working with background.PNG (64.23 KiB) Viewed 134 times
Image showing correctly
Offline

xunile

  • Posts: 1805
  • Joined: Mon Apr 23, 2018 5:21 am
  • Real Name: Eric Eisenmann

Re: Text mask not applying to image

PostTue Apr 13, 2021 6:29 pm

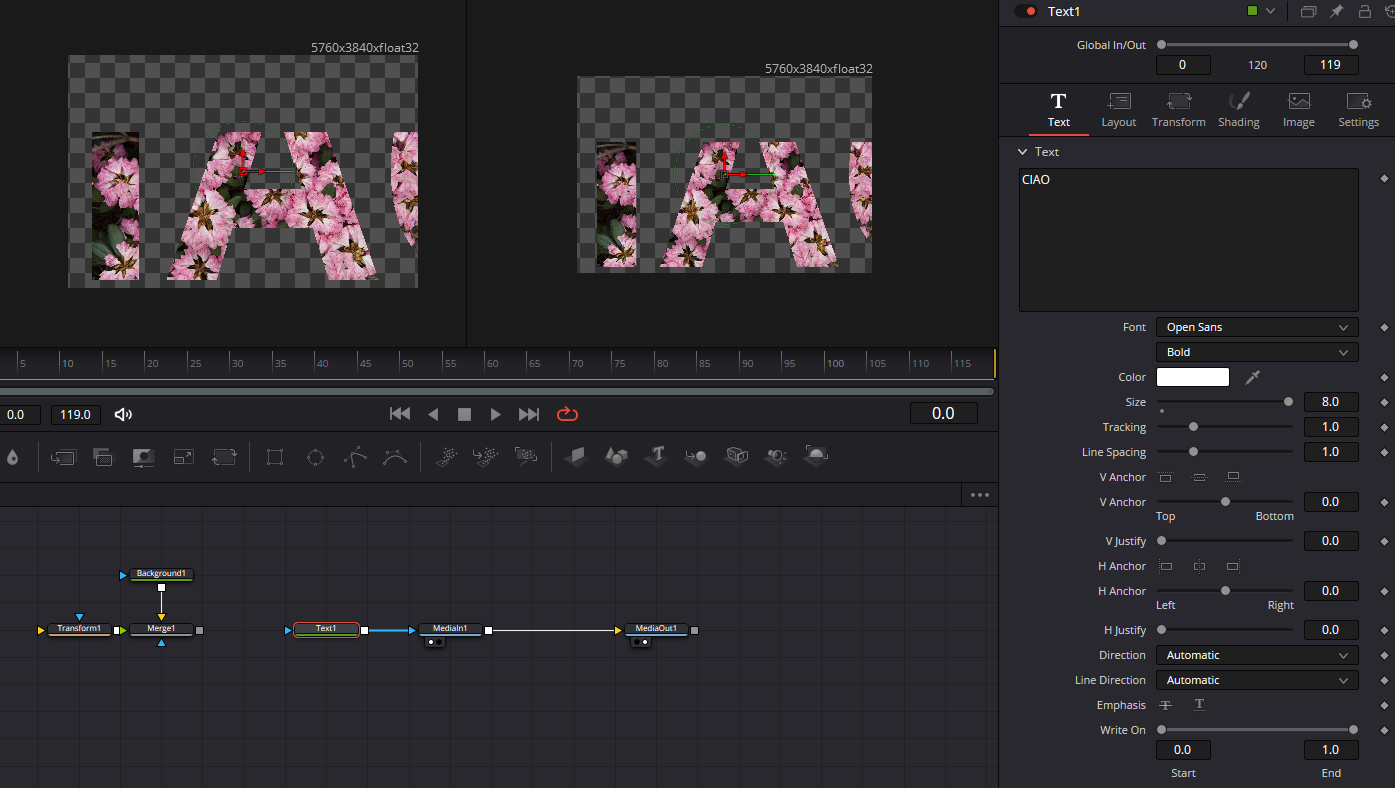

Your image size is way bigger than your Text+ node. You can merge your image with a Background node with its alpha set to zero so that the Text+ and image have the same dimensions, then it should work. I would also set the Image Scaling under the Projects Settings to Center Crop with no Resizing so your image is full size in Fusion without the transparent border around the edges. You can also change the size of the Text+ to match the dimensions of your image.
Attachments
2021-04-13 (1).png
2021-04-13 (1).png (642.04 KiB) Viewed 119 times
2021-04-13 (2).png
2021-04-13 (2).png (530.83 KiB) Viewed 119 times
Win 10 Home | Intel i7 - 10700f 64 GB 512 GB SSD
RTX-3060 12 GB | Resolve 17.1.1

Win 10 Home | Intel Core I7-7700HQ 32 GB 1 TB NVME SSD 1 TB SATA SSD
GTX-1060-6GB | Resolve 17.1.1
Offline

user4567

  • Posts: 5
  • Joined: Mon Mar 08, 2021 2:39 pm
  • Real Name: Giacomo Garelli

Re: Text mask not applying to image

PostWed Apr 14, 2021 1:19 pm

Thank you!
Yes, it makes sense that my image was way too big for the text to actually see the effect!
It's quite not the obvious tho, also because if I apply the text mask directly on the Image, it shows me the Text's outlines (weirdly stretched I must say..), as seen in picture.

Another strange behaviour is that if I try to scale the font up to the piont that it actually makes the mask visible, it has this strange behaviour. It seems somehow clipped, see picture.

Thank you for the bonus tip about Image Resizing, very useful as well! :mrgreen:
Attachments
text size up to show the mask
text mask on image
