Multilayer EXR layers not showing.

Learn about 3D compositing, animation, broadcast design and VFX workflows.
  • Author
  • Message
Offline

CSStudios

  • Posts: 1
  • Joined: Sat May 24, 2025 11:04 am
  • Real Name: Joe Harvey

Multilayer EXR layers not showing.

PostSat May 24, 2025 11:19 am

Apologies if this is the wrong place to ask this question.
Essentially I'm trying to import multilayer EXR files from Blender. I have 5 files in total, 3 of which work fine, but there's a problem with the other 2.
In fusion, I bring in all the EXR files and start to composite all the layers for the shot, but for some reason, 2 of the EXR files are stuck on the Ambient Occlusion layer (The layers are ordered alphabetically) as in no matter what layer I select, all it shows is the Ambient Occlusion layer. I have opened up the EXR files in Affinity Designer and checked to see all the layers have rendered correctly out of blender, so I'm assuming its a problem on resolves end in how it's reading the files.
I've tried changing the frame display mode. Sequence and Automatic seemingly make no difference, Individual seems to solve the issue, but obviously I would need to composite each frame which would take way too much time, and wouldn't make sense considering the other files are working. I'm assuming it's something simple but I'm honestly at a loss at how to fix this.
Please can someone help.
Offline
User avatar

goohoobler1

  • Posts: 86
  • Joined: Wed Jul 27, 2022 9:34 pm
  • Real Name: George Port

Re: Multilayer EXR layers not showing.

PostWed May 28, 2025 6:59 pm

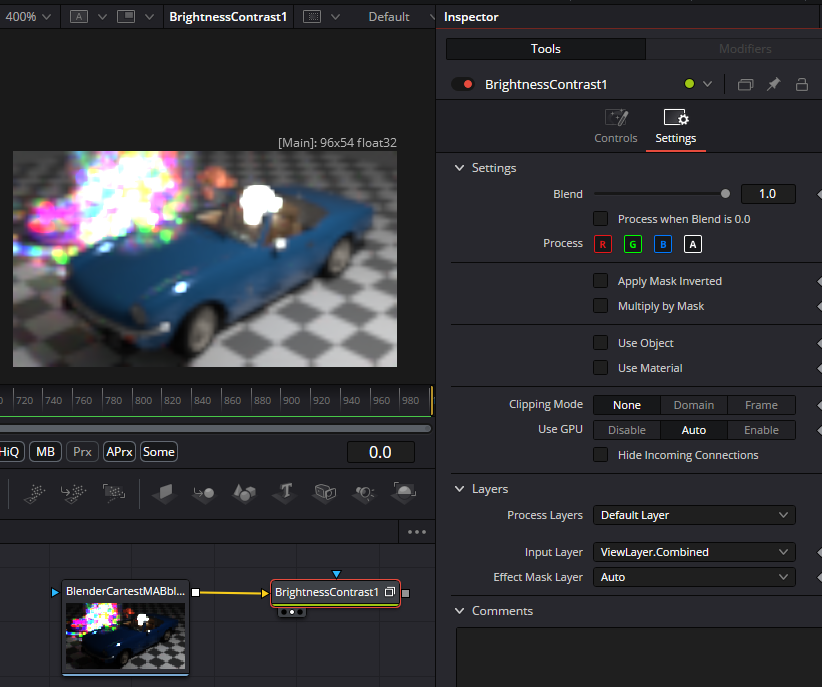

The new v20 Fusion Layer system means you can access any layer at any time and make that the active (aka [Main] or Default) layer:
On the next node from the Loader (eg a BrighnessContrast), you can go to the Settings tab and change the Input Layer from Auto to any Layer from the EXR.

Screenshot 2025-05-28 145225.png
Screenshot 2025-05-28 145225.png (207.21 KiB) Viewed 478 times

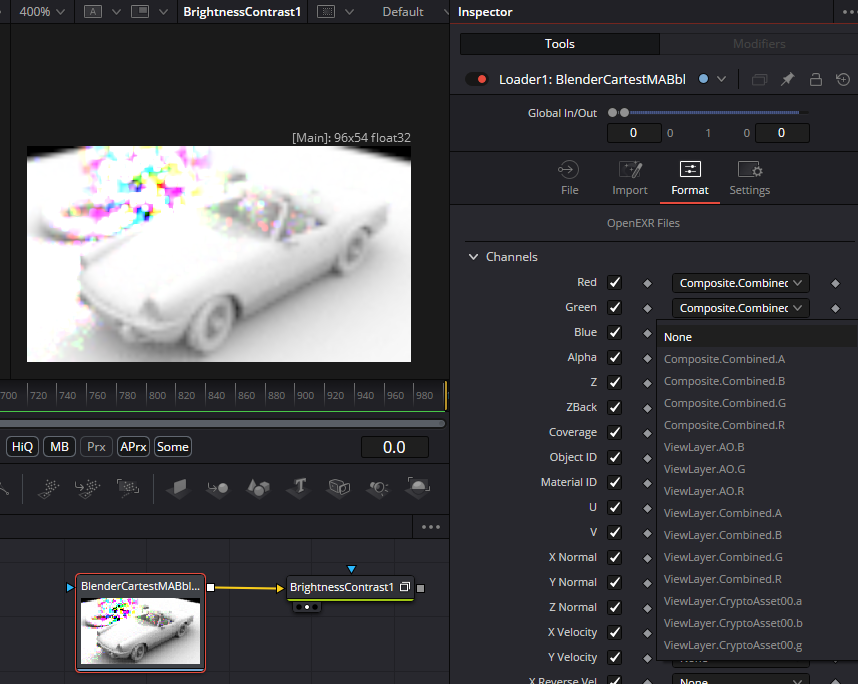

Or, the pre version 20 way is to go into the Loader node, then go to the Format tab and use the Channels dropdowns to access and reassign any Channels in the EXR to the RGB as well as setting up the Z, Velocities, normals, etc...

Screenshot 2025-05-28 145121.png
Screenshot 2025-05-28 145121.png (181.73 KiB) Viewed 478 times
Windows 11 Pro (22H2)
Intel(R) Core(TM) i7-3930K CPU @ 3.20GHz
64.0 GB RAM
Nvidia 4070Ti Super (16GB VRAM)
AMD Ryzen 3970X @ 3.69 GHz
128 GB RAM
Nvidia 3090 (24GB VRAM)
Resolve Studio / Fusion Studio v20.0 Release (Beta 4)
