multiChannel exr's in Fusion with Python

So in the same spirit of the generation video I did, I wanted to show how a handful of python scripts can make fusion shine with multi channel exr's. My hope is blackmagic sees this, and implements something similar, I actually like this workflow better than the nuke workflow. And I also hope it motivates people to learn a little python in fusion, because it can go a long way to making life happier

https://www.youtube.com/watch?v=FFiB9TdynMc&feature=youtu.be

for some reason, embedding the youtube video isn't working, so just copy the above link, if this doesn't work.

nice!

I use hos_SplitEXR scripts for it, but I just did some adjustments there to make it understand 3ds and Houdini's AOVs..

This looks great! Do you have some kind of recipes you can chose from for different renderers or scenarios? I tried to do something similar but it quickly become burden, from project to project, picking vray or arnold, easy or full assembly...

Do you have the scripts published somewhere? I would like to check how you handled the sync.

Thank you

I pretty much always just use the Lightwave renderer, so the basics are always the same, masks and other channels change, but the basics to build the scene are the same.

This is the sync Code, it's very straight forward, look at the active tool, get the clip name, look through all the other loaders, if they have the same name, make the settings match.

disclaimer, try this at your own risk, if it destroys your hard drive and gets your wife pregnant, I am not responsible

Code: Select all

#this will sync all loaders with the same clip name to the timing of the selected loader
import os

tool = comp.ActiveTool
loaders = comp.GetToolList()
GlobalIn = tool.GlobalIn[1]
GlobalOut = tool.GlobalOut[1]
TrimIn = tool.ClipTimeStart[1]
TrimOut = tool.ClipTimeEnd[1]
holdFist= tool.HoldFirstFrame[1]
holdLast= tool.HoldLastFrame[1]
revers = tool.Reverse[1]
loop = tool.Loop[1]
clip = tool.Clip[1]

comp.Lock() # Lock the comp so the GUI doesn't open up.
comp.StartUndo("LoaderSync")

for i in loaders.values():
    if i.GetAttrs()['TOOLS_RegID'] =='Loader':
        if i.Clip[1] ==clip:
            print(i.Clip[1])
            i.GlobalIn[1]=GlobalIn
            i.GlobalOut[1]=GlobalOut
            i.ClipTimeStart[1]=TrimIn
            i.ClipTimeEnd[1]=TrimOut
            i.HoldFirstFrame[1]=holdFist
            i.HoldLastFrame[1]=holdLast
            i.Reverse[1]=revers
            i.Loop[1]=loop
            i.Clip[1]=clip

comp.Unlock() # Lock the comp saver GUI doesn't open up.

comp.EndUndo(True)

Hi Chris,
Thanks for the script. It looks like it will owerwrite all Loaders in comp, correct?

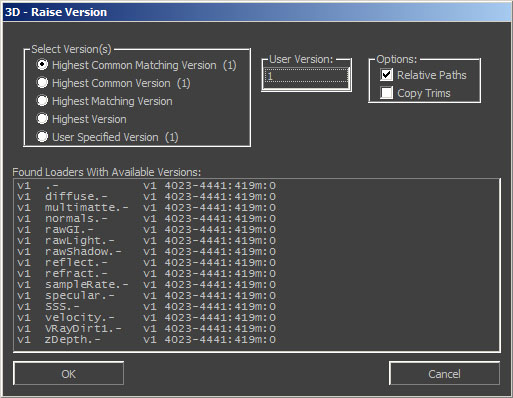

Here is what I use to version up/down CG renders. It tries to check for all versions on drive and let's you choose which version to use. You need to select one loader for script to get base path.

Warning, Lua code ahead...

Code: Select all

------------------------------------------------------------------------------
-- 3D - Raise Version
--
-- based on import directory script
--
-- reads path from selected loader and removes last directory from it, this is our search path
-- this last (removed) directory contains version number (last group of numbers in directory name)
-- search drive for all clips loadable to fusion that are on search path
-- for each loader in comp, compare loader path with search path, matching loaders are candidates to raise version
-- change paths to loaders only if all of them have higher version with the same length and no missing frames
--
-- Jirka Sindelar
------------------------------------------------------------------------------


-- data structures:


--- loaderTable: (list of all loaders in comp)

-- for each loader:
--       attrs (loader atributes)
--       tool (loader handle)
--       toChange (true if loader matches selected loader path)
--       knownindex  (numeric index to corresponding file in known tab (which is list of clips on harddisk)
--       versionTbl   (details about version, derived from loader clip path
--         VersionNum  (version as number -> 3)
--         FullPath  ( -> "F:\3dTemp\3D\ver_003\")
--         Version  (version as string -> "ver_003")
--         VersionStr  ( -> "ver_")
--         VersionNumPad  (version as string -> 3)
--         Element   ( -> "3D")
--         ElementPath  ( -> "F:\3dTemp\3D\")


--- known: (list of clips on harddisk)

-- for each clip:
--      file (path for loader clip, first frame for sequences -> "F:\3dTemp\3D\ver_005\masterLayer.diffuse.0001.exr")
--      term (matching pattern for sequences -> "F:\3dTemp\3D\ver_005\masterLayer.diffuse.exr")
--      category ("seq" -> sequence of image formats / "multi" -> multiframe file format / "single" -> image format, only one frame)
--      layer (cleanname before . -> "masterLayer")
--      pass (cleanname after . -> "diffuse")
--      numMin (smallest number in sequence)
--      numMax (biggest number in sequence)
--      numSum (number of frames in sequence, for hole detection)
--      versionTbl (same as in loaderTable)
--      corresponding (table of indexes to other items in known table that are same clips with different version)
--         pos (index to other item)
--         version (same as of known[pos].versionTbl.VersionNum)
--         numbersMatch (true if numMin, numMax and numSum matches)




-- for func is_known_format
local known_extensions = { ".fbx", ".dae", ".obj", ".3ds", ".dxf" }

-- for ui - loaders with available versions
function UpdateList(list, data)

   list[1] = nil      -- clears the list
   local Cnt = table.getn(data)
   for i=1, Cnt do
      list[tostring(i)] = data[i]
   end
end

-- for ui - available versions
function UpdateVersionsAvailable(list, data)

   list[1] = nil      -- clears the list
   local Cnt = table.getn(data)
   for i=1, Cnt do
      list[tostring(i)] = data[i]
   end
end


------------------------------------------------------------------------------
-- FUNCTION is_known_format
--
-- use this function to determine if an extension matches a valid clip format for Fusion
-- expects a table of fusion registry values, and a string containing an extension, including the "."
-- returns an index of -1 if its contained within the 'known_extensions' table,
-- or the index to the entry in fmt_list that matches the extension, or nil
------------------------------------------------------------------------------


function is_known_format(ext)
   ext = string.lower(ext)
   for j, ext2 in pairs(known_extensions) do
      if ext2 == ext then
         return -1
      end
   end

   for i, v in pairs(fmt_attrs) do
      for j, ext2 in pairs(v.REGST_MediaFormat_Extension) do
         if string.lower(ext2) == ext then
            return i
         end
      end
   end

   return nil
end

------------------------------------------------------------------------------
-- FUNCTION doInsert
--
-- used to determine if the table seq describes a clip we already know
-- if not, then we check to see if it is a loadable clip
-- if it is, then we return true
-- if the clip is not multi frame (like avi) and it has a sequence number then we
-- also indicate that this should be added to the known table
------------------------------------------------------------------------------
local function doInsert(seq, known)
   index = is_known_format(seq.Extension)

   if index then
      if index < 0 then
         return true, nil
      else
         attrs = fmt_attrs[index]
         if attrs.REGB_MediaFormat_CanLoadMulti == true then
            info = {}
            --info.isknown = true
            info.numMin =  -1
            info.numMax =  -1
            info.numSum =  -1
            info.category =  "multi"
            info.file = seq.FullPath
            return true, info
          else
            if seq.Number == nil then
               info = {}
               --info.isknown = true
               info.numMin =  -1
               info.numMax =  -1
               info.numSum =  -1
               info.category =  "single"
               info.file = seq.FullPath
               return true, info
            else
               -- term is the clean name for comparison
               term = seq.Path..seq.CleanName..seq.Extension

               -- search for known file seq
               found = false
               for i, v in known do
                  if v.term == term then
                     if seq.Number < known[i].numMin then known[i].numMin = seq.Number end
                     if seq.Number > known[i].numMax then known[i].numMax = seq.Number end
                     known[i].numSum = known[i].numSum + 1
                     found = true
                  end
               end
               if found == false then
                  info = {}
                  --info.isknown = true
                  info.numMin =  seq.Number
                  info.numMax =  seq.Number
                  info.numSum =  1
                  info.category =  "seq"
                  info.term =  term
                  info.file = seq.FullPath
                  return true, info
               end
            end
         end
      end
   end
   return false, nil
end

------------------------------------------------------------------------------
-- doDirectories
--
-- function gets a path (ending in "\") and a mask (i.e. *.*)
-- recurses through the path building tables of clips, comps and settings
--
-------------------------------------------------------------------------------
function doDirectories(dir, mask)
   local path = dir..mask


   local files = readdir(path)

   if files == nil then print("   FAILED TO READ : "..string.lower(dir)) return end

   for i, f in ipairs(files) do

      if type(f)=="table" and f.IsDir == true then

         --if ret.Recurse == 1 then
         if true then
            doDirectories(dir..f.Name.."\\", mask)
         end

      else
         if type(f) == "table" then
            seq = eyeon.parseFilename(dir..f.Name)

            -- if we have no extension, we don't want to bother
            if seq.Extension then
               isclip, isknown = doInsert(seq, known)

               if isknown then
                  table.insert(known, isknown)
               end
            end
         end
      end
   end
end

------------------------------------------------------------------------------
-- oneUpDirectory
--
-- example path: x:\somwhere\deep\lies\3Dfolder\charactername\ver_001\something.0001.exr
-- example out: x:\somwhere\deep\lies\3Dfolder\charactername\
-- returns empty string if error (path too short)
------------------------------------------------------------------------------

function oneUpDirectory(pth)

   newpath = ""
   pathParts = eyeon.split(pth, "\\")
   if table.getn(pathParts) >= 3 then
      -- get one up directory
      for i, itm in pathParts do
         if i < table.getn(pathParts)-1 then
            newpath = newpath..itm.."\\"
         end
      end
   end
   return newpath
end


------------------------------------------------------------------------------
-- splitToPathAndVersion
--
-- example path: x:\somwhere\deep\lies\3Dfolder\charactername\ver_001\
--
-- FullPath = x:\somwhere\deep\lies\3Dfolder\charactername\ver_001\
-- ElementPath = x:\somwhere\deep\lies\3Dfolder\charactername\
-- Element = charactername
-- Version = ver_001
-- VersionStr = ver_
-- VersionNum = 1
-- VersionNumPad = 3
------------------------------------------------------------------------------
function splitToPathAndVersion(pth)

   local out = {}
   -- no version
   version = ""
   versionSnum = ""
   versionNum = -1
   versionNumPad = -1
   versionString = ""
   -- no element
   element = ""


   -- path divide (last char is backslash)
   pathParts = eyeon.split(pth, "\\")
   if table.getn(pathParts) >= 3 then
      element = pathParts[table.getn(pathParts)-2]
      version = pathParts[table.getn(pathParts)-1]

      -- get one up directory
      newpath = ""
      for i, itm in pathParts do
         if i < table.getn(pathParts)-1 then
            newpath = newpath..itm.."\\"
         end
      end

      -- get version number
      string.gsub(version, "^(.-)(%d+)$", function(name, SNum) versionString = name versionSnum = SNum end)
      if versionSnum then
         versionNum = tonumber(versionSnum)
         versionNumPad = string.len(versionSnum)
      end
   end

   -- out
   out.FullPath = pth
   out.ElementPath = newpath
   out.Element = element
   out.Version = version
   out.VersionStr = versionString
   out.VersionNum = versionNum
   out.VersionNumPad = versionNumPad

   return out
end

------------------------------------------------------------------------------
-- findCorrespondingClips
--
-- for every clip in known tab, add list of corresponding indexes
-- ElementPath, layer and pass must match
-- numMin, numMax, numSum match or not
------------------------------------------------------------------------------
function findCorrespondingClips(known)

   for i,v in pairs(known) do

      corresponding = {}
      for j,compareV in pairs(known) do
         -- skip self compare
         if j ~= i then
            corrItem = {}
            if compareV.versionTbl ~= nil then
               if v.versionTbl.ElementPath == compareV.versionTbl.ElementPath and v.layer == compareV.layer and v.pass == compareV.pass then
                  -- found similar path, now compare numbers
                  numbersMatch = false
                  if v.numMin == compareV.numMin and v.numMax == compareV.numMax and v.numSum == compareV.numSum then
                     numbersMatch = true
                  end
                  corrItem.pos = j
                  corrItem.numbersMatch = numbersMatch
                  corrItem.version = compareV.versionTbl.VersionNum
                  table.insert(corresponding, corrItem)
               end
            end
         end
      end
      known[i].corresponding = corresponding
   end
end

------------------------------------------------------------------------------
-- findCorrespondingClipsPlus
--
-- for every clip in known tab, add list of corresponding indexes
-- ElementPath, layer and pass must match
-- numMin, numMax, numSum match or not

-- adds also selfreference that is skipped in findCorrespondingClips
------------------------------------------------------------------------------
function findCorrespondingClipsPlus(known)

   for i,v in pairs(known) do

      corresponding = {}
      for j,compareV in pairs(known) do
            corrItem = {}
            if compareV.versionTbl ~= nil then
               if v.versionTbl.ElementPath == compareV.versionTbl.ElementPath and v.layer == compareV.layer and v.pass == compareV.pass then
                  -- found similar path, now compare numbers
                  numbersMatch = false
                  if v.numMin == compareV.numMin and v.numMax == compareV.numMax and v.numSum == compareV.numSum then
                     numbersMatch = true
                  end
                  corrItem.pos = j
                  corrItem.numbersMatch = numbersMatch
                  corrItem.version = compareV.versionTbl.VersionNum
                  table.insert(corresponding, corrItem)
               end
            end
            if j ~= i then
               known[j].VersionNum = compareV.versionTbl.VersionNum
            end
      end
      known[i].corresponding = corresponding
   end
end
------------------------------------------------------------------------------
-- makeVersionList
--
-- makes list of all versions for all selected loaders
-- loader 1 has version 1 and 2, loader2 has version 1 and 5
-- outputs sorted list -> {1,2,5}
------------------------------------------------------------------------------
function makeVersionList(loaderTable, known)
   versionList = {}
   for j, pickedLoader in loaderTable do
      if pickedLoader.toChange then
         for i, tst in known[pickedLoader.knownindex].corresponding do
            --if tst.numbersMatch then
               if versionList[tst.version] ~= nil then
                  versionList[tst.version] = versionList[tst.version] + 1
               else
                  versionList[tst.version] = 1
               end
            --end
         end
      end
   end

   versionListSorted = {}
   for i, v in pairs(versionList) do
      table.insert( versionListSorted, i )
   end
   table.sort(versionListSorted)

   return versionListSorted
end

------------------------------------------------------------------------------
-- makeListing
--
-- creates formated output for table of picked loaders and their versions
------------------------------------------------------------------------------
function makeListing(loaderTable, known, versionList)
   -- find min and max version
   lst = {}
   local tempList = {}

   -- format strings and save them to tempList
   for j, pickedLoader in loaderTable do
      if pickedLoader.toChange then
         oneline = {}
         k = known[pickedLoader.knownindex]
         verstr = tostring(k.versionTbl.VersionNum)
         nmestr = k.layer.."."..k.pass
         --line = verstr.." "..nmestr..string.rep(" ", 25 - string.len(nmestr))
         oneline.nmestr = nmestr
         oneline.verstr = verstr
         oneline.numtab = {}
         for i, v in  k.corresponding do
            holes = known[v.pos].numMax - known[v.pos].numMin + 1 - known[v.pos].numSum
            onestr = "v" .. tostring(v.version) .. " " .. tostring(known[v.pos].numMin) .. "-" .. tostring(known[v.pos].numMax) .. ":" .. tostring(known[v.pos].numSum) .. "m:" .. holes
            table.insert(oneline.numtab, onestr)
         end
         table.insert(tempList, oneline)
      end
   end

   -- find max chars for each column
   maxverstr = 1
   maxnmestr = 5
   maxonestr = 3
   for j, lne in tempList do
      if string.len(lne.verstr) > maxverstr then maxverstr = string.len(lne.verstr) end
      if string.len(lne.nmestr) > maxnmestr then maxnmestr = string.len(lne.nmestr) end
      for i, nm in lne.numtab do
         if string.len(nm) > maxonestr then maxonestr = string.len(nm) end
      end
   end
   maxverstr = maxverstr + 2
   maxnmestr = maxnmestr + 2
   maxonestr = maxonestr + 2

   -- create table with aligned columns
   for j, lne in tempList do
      line = ""
      line = "v"..lne.verstr..string.rep(" ", maxverstr - string.len(lne.verstr))
      line = line .. lne.nmestr..string.rep(" ", maxnmestr - string.len(lne.nmestr))
      for i, nm in lne.numtab do
         line = line .. nm..string.rep(" ", maxonestr - string.len(nm))
      end
      table.insert(lst, line)
   end

   return lst
end

function getNewLoaderName(v)
   -- v is one item of known list

   lyr = v.layer
   if v.layer == "masterLayer" then lyr = "mL" end
   if v.layer == "-" then lyr = "" end
   nm = "v"..tostring(v.VersionNum).."_"..lyr.."_"..v.pass

   return nm
end

function changeOneLoader(pickedLoader, knownItem)

   handle = pickedLoader.tool
   clip = knownItem.file
   name = getNewLoaderName(knownItem)
   attrs = pickedLoader.attrs

   -- set new name
   handle:SetAttrs({TOOLB_NameSet=true})
   handle:SetAttrs({TOOLS_Name = name})

   -- set new clip (TODO restore pass state!!!)
   handle:SetAttrs({TOOLB_PassThrough = true})

   -- editing params
   cl = 1 -- ignores cliplist, expects only one clip
   tm = attrs.TOOLNT_Clip_Start[cl]
   tm = 1

   if tgl_relativePaths.value == "ON" then
      handle.Clip[tm] = ReverseMapPath(clip)
   else
      handle.Clip[tm] = clip
   end

   origK = known[pickedLoader.knownindex]
   origLn = origK.numMax - origK.numMin + 1
   newLn = knownItem.numMax - knownItem.numMin + 1
   --print("origK.numMax "..origK.numMax.." knownItem.numMax "..knownItem.numMax)
   if tgl_copyTrims.value == "ON" or origLn == newLn then
      handle.GlobalOut[tm]      = attrs.TOOLNT_Clip_End[cl]
      handle.GlobalIn[tm]         = attrs.TOOLNT_Clip_Start[cl]
      handle.HoldLastFrame[tm]   = attrs.TOOLIT_Clip_ExtendLast[cl]
      handle.HoldFirstFrame[tm]   = attrs.TOOLIT_Clip_ExtendFirst[cl]
      handle.ClipTimeStart[tm]   = attrs.TOOLIT_Clip_TrimIn[cl]
      handle.ClipTimeEnd[tm]      = attrs.TOOLIT_Clip_TrimOut[cl]
   else
      diff = origLn - newLn
      globOut = attrs.TOOLNT_Clip_End[cl]
      holdLast = attrs.TOOLIT_Clip_ExtendLast[cl]
      trimOut = attrs.TOOLIT_Clip_TrimOut[cl]
      --print("gout "..globOut.." holdLast "..holdLast.." trimOut "..trimOut)
      if diff > 0 then
         -- new clip is shorter then old one, prolong to orig
         holdLast = holdLast + diff
      else
         -- new clip is longer then old one
         if trimOut == origLn then
            -- old clip had no trim out (ie trimout was clip length)
            trimOut = newLn
            globOut = globOut + (-1*diff)
         else
            if trimOut < origLn then
               -- make new clip shorter from end by as many frames as old one
               trimOut = newLn - (origLn - trimOut)
               globOut = globOut + (-1*diff) - (origLn - trimOut)
            else
               -- make new clip longer
               trimOut = newLn - (origLn - trimOut) + 1 -- trim out value is one frame less then on interface?!!
               globOut = globOut + (-1*diff) - (origLn - trimOut)
            end
         end
      end
      handle.GlobalOut[tm]      = globOut
      handle.GlobalIn[tm]         = attrs.TOOLNT_Clip_Start[cl]
      handle.HoldLastFrame[tm]   = holdLast
      handle.HoldFirstFrame[tm]   = attrs.TOOLIT_Clip_ExtendFirst[cl]
      handle.ClipTimeStart[tm]   = attrs.TOOLIT_Clip_TrimIn[cl]
      handle.ClipTimeEnd[tm]      = trimOut
      --print ("gout "..globOut.." holdLast "..holdLast.." trimOut "..trimOut)
   end

   if attrs.TOOLBT_Clip_Reverse then handle.Reverse[tm] =0 else handle.Reverse[tm]=1 end
   if attrs.TOOLBT_Clip_Loop then handle.Loop[tm] = 0 else handle.Loop[tm] = 1 end

   handle:SetAttrs({TOOLB_PassThrough = false})
end


function changeLoaders(mode, ver, loaderTable, known)

   knownItem = nil

   for j, pickedLoader in loaderTable do
      if pickedLoader.toChange then

         if mode == "maxM" then
            ver = known[pickedLoader.knownindex].maxVersionMatching
            knownItem = known[known[pickedLoader.knownindex].maxVersionMatchingPos]
         end
         if mode == "max" then
            ver = known[pickedLoader.knownindex].maxVersion
            knownItem = known[known[pickedLoader.knownindex].maxVersionPos]
         end
         if mode == "maxCM"  or mode == "maxC" or mode == "usr" then
            -- ver from parameter
            -- find knownitem by version number
            corr = known[pickedLoader.knownindex].corresponding
            for i, corritm in corr do
               if corritm.version == ver then
                  knownItem = known[corritm.pos]
               end
            end
         end

         --       (smallest number in sequence)
         --      numMax (biggest number in sequence)
         --      numSum (number of frames in sequence, for hole detection)

         if knownItem ~= nil and ver ~= -1 then
            changeOneLoader(pickedLoader , knownItem)
         end

      end
   end

   if versionTool ~= nil then
      print(tostring(ver))
      versionTool.FieldValue[TIME_UNDEFINED] = "ver "..tostring(ver)
   end
end

-- for debug, dumps just picked loaders and their corresponding known item
function dumpPickedLoaders(loaderTable)
   for j, pickedLoader in loaderTable do
      if pickedLoader.toChange then
         print("*********************************")
         dump(pickedLoader.versionTbl)
         print ("---")
         dump(known[pickedLoader.knownindex])
      end
   end
end

------------------------------------------------------------------------------
-- main
------------------------------------------------------------------------------

print("3D Raise Version script")
print("-----------------------\n")



fa = composition:GetAttrs()
loaderPathList = {}

fmt_list = fusion:GetRegList(CT_ImageFormat)
fmt_attrs = {}
for i,v in pairs(fmt_list) do
   fmt_attrs[i] = fmt_list[i]:GetAttrs()
end

loaderTable = {}
-- get all loaders
versionTool = nil
versionAttrs = nil

tllist = composition:GetToolList(false)
for i, tool in tllist do
   attrs = tool:GetAttrs()
   if attrs["TOOLS_RegID"] == "Loader" then
      oneLoader = {}
      oneLoader.tool = tool
      oneLoader.attrs = attrs
      oneLoader.toChange = false
      table.insert(loaderTable, oneLoader)
   end
   if attrs["TOOLS_RegID"] == "Fuse.SetMetaData" then
      if attrs["TOOLS_Name"] == "ANIMEVER" then
         if tool.FieldName[TIME_UNDEFINED] == "InputSerial" then
            versionTool = tool
            versionAttrs = attrs
         end
      end
   end
end

loaderTableSel = {}
-- get selected loader(s)
toollistSel = composition:GetToolList(true)
for i, tool in toollistSel do
   attrs = tool:GetAttrs()
   if attrs["TOOLS_RegID"] == "Loader" then
      table.insert(loaderTableSel, tool)
   end
end
local ldrCntSel = table.getn(loaderTableSel)

if ldrCntSel == 0 then
   print("No loader selected, exiting...")
   return
end

-- get attributes of selected loader
attrs = loaderTableSel[1]:GetAttrs()
if ldrCntSel > 1 then
   print("More than one loader selected, picked "..attrs.TOOLS_Name)
end
if attrs.TOOLST_Clip_Name[1] ~= nil then
   selLoaderPthRev = MapPath(attrs.TOOLST_Clip_Name[1])
   print("Selected loader clip path: "..selLoaderPthRev)
else
   print("Selected loader has no clip, exiting.")
   return
end
seqSrc = eyeon.parseFilename(selLoaderPthRev)
seqSrcSearch = oneUpDirectory(selLoaderPthRev)
print("File search path: "..seqSrcSearch)

-- search loaders for similar path
loadersToChangeCnt = 0
for i, item in loaderTable do
   if item.attrs.TOOLST_Clip_Name[1] then
      seqPickSearch = oneUpDirectory(MapPath(item.attrs.TOOLST_Clip_Name[1]))
      seqPick = eyeon.parseFilename(MapPath(item.attrs.TOOLST_Clip_Name[1]))
      if seqPickSearch == seqSrcSearch then
         --print("clip2replace: "..seqPick.CleanName)
         loaderTable[i].toChange = true -- mark as needed
         loaderTable[i].versionTbl = splitToPathAndVersion(seqPick.Path)
         loadersToChangeCnt = loadersToChangeCnt + 1
      end
   end
end

-- list one up directory
known = {} -- table of clips on harddrive
doDirectories(seqSrcSearch, "*.*")

-- Cleanup known
seqMax = 0
layerPlusPassMaxLn = 0
for i, v in known do
   --if v.category == "seq" then
   if true then
         -- first frame for loader
         seq = eyeon.parseFilename(v.file)
         if v.category == "seq" then
            known[i].file = seq.Path..seq.CleanName..string.format("%0"..seq.Padding.."d", v.numMin)..seq.Extension
         else
            known[i].file = v.file
         end

         -- find maximum length
         seqLen = v.numMax - v.numMin + 1
         if seqMax < seqLen then seqMax = seqLen end

         -- path divide to element and version
         fileVersionTbl = splitToPathAndVersion(seq.Path)
         known[i].versionTbl = fileVersionTbl




         -- name divide to layer and pass name
         nameParts = eyeon.split(seq.CleanName, ".")
         proj = "-"
         layer = "-"
         renderver = "-"
         pass = "-"

         proj = nameParts[1]
         layer = nameParts[2]
         renderver = nameParts[3]
         if table.getn(nameParts) >= 4 then pass = nameParts[4] end

         -- insert to array
         known[i].layer = layer
         known[i].pass = pass
         lpLn = string.len(layer) + string.len(pass)
         if layerPlusPassMaxLn < lpLn then layerPlusPassMaxLn = lpLn end

         if v.numSum <= 1 then
            known[i].category = "single"
         end
   end
end
print("File search done, found ".. tostring(table.getn(known)) .. " clips.")

findCorrespondingClipsPlus(known)
print("---------------------------------------\n")


-- find picked loaders in known clips
allLoadersFound = true
for j, pickedLoader in loaderTable do
   if pickedLoader.toChange then
      seq = eyeon.parseFilename(MapPath(pickedLoader.attrs.TOOLST_Clip_Name[1]))
      term = seq.Path..seq.CleanName..seq.Extension
      knownindex = -1
      for i,v in pairs(known) do
         if term == v.term then
            -- path, cleanname and extension matches
            knownindex = i
            break
         end
      end
      if knownindex == -1 then allLoadersFound = false end
      loaderTable[j].knownindex = knownindex
   end
end

if allLoadersFound == false then
   print("Didn't found files for some Loaders, exiting...")
   return
end


-- find highest version (with and withouth matching numbers) for each picked loader
-- fill
for j, pickedLoader in loaderTable do
   if pickedLoader.toChange then
      maxVersion = -1
      maxVersionPos = -1
      maxVersionMatching = -1
      maxVersionMatchingPos = -1

      corr = known[pickedLoader.knownindex].corresponding
      for i, tst in corr do
         -- set highest matching version
         if tst.version > maxVersion and not tst.numbersMatch then
            maxVersion = tst.version
            maxVersionPos = tst.pos
         end
         if tst.version > maxVersionMatching and tst.numbersMatch then
            maxVersionMatching = tst.version
            maxVersionMatchingPos = tst.pos
            maxVersion = tst.version
            maxVersionPos = tst.pos
         end
      end
      known[pickedLoader.knownindex].maxVersion = maxVersion
      known[pickedLoader.knownindex].maxVersionPos = maxVersionPos
      known[pickedLoader.knownindex].maxVersionMatching = maxVersionMatching
      known[pickedLoader.knownindex].maxVersionMatchingPos = maxVersionMatchingPos
   end
end

-- make list of versions available
versionList = makeVersionList(loaderTable, known)

-- find highest common version for all picked loaders
maxCommonVersion = -1
maxCommonVersionMatching = -1
for k, pickedVersion in versionList do
   verExistsForAll = true
   verExistsForAllandMatches = true
   for j, pickedLoader in loaderTable do
      if pickedLoader.toChange then
         corr = known[pickedLoader.knownindex].corresponding
         verExists = false
         verExistsAndMatches = false
         for i, tst in corr do
            if tst.version == pickedVersion then
               verExists = true
               if tst.numbersMatch then
                  verExistsAndMatches = true
               end
            end

         end
         if not verExists then
            verExistsForAll = false
         else
            maxCommonVersion = pickedVersion
         end
         if not verExistsAndMatches then
            verExistsForAllandMatches = false
         else
            maxCommonVersionMatching = pickedVersion
         end
      end
   end
end


------------------------------------------------------------------------------
-- UI

if maxCommonVersionMatching == -1 then mxCVMstr = "  (na)" else mxCVMstr = "  ("..tostring(maxCommonVersionMatching)..")" end
if maxCommonVersion == -1 then mxCVstr = "  (na)" else mxCVstr = "  ("..tostring(maxCommonVersion)..")" end

local toollist = iup.list{expand="HORIZONTAL", dropdown="NO", FONT = "lucida console::"}
local verlist  = iup.list{expand="NO", dropdown="NO", size=70, }

local ok = iup.button{title = "OK", size=90, expand="NO"}
local cancel = iup.button{title = "Cancel", size=90, expand="NO"}

local tgl_verhighestCommonMatchin = iup.toggle {title = "Highest Common Matching Version" .. mxCVMstr,  VALUE="ON",}
local tgl_verhighestCommon        = iup.toggle {title = "Highest Common Version" .. mxCVstr,            VALUE="OFF",}
local tgl_verhighestMatching      = iup.toggle {title = "Highest Matching Version",                     VALUE="OFF",}
local tgl_verhighest              = iup.toggle {title = "Highest Version",                              VALUE="OFF",}
local tgl_veruser                 = iup.toggle {title = "User Specified Version  (na)",                 VALUE="OFF",}
local radio_ver                   = iup.radio {iup.vbox {GAP="2", tgl_verhighestCommonMatchin, tgl_verhighestCommon, tgl_verhighestMatching, tgl_verhighest, tgl_veruser, EXPAND="NO"}}
frame_versionpick = iup.frame{GAP="2",radio_ver, title="Select Version(s)", MARGIN="10"}
frame_versionUsr = iup.frame{GAP="2",verlist, title="User Version:", MARGIN="10"}

-- globals .. :(
tgl_relativePaths         = iup.toggle {title = "Relative Paths", VALUE="ON",}
tgl_copyTrims         = iup.toggle {title = "Copy Trims", VALUE="OFF",}
vbox_opt =
   iup.vbox {expand="NO",
      tgl_relativePaths,
      tgl_copyTrims,
}
frame_options = iup.frame{GAP="2", vbox_opt,  title="Options:", MARGIN="10"}
hbox_topOther =
   iup.hbox {GAP="5",
      frame_versionUsr,
      iup.fill{size = "5"},
      frame_options,
}
hbox_top =
   iup.hbox {
      frame_versionpick,
      iup.fill{},
      hbox_topOther,
}

-- var for selected version
local usr_version = -1

local dlg = iup.dialog
{
   title = "3D - Raise Version",
   foreground = "YES",
   margin = "10x10",
   defaultenter = ok, defaultesc = cancel,
   border = "NO", minbox = "NO", maxbox = "NO", menubox = "NO", resize = "NO",
   bgcolor = "64 64 64", fgcolor = "192 192 192",

   iup.vbox
   {
      hbox_top,
      iup.fill{size=5},
      iup.label{title="Found Loaders With Available Versions:" },
      --iup.fill{size=5},
      toollist,
      iup.fill{size=5},
      iup.hbox
      {
         margin = "0x0",
         ok,   iup.fill{}, cancel,
      },
   },
}
iup.SetAttribute(dlg, "NATIVEPARENT", touserdata(fu:GetMainWindow()))
listing = makeListing(loaderTable, known, versionList)
UpdateList(toollist, listing)
UpdateVersionsAvailable(verlist, versionList)
tgl_veruser.title = "User Specified Version  (" .. versionList[1] .. ")"
usr_version = tonumber(versionList[1])



------------------------------------------------------------------------------
-- UI functions

function ok:action()

   if tgl_verhighestCommonMatchin.value == "ON" then
      mode = "maxCM"
      ver = maxCommonVersionMatching
   end
   if tgl_verhighestCommon.value == "ON" then
      mode = "maxC"
      ver = maxCommonVersion
   end
   if tgl_verhighestMatching.value == "ON" then
      mode = "maxM"
      ver = -1
   end
   if tgl_verhighest.value == "ON" then
      mode = "max"
      ver = -1
   end
   if tgl_veruser.value == "ON" then
      mode = "usr"
      ver = usr_version
   end

   changeLoaders(mode, ver, loaderTable, known)

   return iup.CLOSE
end

function cancel:action()
   return iup.CLOSE
end

function verlist:action(text, item, sel)

   usr_version = tonumber(text)
   tgl_veruser.title = "User Specified Version  (" .. text .. ")"
   return iup.DEFAULT
end

composition:Lock()
composition:StartUndo("3D Raise Version")

-- select picked loaders to show user what will be changed
flow = comp.CurrentFrame.FlowView
flow:Select()
for i, pickedLoader in loaderTable do
   if pickedLoader.toChange then
      flow:Select(loaderTable[i].tool)
   end
end

-- show ui
dlg:show()
verlist.selection = "1:1000"
status,err = pcall(iup.MainLoop)
dlg:destroy()


composition:Unlock()
composition:EndUndo(true)

if not status then
   print(err)
end


it will overwrite all loaders that have the exact same footage name. so it says

look at all loaders, for each of those, look at the footage name, does it match the footage name of the selected node, if it does make all the timings match.

So if you use the same footage somewhere else in the comp, but want that to be different timing, this script will mess that up and sync it, though I don't know a way around that. the whole idea is, sync all loaders that are using the same footage so all the timing matches. but for 99% of my work, this is what I want,

cheers,
Chris

Got it, thank you!

Awesome. This looks like it will solve one of the workflow items I am trying to resolve in another thread. (viewtopic.php?f=22&t=40817)

I am new to Fusion and I am still using the free version. Do I need to purchase Studio in order to use this script since it Python?

yes my understanding is you need studio to do scripting, though I haven't ever tried it in the free version,

You can run and use python and Lua in fusion (free version) but only scripts that you run from inside fusion.
With the studio version you can control fusion via python from outside/other programs

All the scripts here work in the free version

This is the sync Code, it's very straight forward, look at the active tool, get the clip name, look through all the other loaders, if they have the same name, make the settings match.

Hi Chris,
Is it possible to share the Updater code you are using as well?

I hacked a simple solution to updating my loaders based on the selected Loader. I don't know how to script so I may have extra lines in the code that are not needed.

I took Chris's sync script and stripped it down and told it to look for the word "update" in the comments sections of loaders. If it finds "update" then it syncs the loader clip. This works well though the idea could probably be developed to a greater degree.

No I just need to figure out how to modify the "hos_SplitEXR.eyeonscript" to include the comment "update" by default. I made a second script that syncs the comments in the meantime. Baby steps...

Code: Select all

#this will sync all loaders with the same clip based on matching comment
import os

tool = comp.ActiveTool
loaders = comp.GetToolList()
update = tool.Comments[1]
clip = tool.Clip[1]

comp.Lock() # Lock the comp so the GUI doesn't open up.
comp.StartUndo("LoaderSync")

for i in loaders.values():
    if i.GetAttrs()['TOOLS_RegID'] =='Loader':
        if i.Comments[1] ==update:
            print(i.Comments[1])
            i.Clip[1]=clip

comp.Unlock() # Lock the comp saver GUI doesn't open up.

comp.EndUndo(True)

I wish I would have found this EXR Updater one a few days ago... so much easier than what I was trying to do and written by someone who knew what they were doing.

http://timhlittle.prosite.com/100549/91 ... eon-fusion
