Imported FBX render with artifacts

Learn about 3D compositing, animation, broadcast design and VFX workflows.
  • Author
  • Message
Offline
User avatar

Adelson Munhoz

  • Posts: 282
  • Joined: Thu Mar 05, 2015 5:44 pm

Imported FBX render with artifacts

PostSat Jan 30, 2016 6:10 pm

I found a weird behavior when importing FBX files in Fusion.
I created a cylinder in Blender with 100 segments and exported it in FBX.
Then I imported it in Fusion.
I created a new cylinder with the same size and segment number in Fusion using the Shape3D tool.
I placed both side by side, added a directional light and rendered the result.

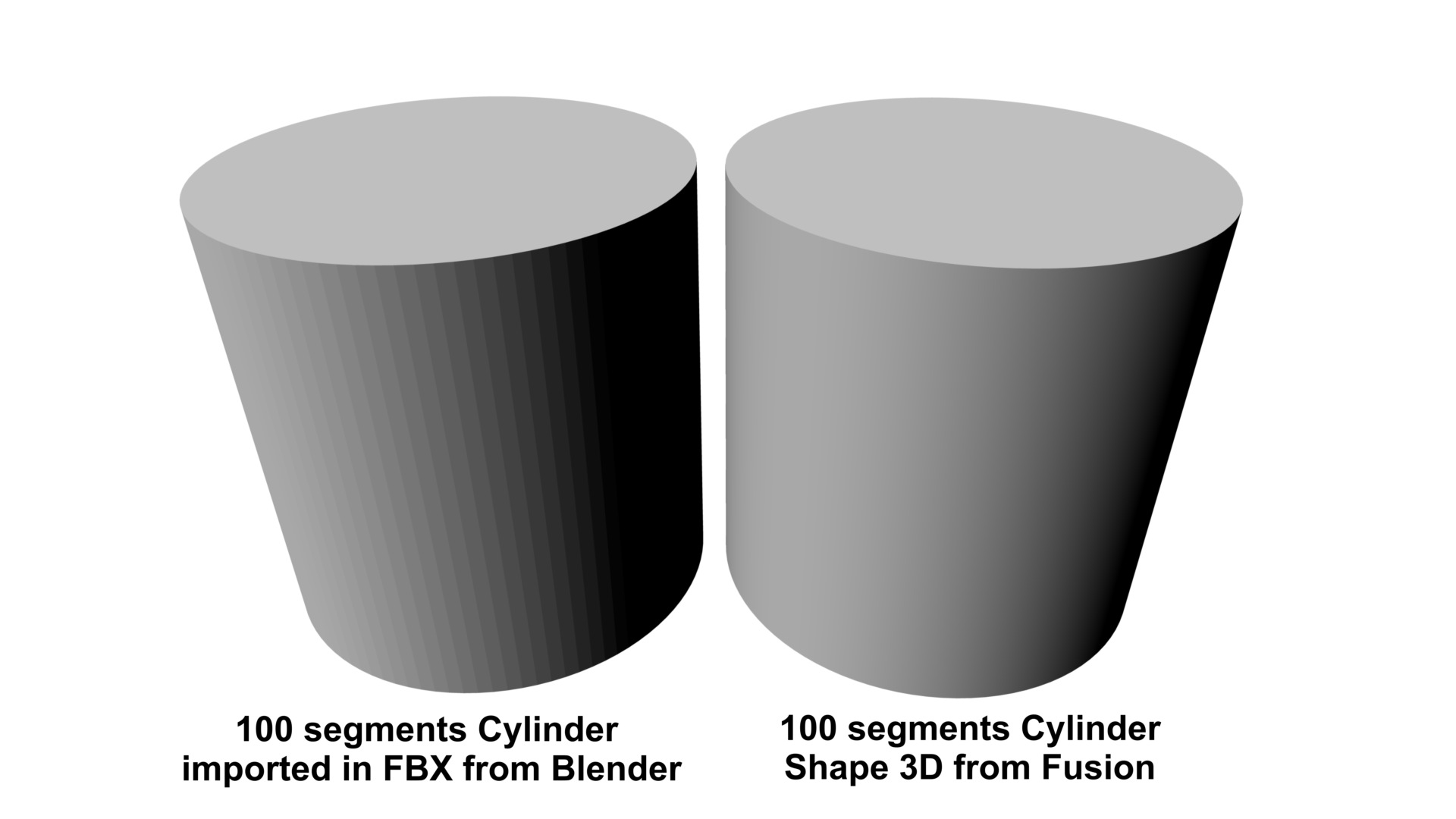

This is what I got:



The FBX rendered with strong banding artifacts, while the Shape3D rendered smoothly
RGBA SuperSampling is ON

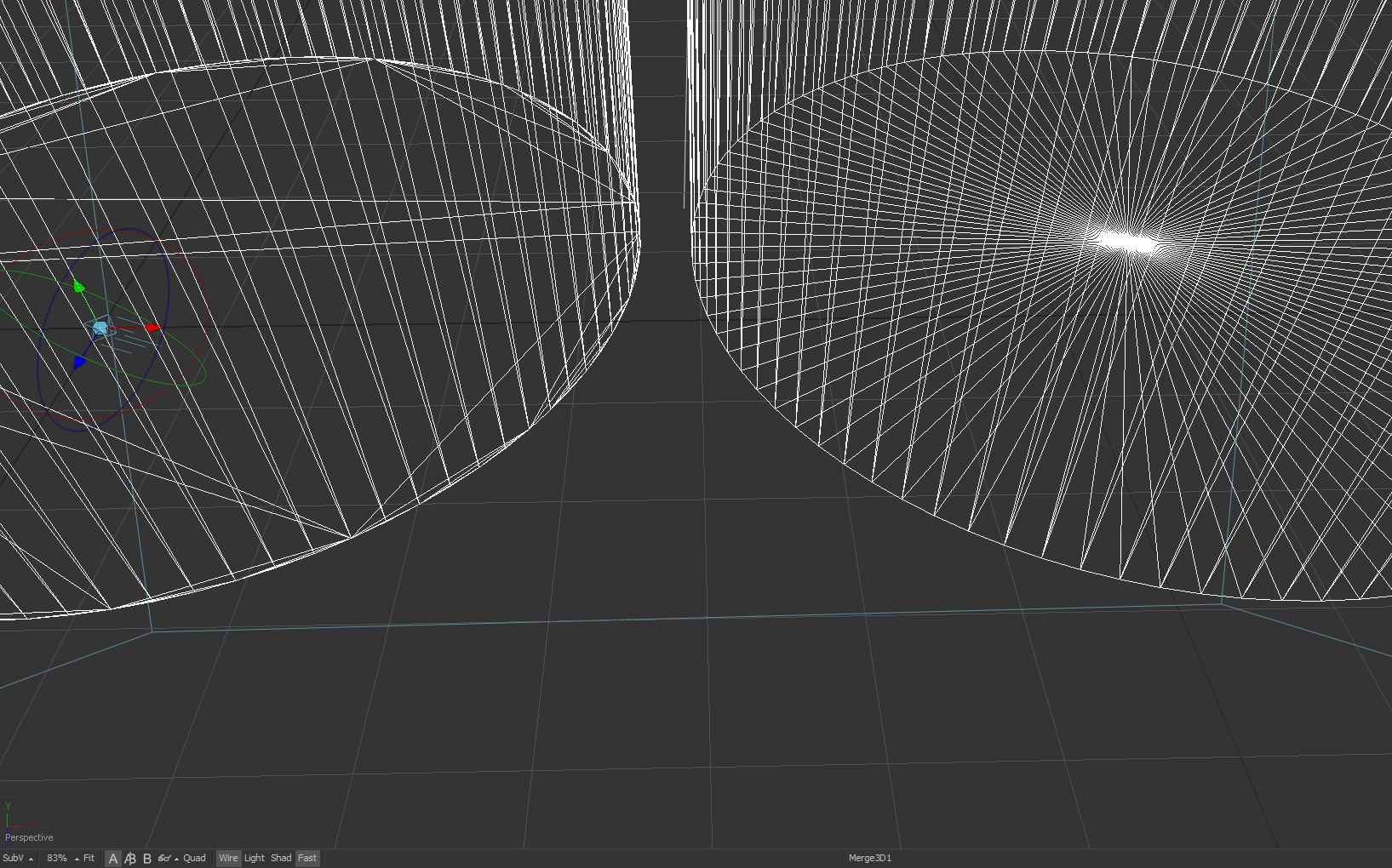

It seemed that the segment number of the imported FBX was lower than the Shape3D, but the wireframe image shows it is not the case:



The triangulation of both is slightly different but it is not likely to be the problem.
Any ideas of what is going on?
Davinci Studio | Windows 11 | AMD Ryzen 5950X | 2x Radeon RX 6750XT | 64GB RAM
Offline

Sander de Regt

  • Posts: 4132
  • Joined: Thu Nov 13, 2014 10:09 pm

Re: Imported FBX render with artifacts

PostTue Feb 02, 2016 1:03 pm

The cilinder in Blender isn't smoothed. That's the basic problem.
Sander de Regt

ShadowMaker SdR
The Netherlands
Offline
User avatar

Adelson Munhoz

  • Posts: 282
  • Joined: Thu Mar 05, 2015 5:44 pm

Re: Imported FBX render with artifacts

PostTue Feb 02, 2016 4:01 pm

Hi Sander, thanks for the help.

You are right. Turning on the shade smooth on Blender prior to export the FBX solved the issue.

However I manage to get rid of the artifacts inside Fusion without re-exporting the FBX from Blender.

I used the ReplaceNormals3D tool and choose Normals>Recompute>Always

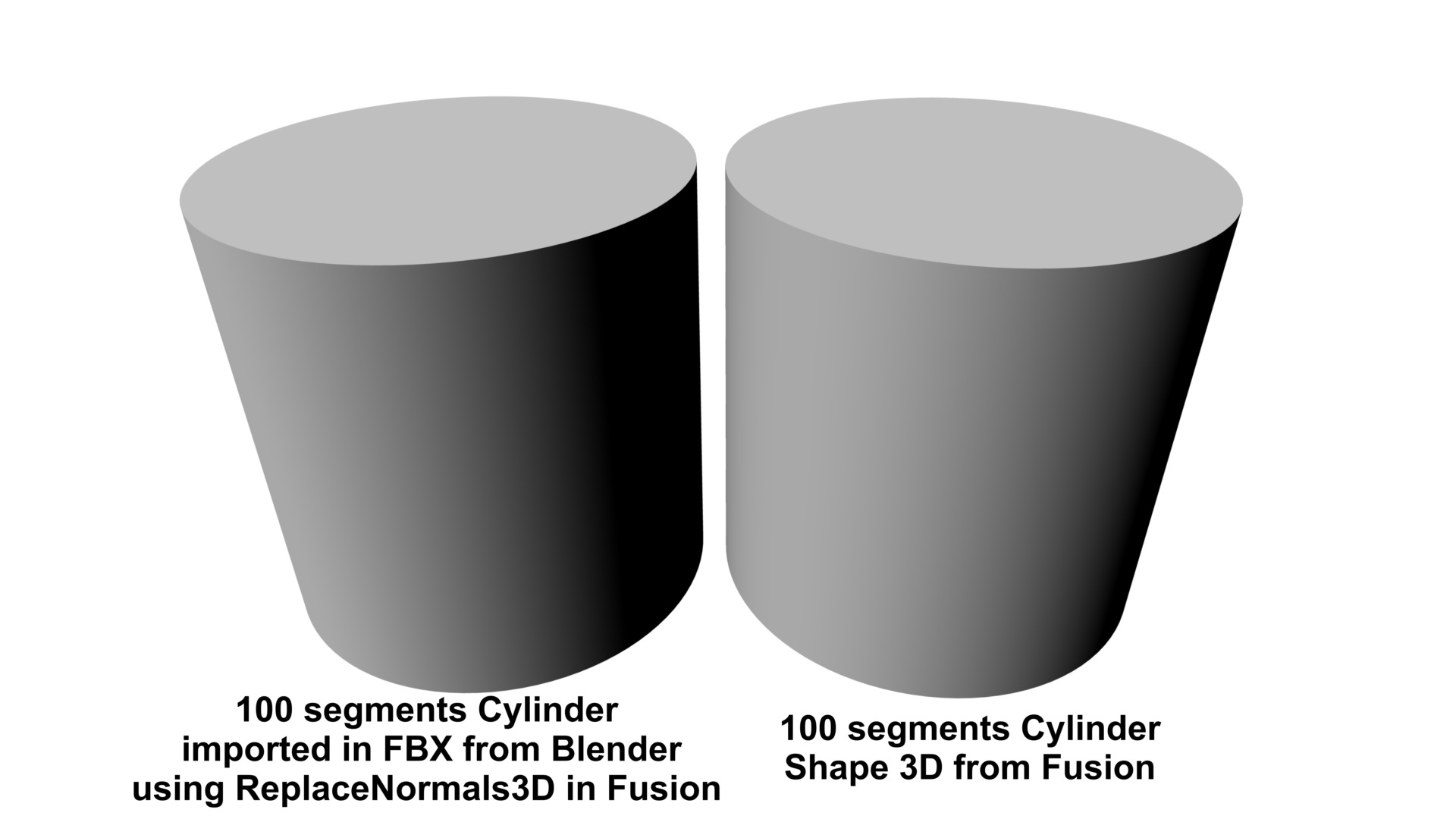

There is the result:



Hope it helps someone.
