Decklink Mini Monitor 4K blackouts

PostFri Jul 22, 2022 9:12 am

I have a Decklink Mini Monitor 4K connected to an Asus PA32UCX-K monitor. When using this setup with Davinci Resolve (both 17 and 18), I sometimes get blackouts on the screen for a few seconds before it comes back. This seems to happen only when I actually hit play, almost never when it's paused and just displaying a still image. If I'm in HDR mode, when the picture comes back from blackout, it displays the message "HDR ON" like this particular monitor always does when the signal changes. I don't know if that helps pinpoint it.

Anyone had similar problems to this?
Offline

Darsana

  • Posts: 5
  • Joined: Wed Dec 07, 2022 11:36 pm
  • Real Name: JONGSUNG KIM

Re: Decklink Mini Monitor 4K blackouts

PostWed Dec 07, 2022 11:37 pm

I have suffered same problem. my monitor is PA32UCG-K. did you solve the problem?
Offline

theextrabyte

  • Posts: 14
  • Joined: Thu Apr 11, 2019 3:13 pm
  • Real Name: rob trombino

Re: Decklink Mini Monitor 4K blackouts

PostFri Feb 17, 2023 12:39 am

Having similar and worse issues. I have it installed on a high end Windows workstation. have installed this in three different slots . . . x16, x8 and x4. They all do the same thing. Blackouts, crazy full screen distortion with green pink stripes, glitching bars, etc., have installed 4 different versions of the software, have tried every conceivable setting in both the desktop software and Resolve. If I reboot the computer once or twice, it comes back and is usable, but when I boot up the next day, it starts all over again. WTF!!!

My monitor id PA32UCR which has no issues with decklink HD, so it's definitely the card.
Offline

shadewind

  • Posts: 116
  • Joined: Tue Jan 19, 2021 3:30 pm
  • Real Name: Emil Sahlén

Re: Decklink Mini Monitor 4K blackouts

PostSun Sep 17, 2023 6:19 pm

For those still struggling with this, it was solved by using an HDMI splitter between the monitor and the Decklink card. No issues since.
Offline

Darsana

  • Posts: 5
  • Joined: Wed Dec 07, 2022 11:36 pm
  • Real Name: JONGSUNG KIM

Re: Decklink Mini Monitor 4K blackouts

PostSat Sep 23, 2023 6:13 am

I solved the problem throwing decklink to the trash can and buying ultrastudio…
Offline

BoazHeller

  • Posts: 2
  • Joined: Thu Sep 28, 2023 2:38 pm
  • Real Name: Boaz Heller

Re: Decklink Mini Monitor 4K blackouts

PostThu Sep 28, 2023 2:42 pm

Hellow Shadewind, great you fixed it.
You say that you fixed it "by using an HDMI splitter between the monitor and the Decklink card".
Was that a 2 x HDMI in and one out or a 1 x HDMI and 2 out?
Offline

BoazHeller

  • Posts: 2
  • Joined: Thu Sep 28, 2023 2:38 pm
  • Real Name: Boaz Heller

Re: Decklink Mini Monitor 4K blackouts

PostSun Oct 01, 2023 6:25 pm

I have had the intermitent balckout problem when playing UHD at 25fps out of a Decklink Mini Monitor 4K into a BenQ SW271C monitor. I just solved it by feeding a Blackmagic Micro Converter SDI/HDMI 12G from the SDI output of the decklink and using the converters HDMI output to feed my monitor. Problem solved.
Offline

SandroSchreiber

  • Posts: 103
  • Joined: Wed Dec 12, 2018 7:01 am
  • Real Name: Sandro Schreiber

Re: Decklink Mini Monitor 4K blackouts

PostFri Feb 23, 2024 5:07 pm

I have the same problem. Decklink Mini Monitor 4K and Asus PA32DC. Blackouts of a few seconds when I play UHD SDR material at 25fps. Desktop video on version 12.8.1 (the latest).
Does it make any sense that the problem is solved by a splitter? I don't really want to have to buy additional hardware unnecessarily and hang it in between...
Resolve Studio 18.6.6 | Resolve Mini Panel | Win11 23H2
GeForce RTX4090 (555.85 studio driver) | DeckLink Mini Monitor 4K, Desktop Video 12.9
Offline
User avatar

Uli Plank

  • Posts: 22121
  • Joined: Fri Feb 08, 2013 2:48 am
  • Location: Germany and Indonesia

Re: Decklink Mini Monitor 4K blackouts

PostSat Feb 24, 2024 3:30 am

A cheap splitter has solved it here too. Worth a try before ditching the card or the monitor ;-)
Now that the cat #19 is out of the bag, test it as much as you can and use the subforum.

Studio 18.6.6, MacOS 13.6.6, 2017 iMac, 32 GB, Radeon Pro 580
MacBook M1 Pro, 16 GPU cores, 32 GB RAM and iPhone 15 Pro
Speed Editor, UltraStudio Monitor 3G
Offline

SandroSchreiber

  • Posts: 103
  • Joined: Wed Dec 12, 2018 7:01 am
  • Real Name: Sandro Schreiber

Re: Decklink Mini Monitor 4K blackouts

PostFri Mar 15, 2024 7:58 am

The splitter didn't do the trick for me. It seems to be even worse now. But it's a very old model I borrowed for testing.
Could someone guide me to a specific model that worked for you?
I still find it very strange that this is necessary at all...
Resolve Studio 18.6.6 | Resolve Mini Panel | Win11 23H2
GeForce RTX4090 (555.85 studio driver) | DeckLink Mini Monitor 4K, Desktop Video 12.9
Offline

matthieuvanier

  • Posts: 4
  • Joined: Fri Apr 19, 2024 3:08 pm
  • Real Name: Matthieu Vanier

Re: Decklink Mini Monitor 4K blackouts

PostFri Apr 19, 2024 3:11 pm

Uli and Shadewind, would you mind sharing which switcher you used for this.
I have the same problem and I would prefer not going through a bunch of different switcher.
Thank you!
Offline
User avatar

Uli Plank

  • Posts: 22121
  • Joined: Fri Feb 08, 2013 2:48 am
  • Location: Germany and Indonesia

Re: Decklink Mini Monitor 4K blackouts

PostSat Apr 20, 2024 2:51 am

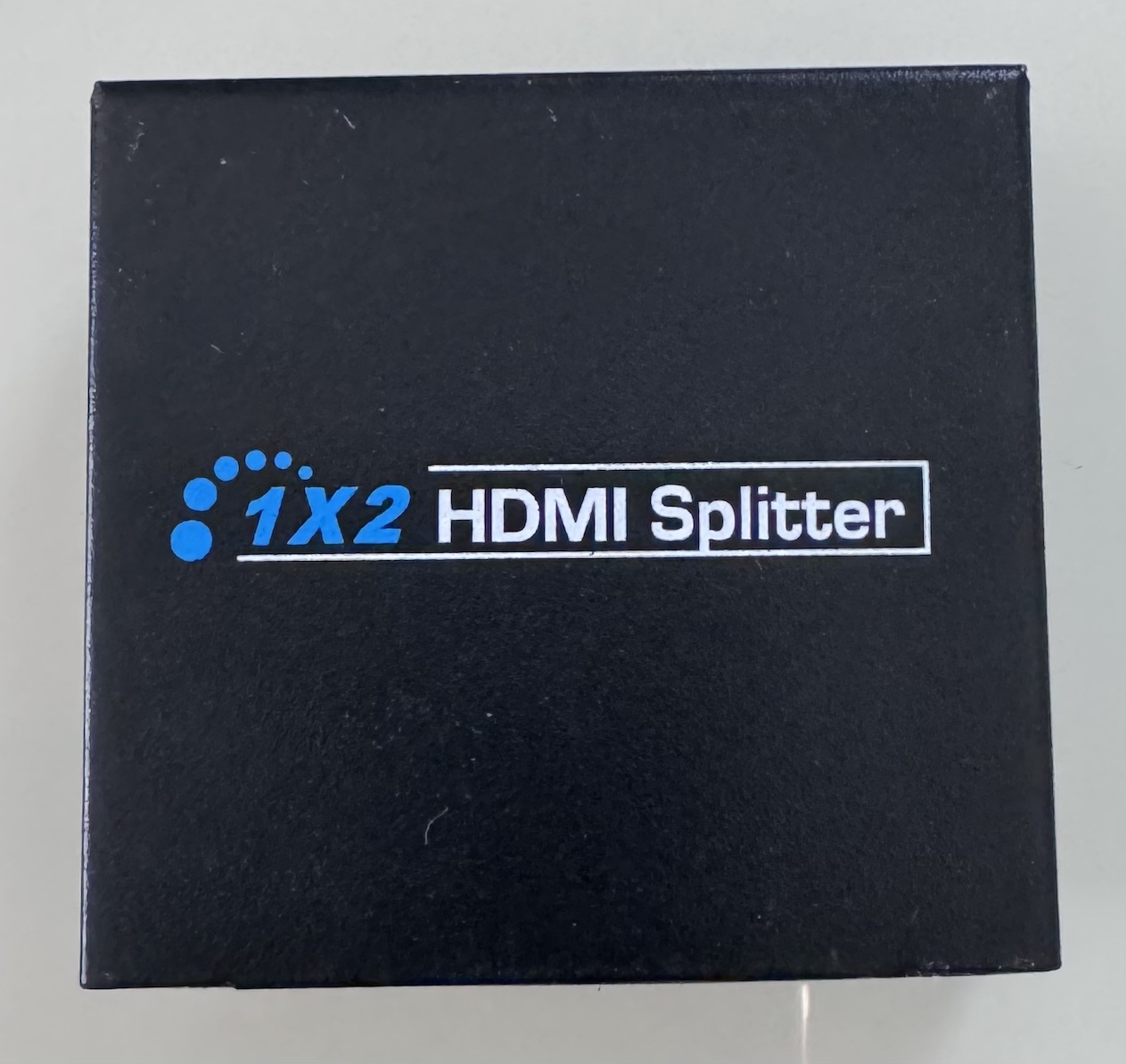

I doubt it'll be helpful, since I bought it 2 or 3 years ago and it's one of those Chinese no-brand ones and they change the look all the times. BTW, it's a splitter, not a switcher. Relatively sturdy, in a metal case.
Anyway, here you go:
Now that the cat #19 is out of the bag, test it as much as you can and use the subforum.

Studio 18.6.6, MacOS 13.6.6, 2017 iMac, 32 GB, Radeon Pro 580
MacBook M1 Pro, 16 GPU cores, 32 GB RAM and iPhone 15 Pro
Speed Editor, UltraStudio Monitor 3G
Offline

matthieuvanier

  • Posts: 4
  • Joined: Fri Apr 19, 2024 3:08 pm
  • Real Name: Matthieu Vanier

Re: Decklink Mini Monitor 4K blackouts

PostMon Apr 22, 2024 1:27 pm

Thank you!
Sorry you are right. I "switched" the two in my head while writing the post. :roll:
Just wanted to know what cheap meant for you as it isn't always the same for everyone but glad it is working for you. Will give one of those a try and see!
Offline
User avatar

Uli Plank

  • Posts: 22121
  • Joined: Fri Feb 08, 2013 2:48 am
  • Location: Germany and Indonesia

Re: Decklink Mini Monitor 4K blackouts

PostTue Apr 23, 2024 1:25 am

The one I own is actually still available, and it's only 5 bucks here in SE-Asia.
Now that the cat #19 is out of the bag, test it as much as you can and use the subforum.

Studio 18.6.6, MacOS 13.6.6, 2017 iMac, 32 GB, Radeon Pro 580
MacBook M1 Pro, 16 GPU cores, 32 GB RAM and iPhone 15 Pro
Speed Editor, UltraStudio Monitor 3G
Offline

SandroSchreiber

  • Posts: 103
  • Joined: Wed Dec 12, 2018 7:01 am
  • Real Name: Sandro Schreiber

Re: Decklink Mini Monitor 4K blackouts

PostTue Apr 23, 2024 6:23 am

Have you checked the HDMI version that the splitter supports?
I mean the splitter should also support 4K and 10bit, otherwise the signal will be degraded. Or am I wrong?
If the second output of the splitter is not needed, would a repeater possibly also work? Unfortunately, I still haven't got round to testing it. The last splitter didn't solve the problem for me, I think I'll try a repeater. Any thoughts on that?
Resolve Studio 18.6.6 | Resolve Mini Panel | Win11 23H2
GeForce RTX4090 (555.85 studio driver) | DeckLink Mini Monitor 4K, Desktop Video 12.9
