Micro converter HDMI to SDI horizontal tearing

PostTue Nov 10, 2020 5:26 pm

I am having an issue with all three of my For-A 110 switchers and the Black magic micro converters on my multi-viewer output. The isssue is a horizontal tear through the output that moves around and I have narrowed the issue to the micro converter. I am on the current firmware version for the micro converter and it would be an issue accept for the fact that I am using a black magic smartview for my multi-view monitor that only takes SDI in.

Looking to see if anyone has had similar issues any help would be greatly appreciated.
Attachments

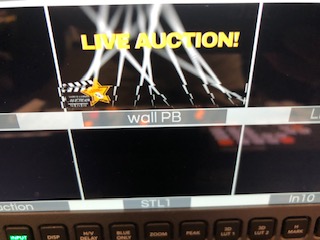

Tearing .jpg
Tearing .jpg (100.03 KiB) Viewed 930 times

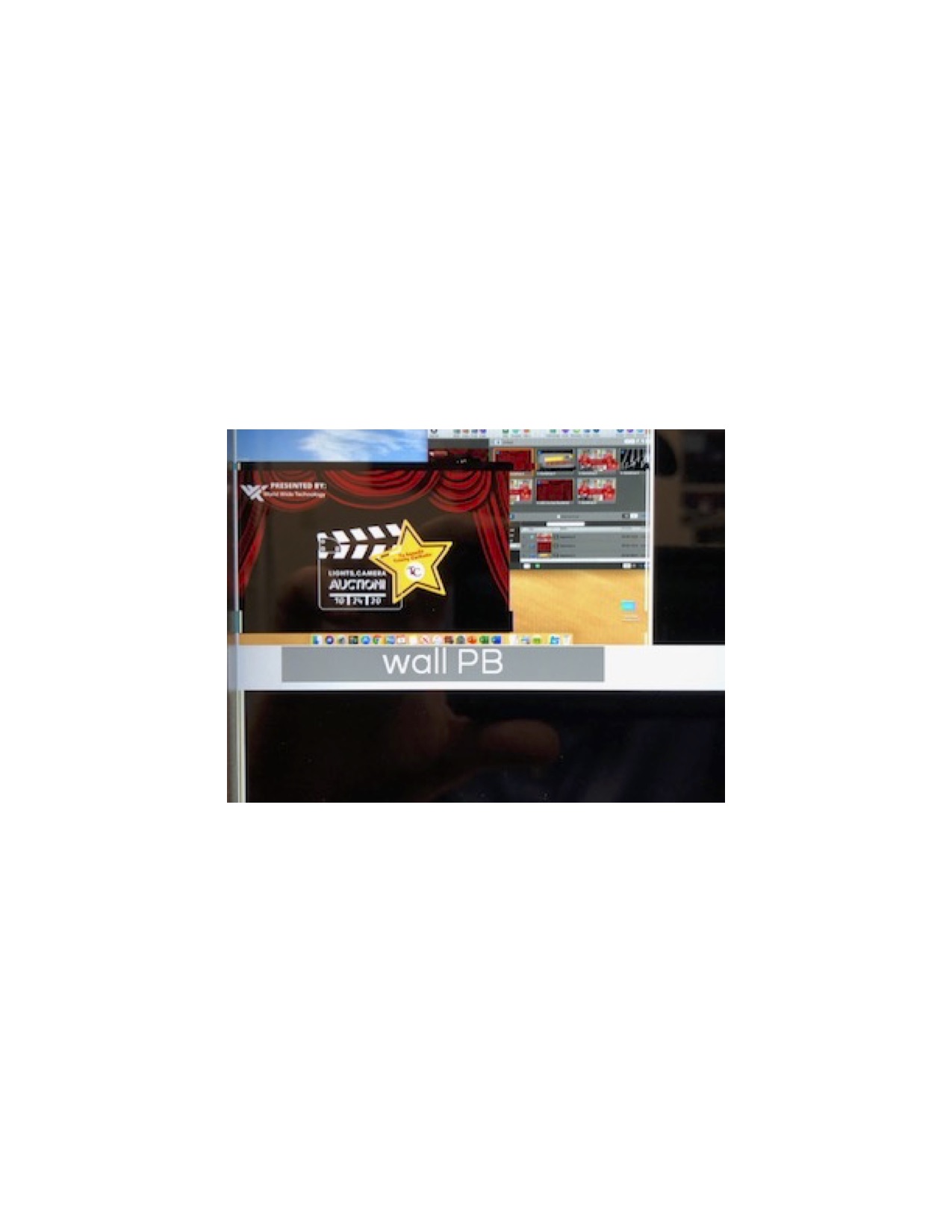

Tearing  2.jpg
Tearing 2.jpg (25.9 KiB) Viewed 930 times
Offline

chlowden

  • Posts: 174
  • Joined: Tue May 15, 2018 2:57 pm
  • Real Name: christopher lowden

Re: Micro converter HDMI to SDI horizontal tearing

PostSat Feb 22, 2025 7:57 am

I have the same issue but the source is my portable pc. The source is HDMI HD 1920 and the output SDI HD1920 25p
