Conectivity issue with atem tv studio hd / atem mini / other

PostFri Mar 14, 2025 7:52 pm

Hy!

I just set up RIG for recording live sessions, but i have problem with signal or conectivity.
I use Atem tv studio hd (8 inpusts, 4 hdmi + 4 sdi) + atem recorder. this is working well, now that i bought right sdi cables to properly connect.
However it seem i cant connect other switcher, to upgrade input possibilyties... Such as: i want to connect atem mini pro (4 hdmi inpusts + 1 hdmi ouput) to one of the inputs of the tv studio hd - in my opinion that should work nicely, but i dont get any signal...
Also had one LIVEPRO L1/L2 form Feelworld and it doesnt work also.
Am i missing something?
I tryed to connect pc/laptop throu hdmi to one of the inputs od the tv studio, and i didnt get any signal also.
All 3 are workih ok,l when i connect directly to one of the hdmi input of lcd tv for example...
Why i dont get signal to atem tv studio hd?

Thank you for the answers... ;)

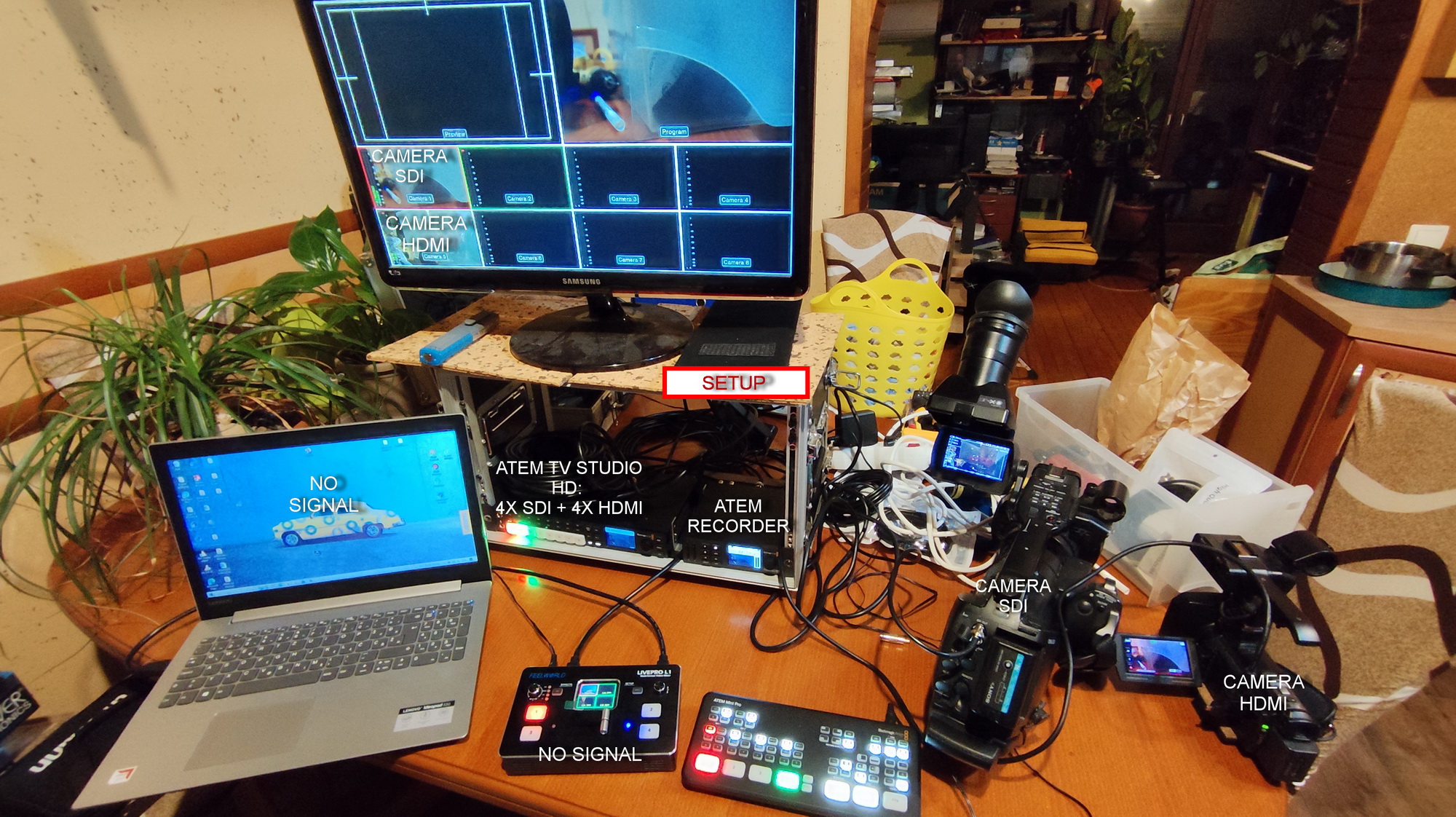

Attachments
SETUP FORUM 1.jpg
MY SETUP
SETUP FORUM 1.jpg (853.71 KiB) Viewed 1199 times
Offline
User avatar

Roman Pytkin Pekarek

  • Posts: 2671
  • Joined: Tue Oct 30, 2012 1:11 pm
  • Location: SVK

Re: Conectivity issue with atem tv studio hd / atem mini / o

PostSat Mar 15, 2025 12:31 am

TVS need all inputs in selected resolution and fps .. WHat is your serut of TVS and MINI ?
http://audioatem.com
http://tally.pytkin.sk
http://www.stonepp.tv
http://www.media-planet.sk
Offline

DonDamjano

  • Posts: 2
  • Joined: Fri Mar 14, 2025 7:26 pm
  • Real Name: Don Damjano

Re: Conectivity issue with atem tv studio hd / atem mini / o

PostSat Mar 15, 2025 6:39 pm

yes...that is it.... i just got this info from a friend today, and it works. .. i just needed to adjust the same framerate and resolution... thnx... ;)
