Double PIP with atem 1 m/e 4k

PostMon Jan 15, 2018 8:01 pm


Hello all,
I was searching for a solution to have a double pip with my Atem 1 m/e 4k without using more equipment. since you can only have 1 DVE with the atem 1 m/e 4k.
Cropping camera 1, and DVE on camera 2 was a solution I saw a lot on the internet, but I needed to see the full view of both sources.

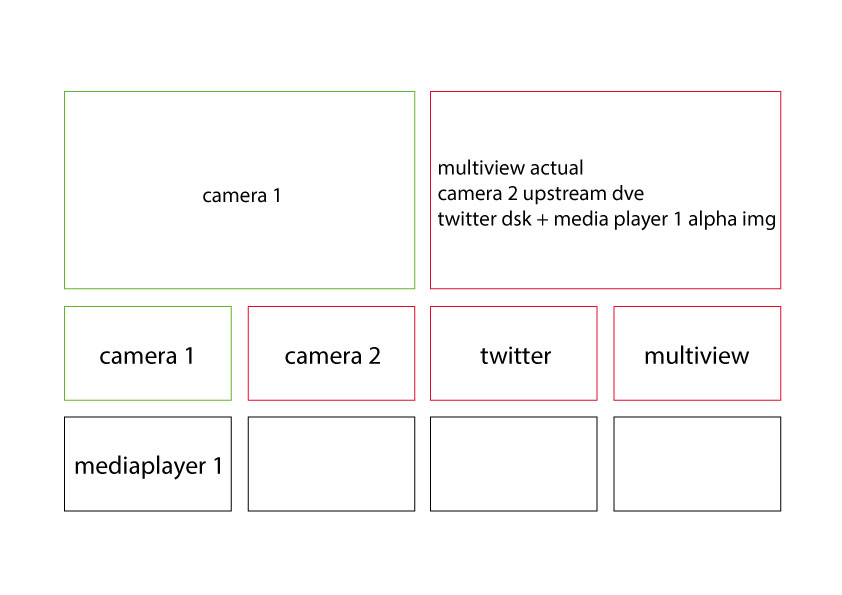

After braining I came up with a solution where I use the SDI multiview as source and use a overlay with a alpha mask to hide te rest of the multiview. With dve I pip the second camera and now I have two pips with my Atem 1 m/e. :D
Offline

MambaFiber.com

  • Posts: 833
  • Joined: Fri Aug 02, 2013 5:26 pm
  • Location: SLC, UT

Re: Double PIP with atem 1 m/e 4k

PostTue Jan 16, 2018 3:38 am

that's a cool idea, as long as you accept giving up the ability to preview anything since your PVW window is on air. we have used an external MV unit (decimator dmon-quad) to accomplish a similar goal-it's almost as good as the super source on the 2me for only $300.
Greg Bellotte - owner
MambaFiber.com
FaceBook.com/MambaFiber
Offline

Ian Morrish

  • Posts: 580
  • Joined: Sun Jan 18, 2015 9:24 pm
  • Location: New Zealand

Re: Double PIP with atem 1 m/e 4k

PostTue Jan 16, 2018 5:21 am

The only other way I have done it (same can be done on TVS HD), is to use a Wipe from top left with cam 1 in Preview and Twitter input on program, then USK on-air with DVE positioned correctly for cam 2.
Disadvantage with this is cam 1 shot has to be framed with subject in top/left 1/4 of camera shot, but you can change the aspect ratio of the wipe pattern (would give you a sideways T split of the program screen.
Good thing with using DVE is you can make cam 2 "fly" to full screen rather than just a cut.
Regards,
Ian Morrish
Video Integrated Scripting Environment
(Windows PowerShell with ATEM driver + more)
https://ianmorrish.wordpress.com
