Is it possible to stabilize all four of these corners?

I'm wondering if I can stabilize ALL four corners of these printouts that I turn into animation. As you can see, I can only do two corners which works for the most part but it would be a dream if I could lock down all four of them to get the image as stable as possible.

I stabilized what you see here in After Effects, (just the two corners) but I feel like there is a better way in fusion.

I should be able to lock down all four corner tracker points somehow correct?



https://vimeo.com/1093825876/835346e583?share=copy

Yes. You could apply planar tracker with as many points as it can get to track. I gave it a quick try, and this is what I got.

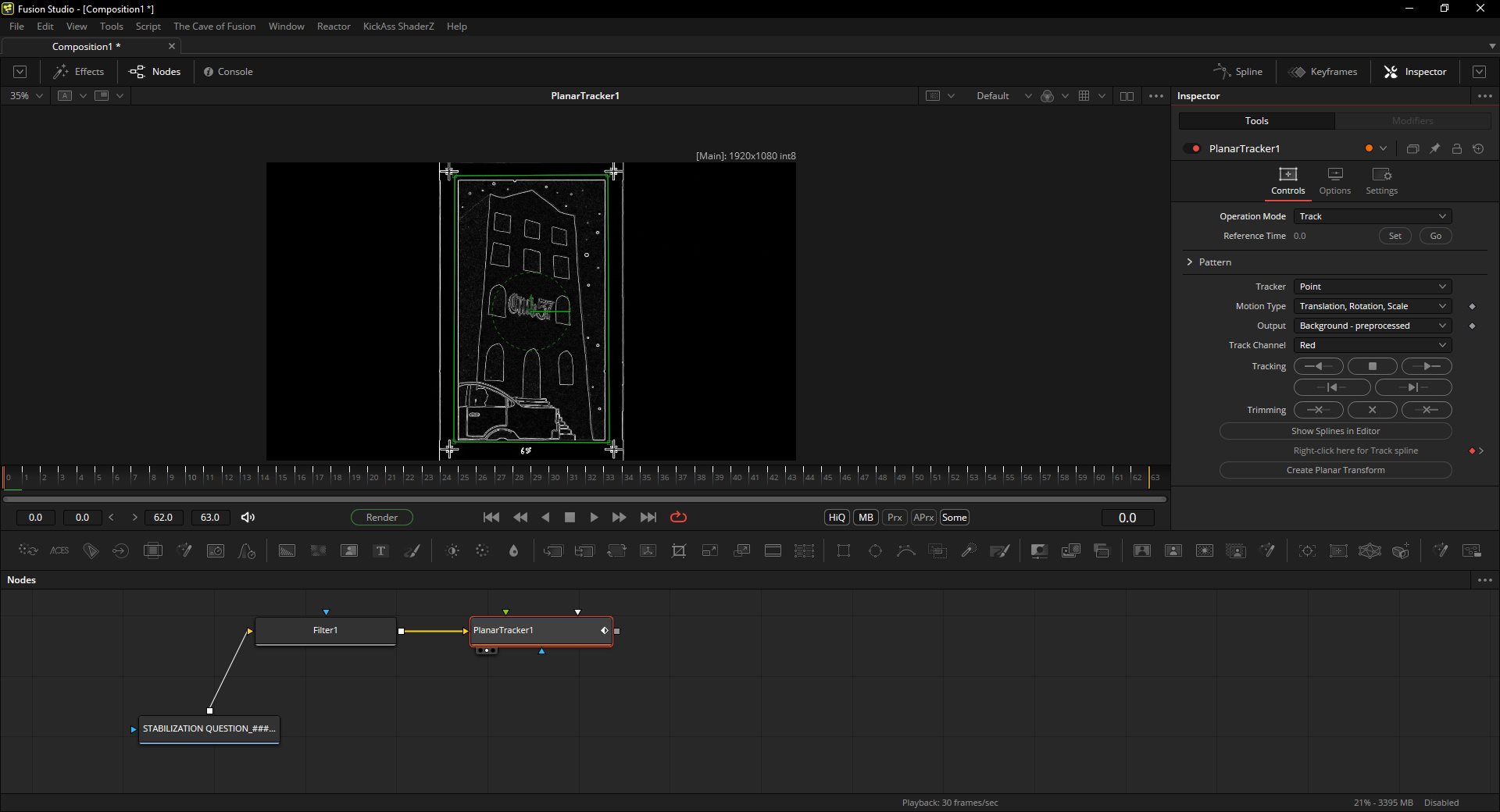

Essentially I use planar tracker set to translation, rotation and scale. Points. Blue channel.

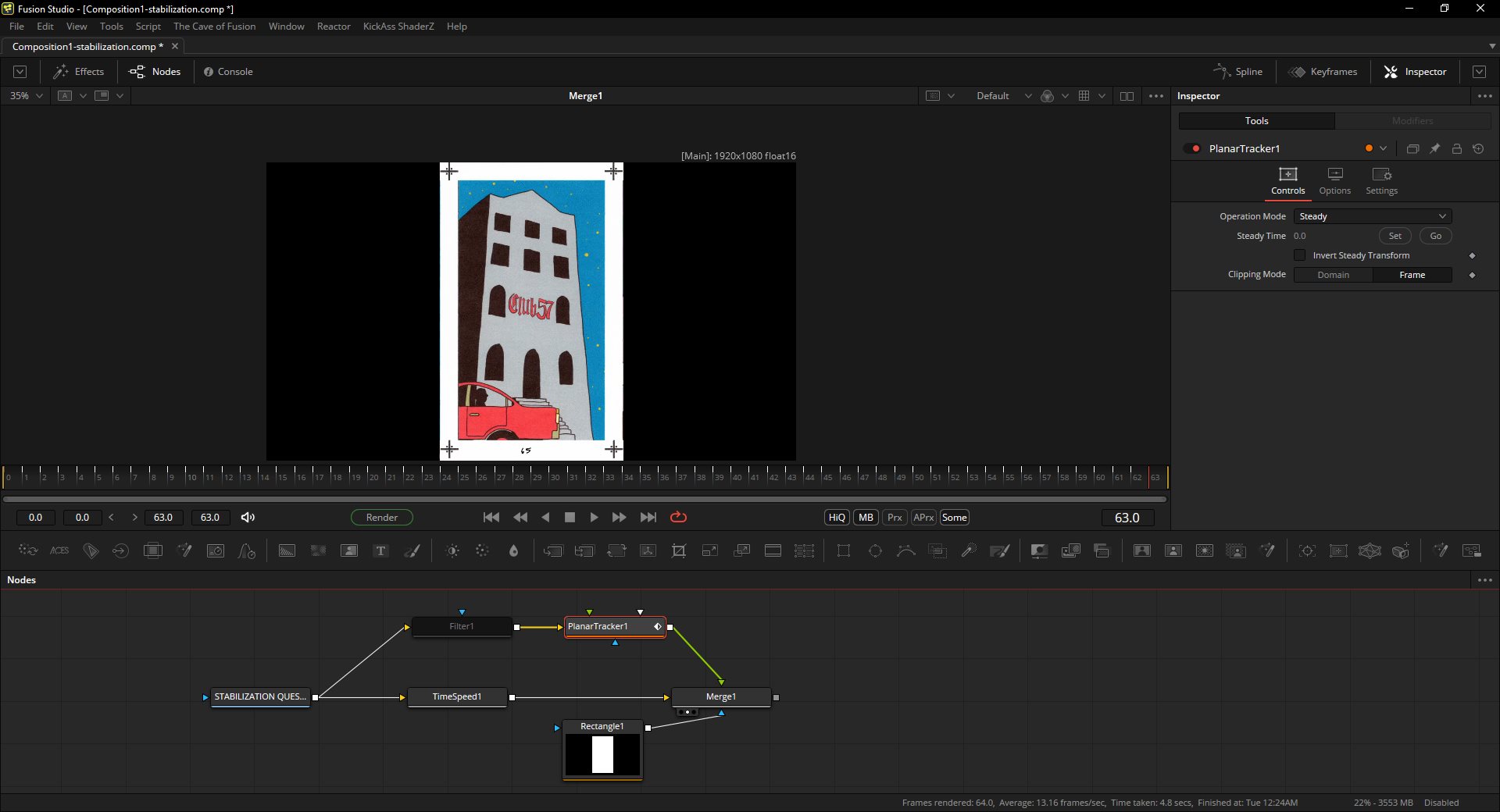

And than after tracking I set it to steady to lock it down.

Because there seems to be some differences between surrounding frame and image I freeze frame the whole image the outer portions.



Its not 100% steady but you could tweak it some more if you put some time into it.

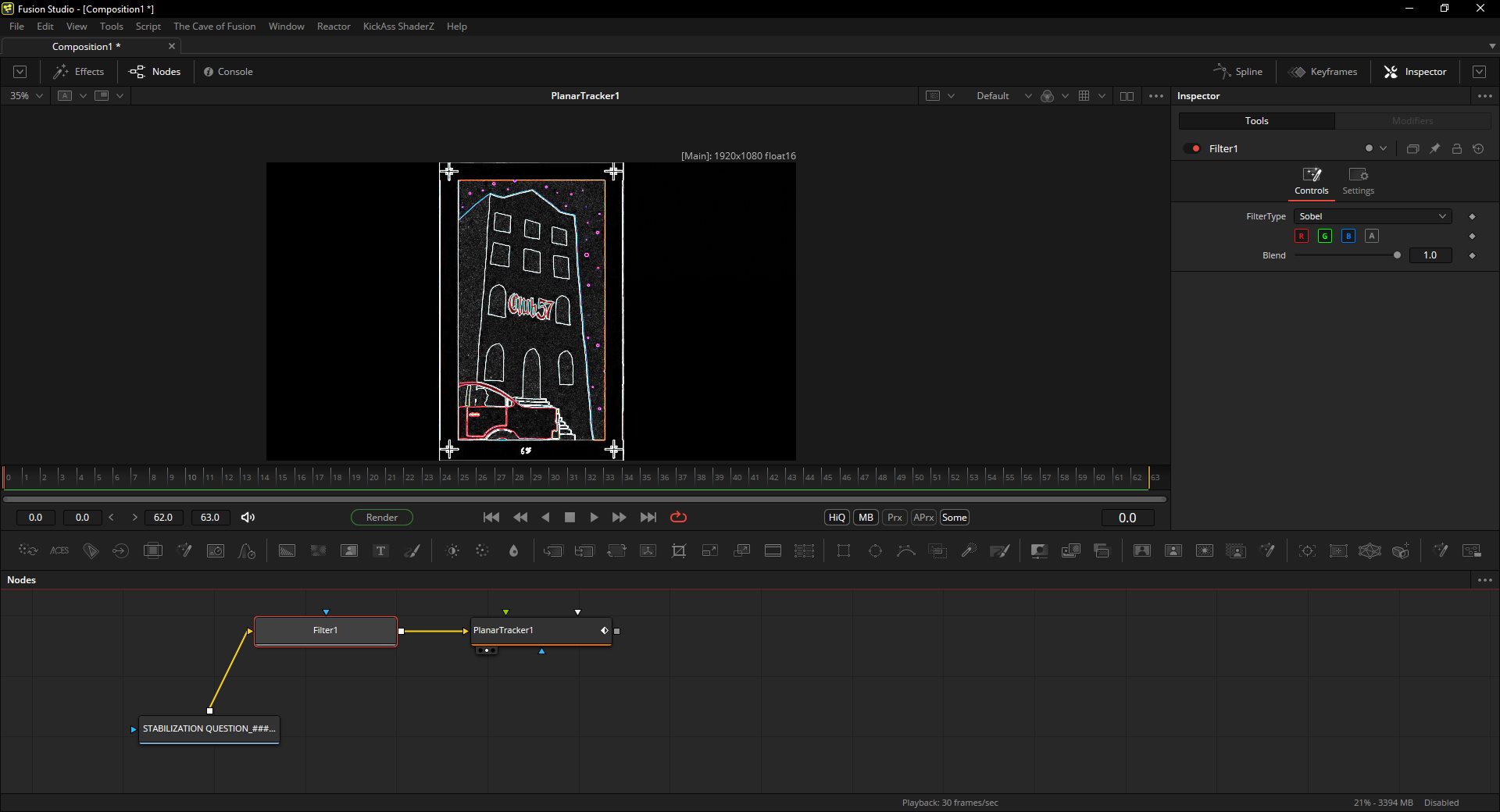

I also tried to use filter tool set to sobel for less distractions for the tracker.


Wow that is EXACTLY what I needed. And incredible work. I appreciate you so much!

Wow that is EXACTLY what I needed. And incredible work. I appreciate you so much!

No problem.

I can only do two corners

Why is that? I missed the part explaining why you can only do two.

I can only do two corners

Why is that? I missed the part explaining why you can only do two.

Haha, so did I; I thought he was about to explain it later on but no
